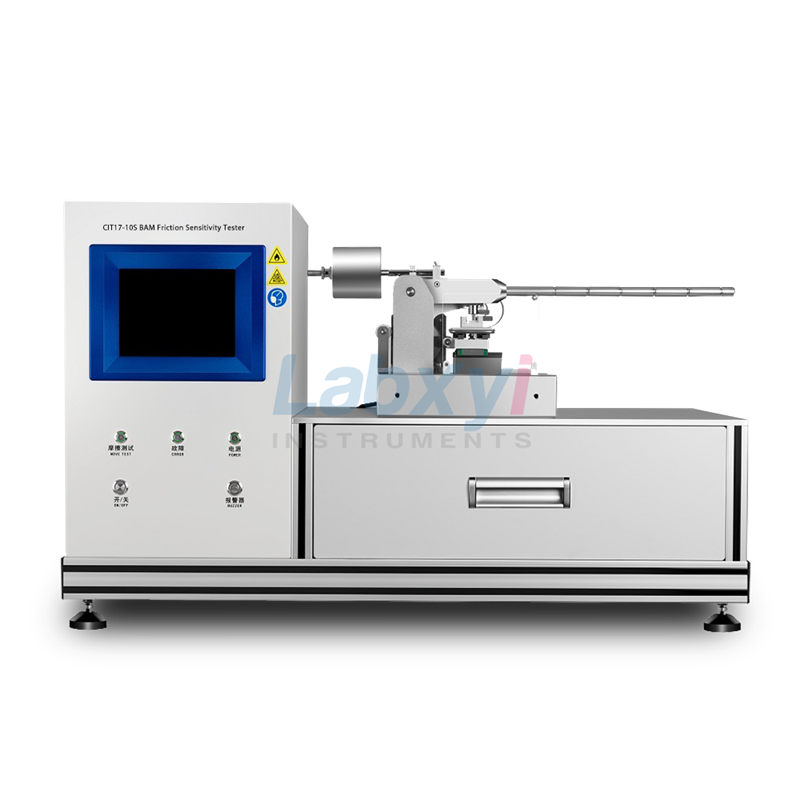

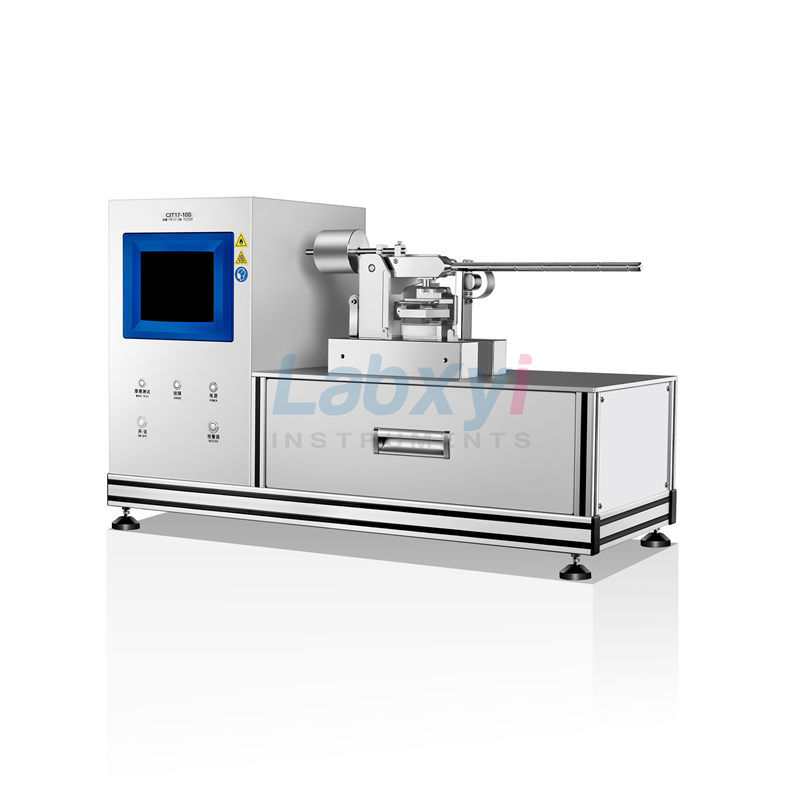

CIT17-10S BAM friction sensitivity tester is used to measure the sensitivity of the friction material stimuli and to determine if the material is too dangerous to transport its test form. The instrument complies with the United Nations “on the Transport of Dangerous Goods Recommendations on Tests and Criteria Manual” (hereinafter referred to as “test and Standards Manual”) 13.5.1 Test 3b (a) BAM friction instrument.

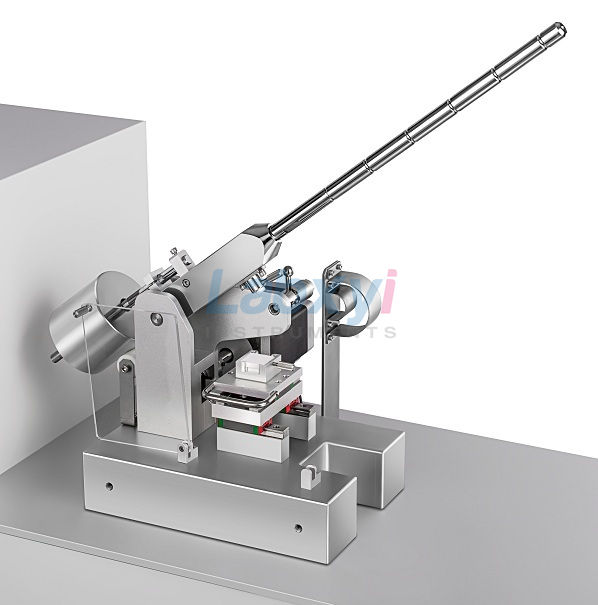

CIT17-10S BAM Friction Sensitivity Tester equipped with a friction device, there is weight in the load arm, so that the magnet attached to the specimen, porcelain automatically moves back and forth, human observation the phenomenon of test sample, to determine the outcome depends on whether “explosion”, “No response ” and “decomposition”.
Product Features
Embedded processor, Windows CE operating system;

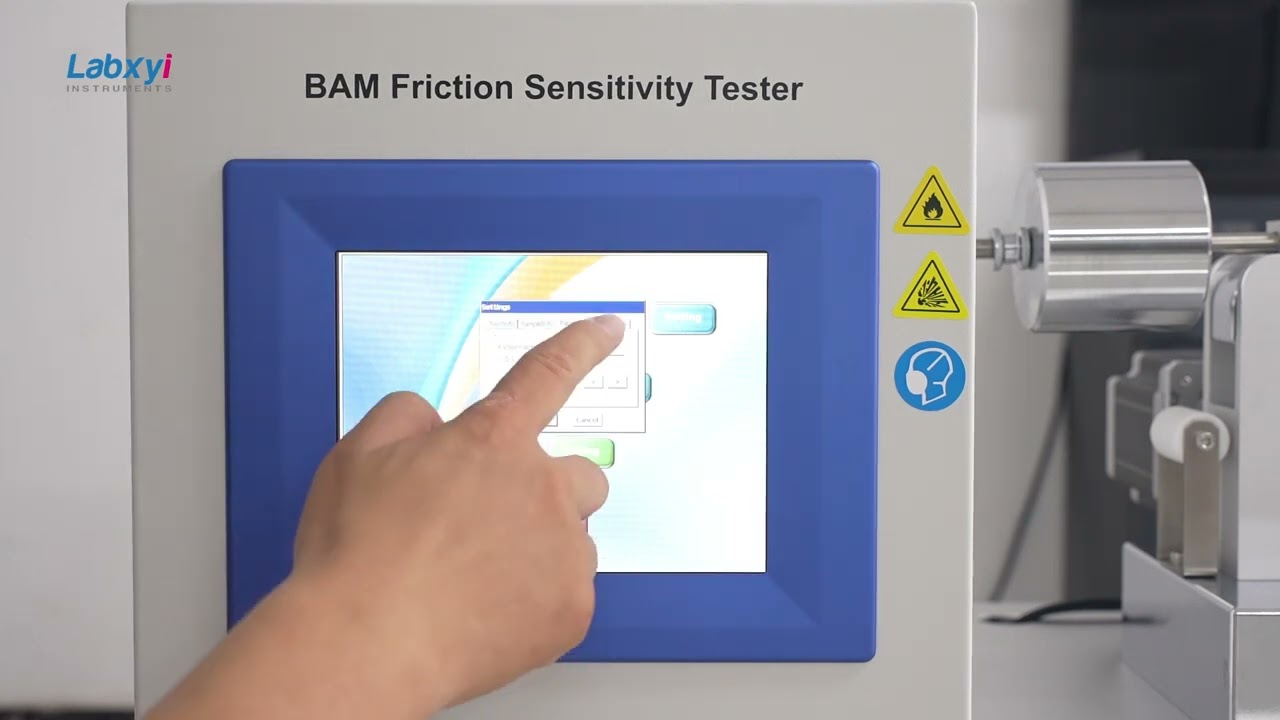

8-inch LCD touch screen which can real-time display test status, simple and intuitive;
High-precision motion control unit, to achieve precise positioning of porcelain precise speed control and mobile location;
Porcelain move speed is adjustable to achieve more flexible and operable on operation;
High quality friction material and load devices, has a good anti-corrosion, strong and safe;
Testing process fully automated and without human intervention, support parameter setting, data storage, viewing reports.
Product Specifications of CIT17-10S BAM Friction Sensitivity Tester
| Operating environment | 5 °C ~ 30 °C, <85% RH |
| Load Range | 0N ~ 360N |
| Load accuracy | 1N Accuracy: ± 0.038N;
2N Accuracy: ± 0.048N; 5N Accuracy: ± 0.08N; 10N Accuracy: ± 0.21N; 20N Accuracy: ± 0.45N; 40N Accuracy: ± 0.49N; 60N accuracy : ± 0.22N; 80N Accuracy: ± 0.27N; 120N Accuracy: ± 0.32N; 160N Accuracy: ± 0.37N; 240N Accuracy: ± 0.43N; 360N Accuracy: ± 0.48N |
| Industrial porcelain surface roughness | 9 ~ 32um |
| Porcelain movement stroke | 10mm |
| Porcelain size L × W × H | 25 × 25 × 5mm |
| Ceramic rods size Φ × L | 10 × 15mm |
