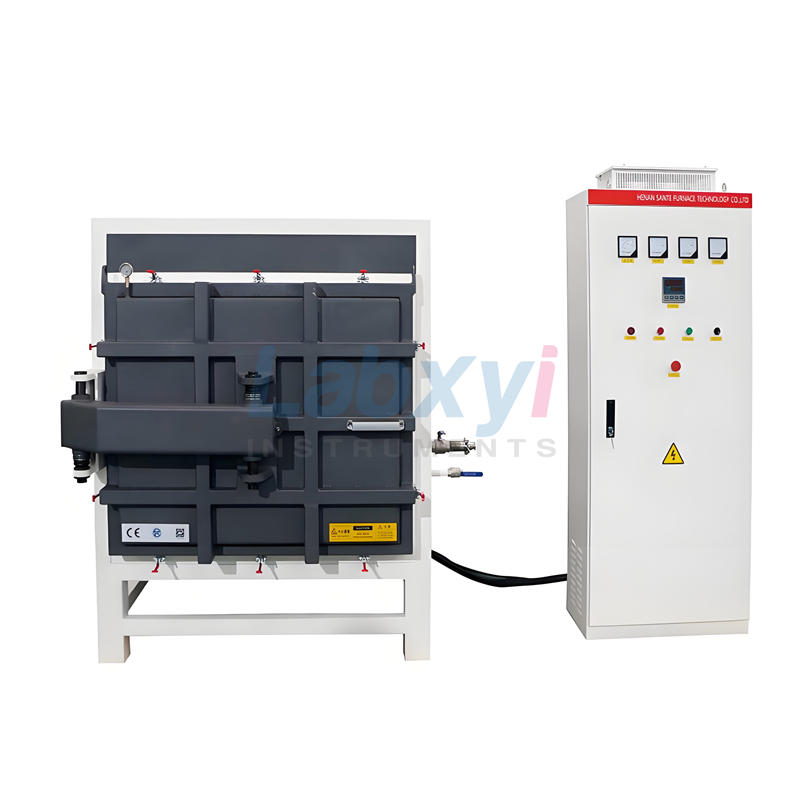

Box Type Atmosphere Furnace

The flange sealing structure of the box-type atmosphere furnace body can allow the introduction of protective gases such as nitrogen, argon, and oxygen during the heat treatment of materials. It is used for the heat treatment of carbon materials, metal materials, and biomass materials, and can also be used for the sintering of lithium battery ternary materials.

Features

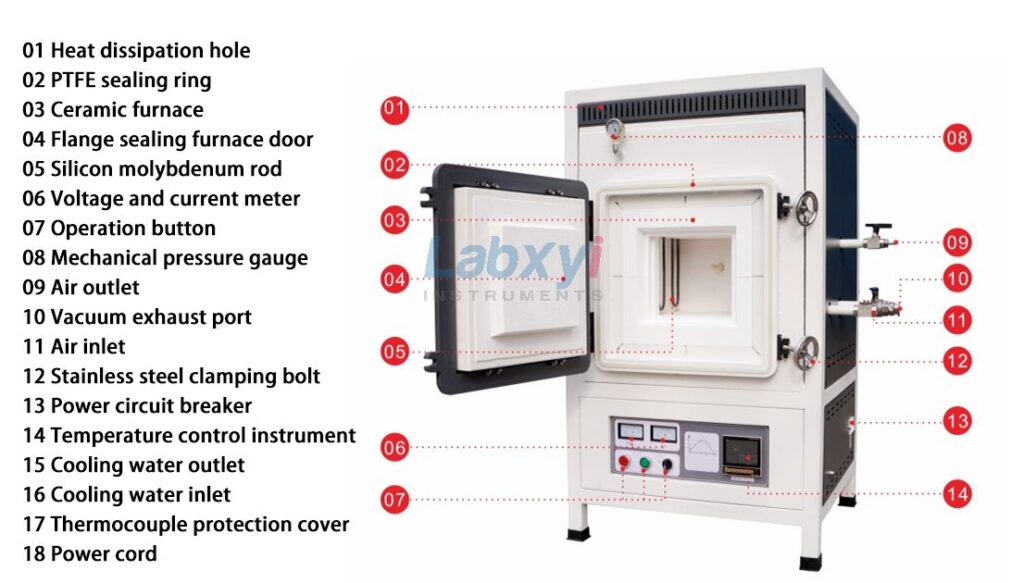

1. Furnace door flange structure, PTFE sealing ring, spiral clamping device, good sealing

2. The furnace body can be evacuated and can work under vacuum, vacuum degree -0.1Mpa

3. Accurate PID temperature control system and excellent ceramic fiber insulation material

4. Cheaper than vacuum furnace, more cost-effective

5. The furnace top is equipped with a water cooling system, which can effectively reduce the heat dissipation temperature of the furnace top and ensure the normal use of the heating element

6. Optional float flowmeter and gas mixing device

Technical Parameters

Product Model	Furnace size (mm)	Furnace volume maximum temperature		Operating temperature voltage		Power Heating Element		Temperature control accuracy
PH-BAF812	200×300×120	8L	1200℃	1100℃	220V	<W	HRE	±1℃
PH-BAF1212	200×300×200	12L	1200℃	1100℃	220V	4KW	HRE	±1℃
PH-BAF1812	250×300×250	18L	1200℃	1100℃	220V	6KW	HRE	1℃
PH-BAF3012	300×500×200	30L	1200℃	1100℃	380V	7.5KW	HRE	±1℃
PH-BAF814	200×200×200	8L	1400℃	1350℃	220V	5KW	SIC	±1℃
PH-BAF1214	200×300×200	12L	1400℃	1350℃	220V	5KW	SIC	±1℃
PH-BAF1814	250×300×250	18L	1400℃	1350℃	220V	6KW	SIC	±1℃
PH-BAF3614	300×400×300	36L	1400℃	1350℃	380V	12KW	SIC	±1℃
PH-BAF4514	300×500×300	45L	400℃	1350℃	380V	4KW	SIC	±1℃
PH-BAF817	200×200×200	8L	1700℃	1600℃	220V	5KW	MoSi2	±1℃
PH-BAF1217	200×300×200	12L	1700℃	1600℃	220V	5KW	Mosi	±1℃
PH-BAF2017	250×320×250	20L	1700℃	1600℃	380V	7KW	MoSi2	1℃
PH-BAF3617	300×400×300	36L	1700℃	1600℃	380V	13KW	MoSi2	±1℃
