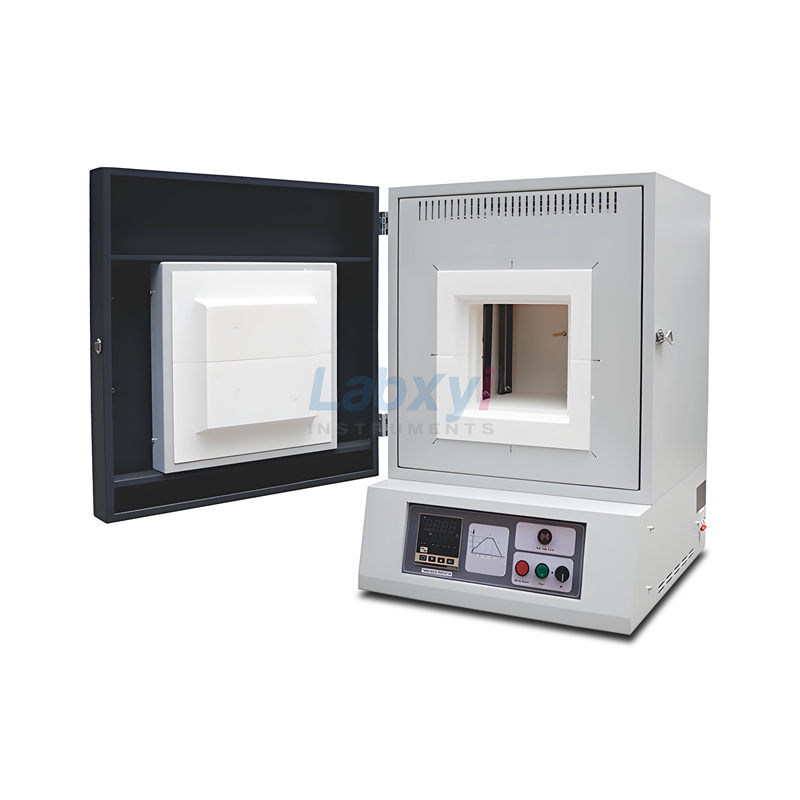

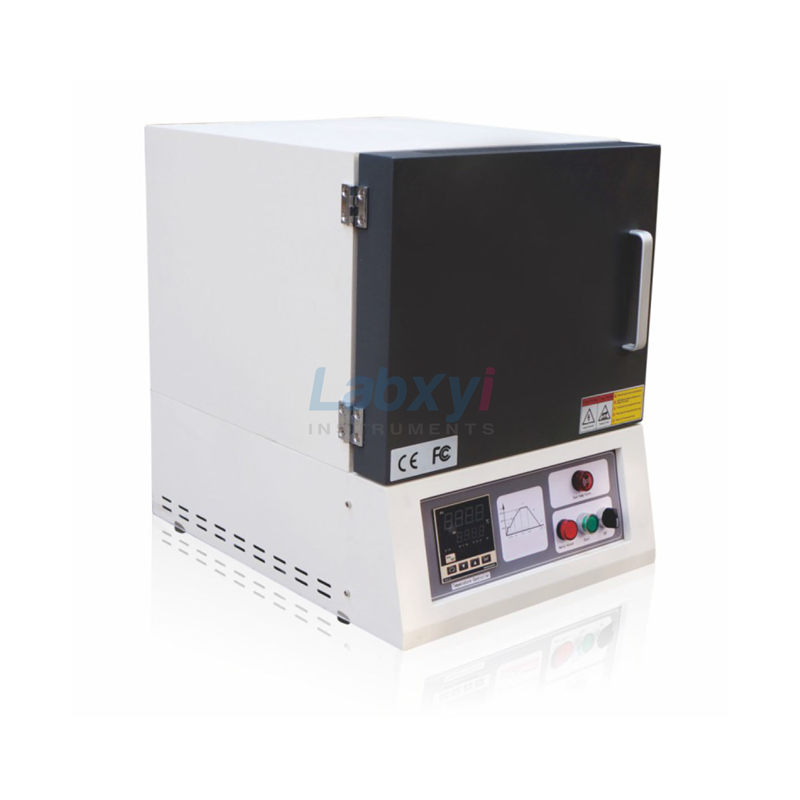

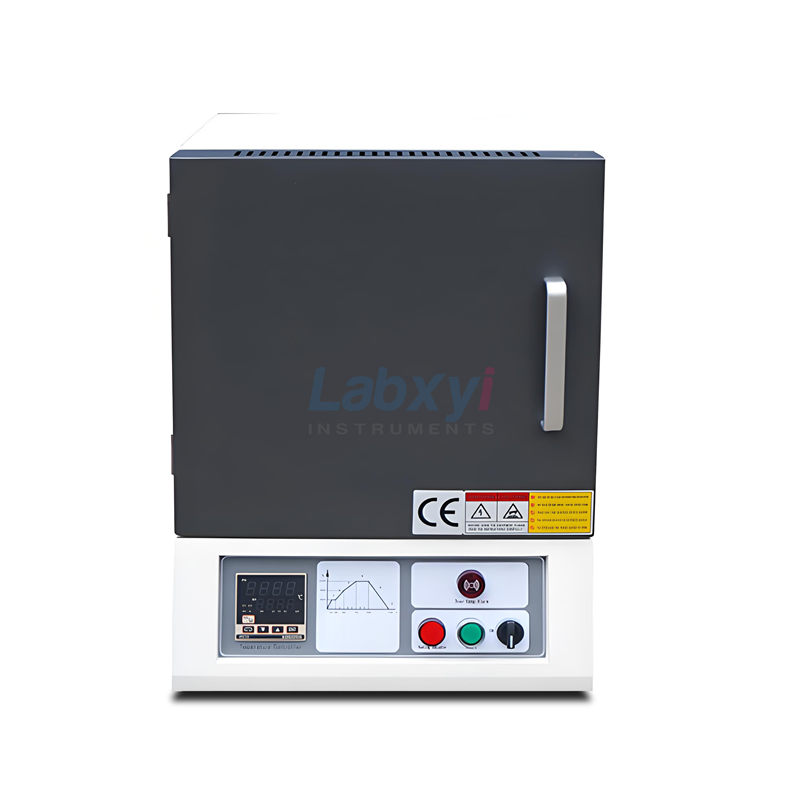

MF-BF series muffle furnace is commonly used laboratory equipment. Use of new insulation materials and unique operating system which is accurate temperature control, easy to operate, energy efficient.
Suitable for coal, chemical, metallurgy, building materials, geology, research institutes, industrial and mining enterprises for laboratory sintering, heating, metal annealing, quality testing, thermal chemical analysis and heat treatment used.

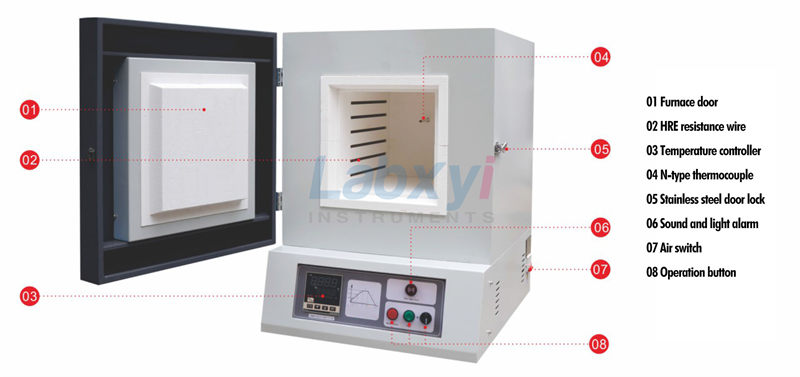

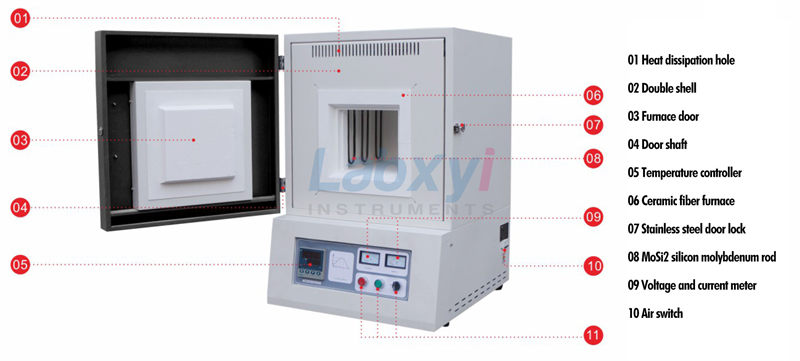

Features
1, integrated furnace design
2, high-quality polycrystalline mullite fiber furnace which energy saving more than 60%
3, double-insulated furnace shell structural to ensure safety
4, strict selection of high-quality materials
5, reasonable security design
6, lateral translation-opening door
7, Power cut off automatically when door openning
8, over-temperature protection
9, electric-leakage protection

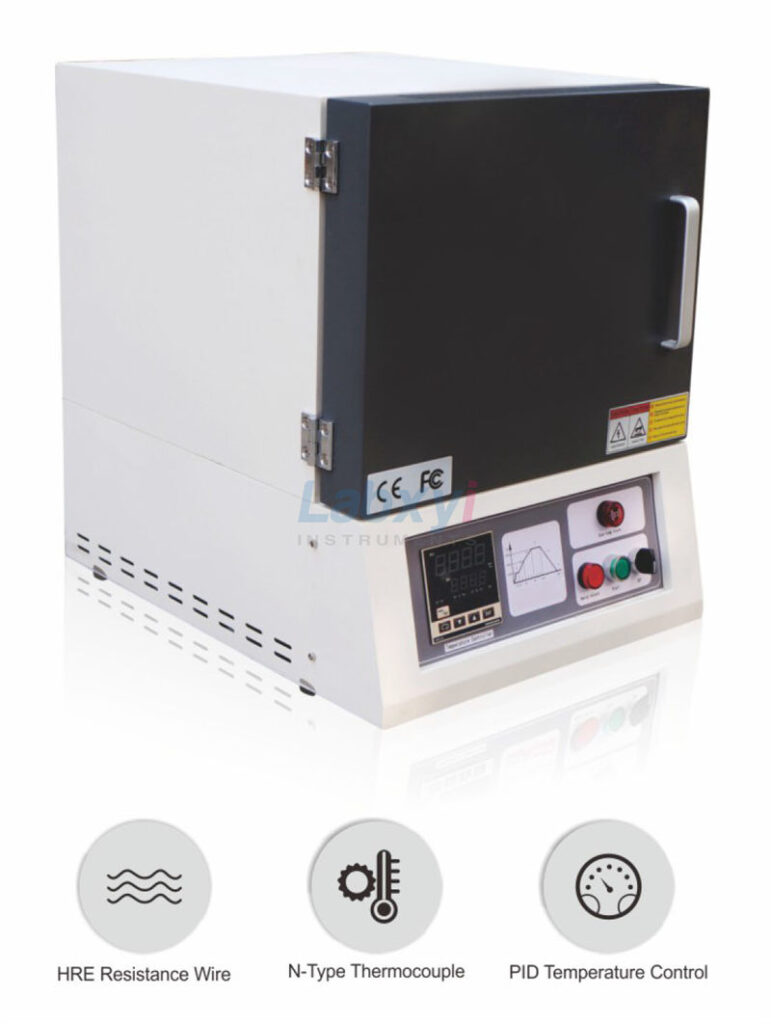

10, intelligent control systems and precise control, fuzzy logic, self-tuning, parameter memory
Specifications
| Model | Power (kw) | Max temp. (°C) |
Best work temp. (°C) |
Temp. rise time (min) | Heat element | Capacity (L) | Chamber size (mm) | Dimensions (mm) | Packing size (mm) | NW/GW (kg) |
| MF-BF0211 | 1.5 | 1100 ±1 |
750-1000 | ≤20°C/min | Alloy wire | 2 | 120*200*80 | 380*465*535 | 480*570*690 | 39/50 |
| MF-BF0711 | 3 | 7 | 200*300*120 | 460*560*605 | 560*670*745 | 55/70 | ||||
| MF-BF1811 | 7.5 | 18 | 250*300*250 | 540*596*788 | 640*700*895 | 90/108 | ||||
| MF-BF3611 | 10 | 36 | 300*400*300 | 590*696*838 | 690*800*950 | 150/170 | ||||
| MF-BF0414 | 4 | 1400 | 1000-1300 | Silicon carbide | 4 | 150*250*100 | 480*555*715 | 580*660*850 | 70/86 | |
| MF-BF1314 | 8 | 13 | 200*400*155 | 530*708*828 | 635*810*980 | 111/131 | ||||
| MF-BF1814 | 10 | 18 | 200*500*180 | 530*808*848 | 635*910*980 | 121/143 |
Optional
| Item No. |
Item |
|
1 |
Smoke mist exhaust device |
|
2 |
40 segments programmable controller (China brand) |
|
3 |
40 segments programmable controller (Imported brand) |
