Applicable standard
GB/T 261-2008, ASTM D93 (A and B methods)

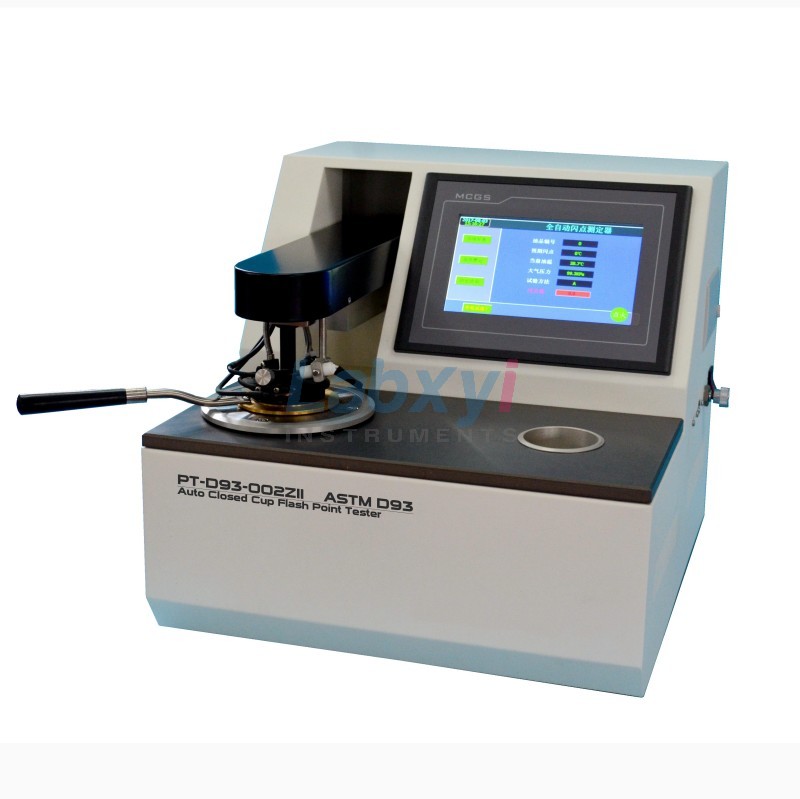

Performance characteristics
- PLC automatic detection, control, temperature programming, automatic ignition and judgment of flash point, test results can be stored, printed, downloaded, the entire test process without the need for personnel participation.
- 7-inch color LCD touch screen, full Chinese operation interface.
- With automatic lifting lid function, easy to operate.
- The stirring device is designed by the national patent. The stepping motor is used for sample stirring, and the rotation speed is stable and adjustable. It can be tested by A and B methods.
- Built-in atmospheric pressure sensor can automatically correct the measurement result according to the measured atmospheric pressure.
- with automatic cooling to improve cooling efficiency <. Depending on the user’s needs, the software and interface to connect to the LIMS system can be configured.
Technical indicators
1 power supply: AC220V±10% 50Hz
2 Measurement range: 40 ~ 300 ° C
3 sensor accuracy: 2‰
4 flash point detection: miniature thermocouple
5 heating rate:
Method A: 5 to 6 ° C / min
Method B: 1 to 1.5 ° C / min
6 heater power: 600W
7 stirring speed: Method A: 90 ~ 120r / min, Method B: 240 ~ 260r / min
8 gas source: liquefied petroleum gas, propane
- Dimensions: 240 × 410 × 39 (mm)
