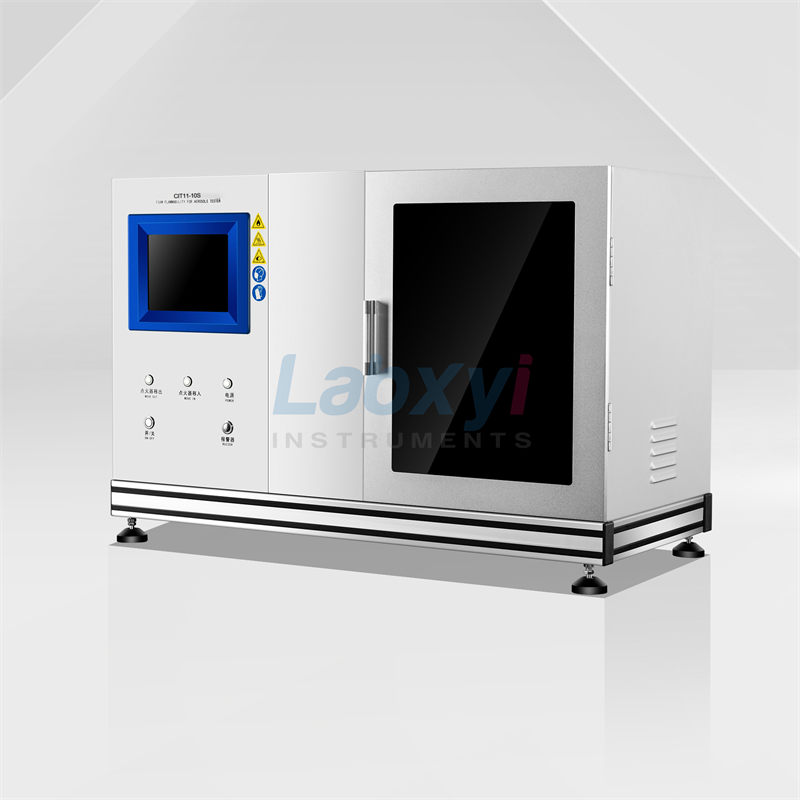

CIT11-10S Foam Aerosol Flammability Tester used to test the flammability of aerosol which sprayed in foam, gel or paste, it in line with United Nations “on the Transport of Dangerous Goods Recommendations Manual of Tests and Criteria” 31.6 aerosol foam flammability test and “dangerous aerosol foam flammability test methods.”
CIT11-10S Foam Aerosol Flammability Tester include display & control part. Detection means to automatically detect aerosol foam flame height recorded burning time, and generate data reports. Through LCD operator can monitor entire testing process.
Product Features
- Embedded processor, Windows CE operating system;
- 8-inch LCD touch screen which can display the test status in real time;
- High sensitivity photoelectric detection technology, test flame duration and maximum flame height;

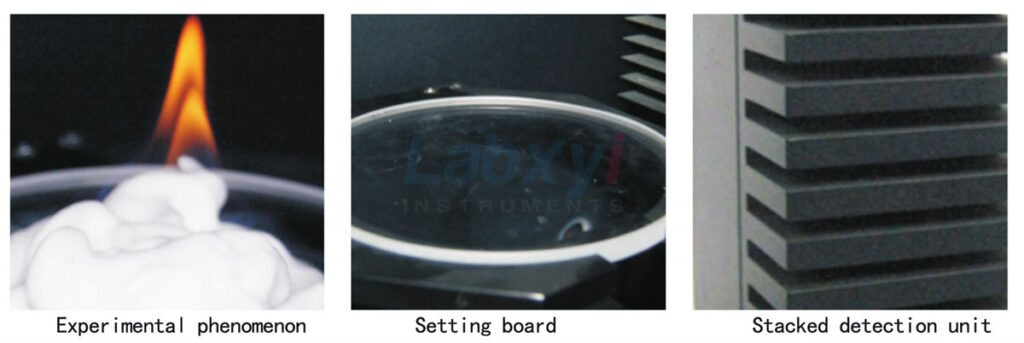

- Unique stackable design, the effective elimination of background light interference, for a variety of irregularly shaped flame height judgment;
- Flame height is automatically determined to ensure the accuracy of the data;
- Real-time display test animated images;
- With a high-precision temperature and humidity module, real-time monitoring of the test environment temperature, humidity, ensure the stability of the test results;
- Testing process fully automated, without human intervention, support parameter setting, data storage, viewing reports.
Product parameters
| MODEL | CIT11-10S Foam Aerosol Flammability Tester |
| Operating environment | 5 °C ~ 30 °C, <85% RH |
| The flame height detection range | 0 ~ 235mm |
| The flame height detection resolution | 5mm |
| combustion detection response time | ≤6ms |
| Ambient temperature range | -10 °C ~ + 60 °C |
| Ambient temperature measurement accuracy | ± 0.5 °C |
| Humidity measuring range | 5 ~ 95% RH |
| Humidity measurement accuracy | ± 3.0% RH |
| Watch accuracy | ± 0.1s |
| Ignition | point guns |
| carrying glass size | Ф150mm |
