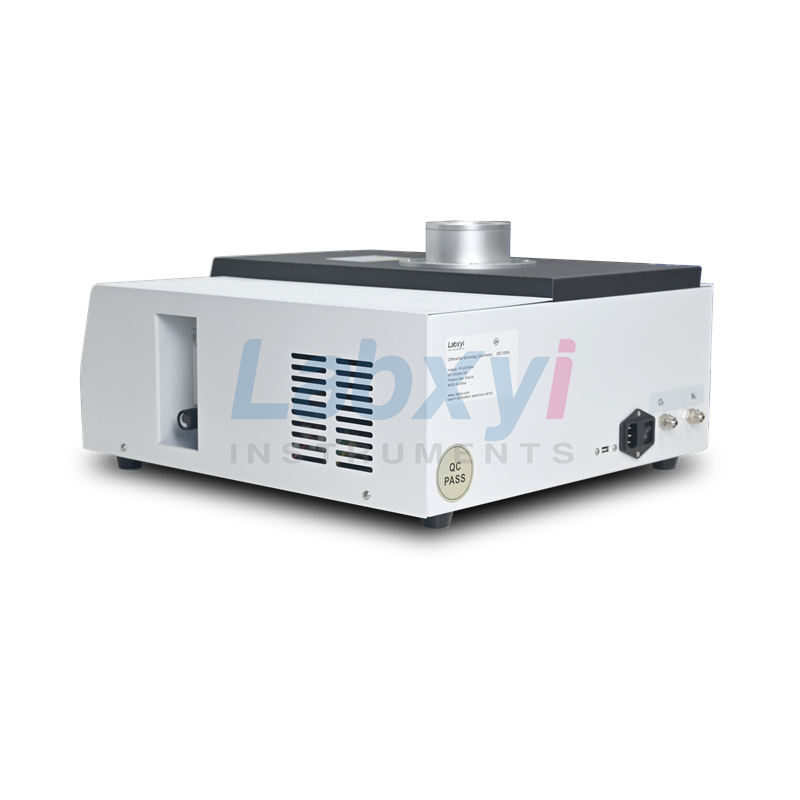

DSC1000A Upgraded differential scanning calorimeter DSC analyzer is a differential indicator with the highest precision. The sensor adopts imported material E couple with high sensitivity. The signal acquisition circuit is shielded and protected, with strong anti-interference and high baseline stability.
The differential scanning calorimeter is a touch screen type, which can perform glass transition temperature test, phase transition test, melting and enthalpy test, product stability, curing, and oxidation induction period test.
Technical Features
- Industrial-grade 7-inch touch screen, rich in display information.
- Brand-new metal furnace body structure, with better baseline and higher accuracy. The heating adopts indirect conduction method, which has high uniformity and stability, reduces pulse radiation, and is better than traditional heating mode.
- The USB communication interface has strong versatility, reliable and uninterrupted communication, and supports self-recovery connection function.
- Automatically switch the two-channel atmosphere flow, with fast switching speed and short stabilization time. At the same time, a protective gas input is added.
- The software is simple and easy to operate.
Technical Parameter
| Model | DSC1000A (upgrade model of DSC1000) |
| Temperature range | room temperature~550°C air cooling |
| Temperature resolution | 0.01°C |
| Temperature fluctuation | ±0.01°C |
| Temperature repeatability | ±0.1°C |
| Heating rate | 0.1~80°C/min |
| Data scan | heating scan |
| Temperature control method | heating, constant temperature, cooling (auto program control) |
| DSC range | 0~±600mW |
| DSC resolution | 0.01uW |
| DSC sensitivity | 0.001mW |
| Power supply | AC220V/50Hz or customized |
| Atmosphere control gas | nitrogen, oxygen (automatic switching of the instrument) |
| Gas flow | 0-300mL/min |
| Gas pressure | 0.2MPa |
| Display mode | 24bit color, 7-inch LCD touch screen display |
| Data interface | standard USB interface |
| Parameter standard | equipped with standard materials (indium, tin), users can calibrate the temperature by themselves |
