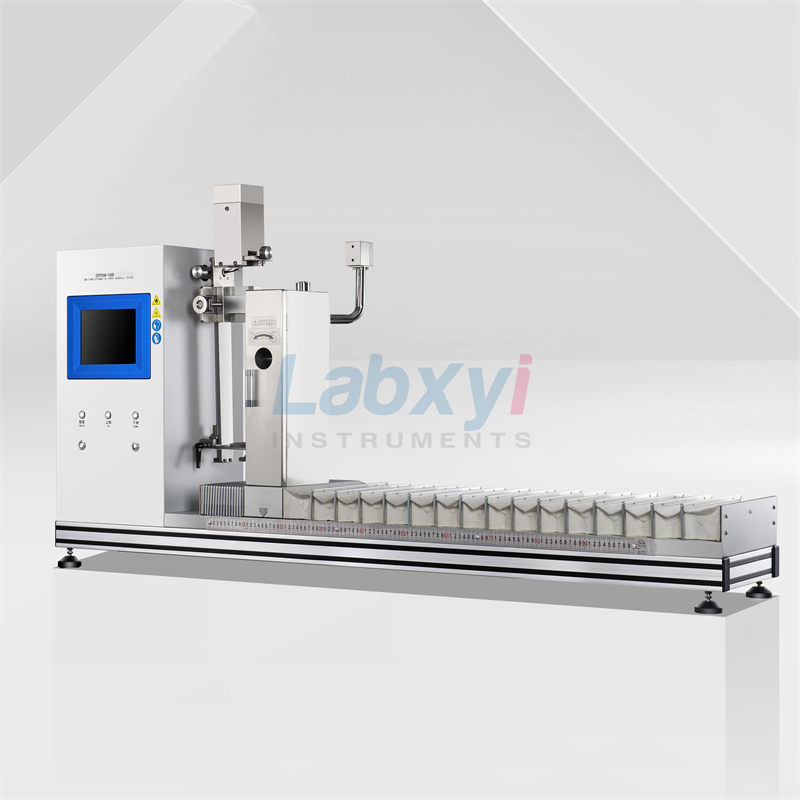

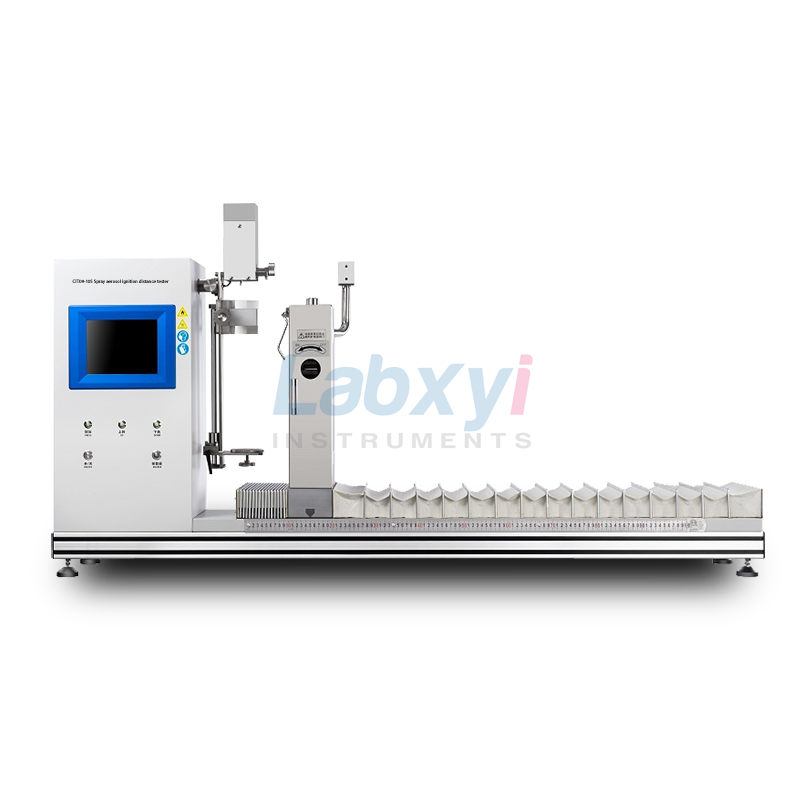

CIT09-10S Spray aerosol ignition distance tester is used to measure the ignited distance of the aerosol spray .It is suitable for aerosol products with 15cm spraying distance and above, in line with the United Nations “on the Recommendations on the Transport of Dangerous Goods Tests and Standards Manual” 31.4 ignition distance test for spray aerosols and “Standard test method for dangerous goods from the spray ignition.”
The instrument uses photoelectric sensors to detect the ignited distance of the aerosol spray, through high-precision light sensors and thermocouple sensor to real-time sense spray ignition state and automatically determine whether ignition occurs, and automatically generate data reports.
Product Features
- embedded processor, Windows CE operating system;
- 8-inch LCD touch screen, display the test status in real time;
- integration of the “standard model” and “Custom Mode” in two modes;

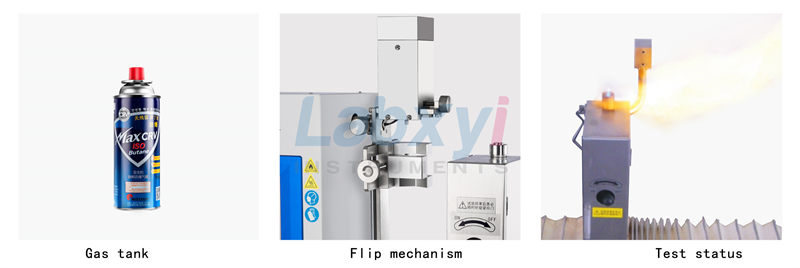

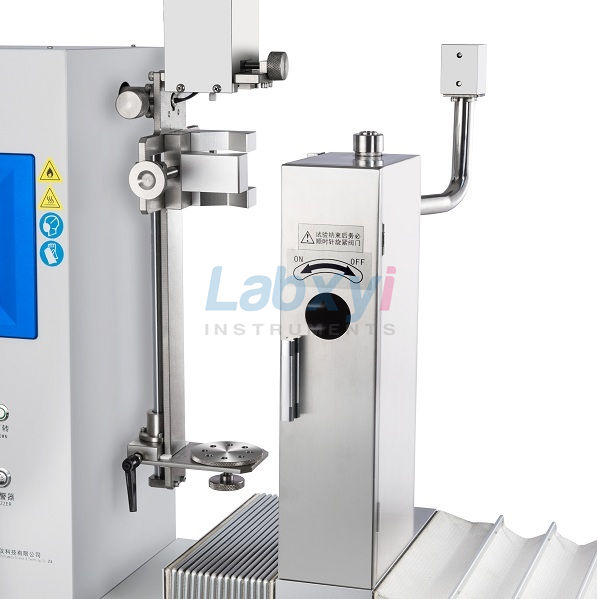

- Automatic spray sprays and spray cans clamping device can automatically tank vertical and inverted;
- pressure sensors, light sensors nanosecond double detection module, automatically detects whether a flame is burning or explosion in a confined space;
- added to the ventilation system, the smoke exhaust barrel, to ensure test accuracy and safety of laboratory personnel;
- testing process fully automated, without human intervention, support parameter setting, data storage, viewing reports, etc;
- equipped with temperature and humidity module, real-time monitoring of temperature test, humidity.
Product parameters
| MODEL | CIT09-10S |
| Working environment | 5 °C ~ 30 °C, <85% RH |
| Ambient temperature measuring range | -10 °C ~ + 60 °C |
| Ambient temperature measure accuracy | ± 0.5 °C |
| Humidity measuring range | 5 ~ 95% RH |
| Humidity measurement accuracy | ± 3.0% RH |
| combustion detection response time | ≤6ms |
| Burning detecting distance | 15cm-90cm |
| Positioning accuracy | ± 1mm |
| pressed Duration | 5s |
| Ignition | point guns |
| aerosol cans Location | aerosol tank automatically flips |
| Spray cans compatible dimensions | H 120 ~ 400mm, D of 30 ~ 80mm |
