CCT350P Carbon Black Content Tester

The carbon black content tester is suitable for the determination of carbon black content in polyethylene, polypropylene, polybutene plastics, cable and optical cable insulation and sheath materials, and rubber.

SKU: CCT350P Category:

Introduction

The carbon black content tester is suitable for the determination of carbon black content in polyethylene, polypropylene, polybutene plastics, cable and optical cable insulation and sheath materials, and rubber. It comply with national standards GBT 3515-2005, GBT 13021-1991, GB∕T2951.41-2008, IEC60811-4-1: 2004, etc. A certain amount of sample is pyrolyzed at high temperature in a nitrogen stream, and the carbon black content is obtained by analyzing the weight of the sample after pyrolysis.

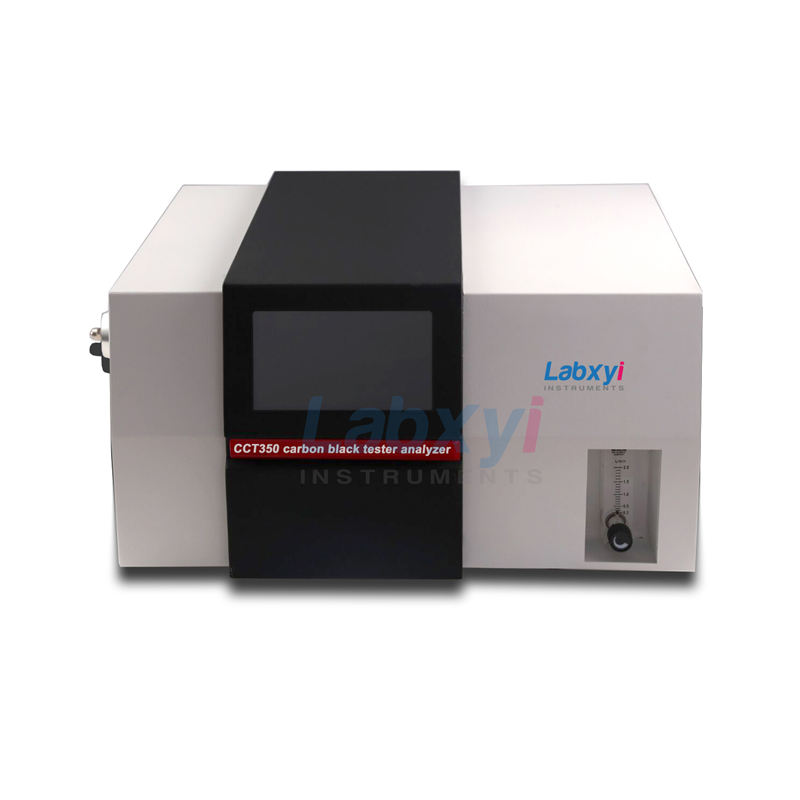

CCT350P carbon black tester analyzer LABXYI xiangyi (2)

Technical Features

  • The appearance and structure of the instrument are beautiful, and the operation is simple;
  • The integrated design of the heating furnace body and the control system is convenient for the user’s instrument management.
  • High degree of automation, only need to set the temperature value and heating time, the instrument will automatically rise to the set value;
  • High temperature control accuracy, large temperature range, and high furnace temperature uniformity;
  • 7-inch LCD touch screen display, extremely friendly operation interface, can be started by one-key operation
  • It has an excellent constant temperature function, and the constant temperature time can be set, and the constant temperature accuracy is high;
  • The instrument can set any group of different heating time periods, and can have different heating temperature, heating rate, and constant temperature time;
  • The parameter display is comprehensive, showing the number of set groups, theoretical temperature, actual temperature, heating time (or constant temperature time);
  • During the operation of the instrument, the set parameters and the heating or constant temperature time can be viewed.



Technical Parameter

Model CCT350P
Display mode  7-inch capacitive touch screen
Quartz tube size  φ44×600±5mm
Furnace size  Φ45×300±5mm
Heating element  high temperature alloy wire
Length of heating zone  250mm
Working temperature  room temperature~1150°C
Temperature control method  Intelligent programmable control, section program can be set.
Power supply  AC220V/50HZ/60HZ
Sensor sensitivity  0.1°C
Pneumatic control  two channels, automatic program switching
Cooling method  rapid cooling (≤20min, 900°C to room temperature)
Number of test samples  4 samples are tested at a time
Data calculation
  • The software comes with a calculation function, one-key calculation;
  • it can automatically calculate the carbon black content and ash content.
  • Customized rail-type sample rack, easy to take and set out



Packing list

Item Name Quantity
CCT-350P Host machine 1 set
Sample Holder 1 set
Burning boat 10 pcs
Power Cord 1 set
10A fuse 5 set
Rapid cooling device 1 set
Hook 1 set
Forceps 1 set
Hose 1 m, 3 m Each one
rubber stopper and glass tube 1 set
