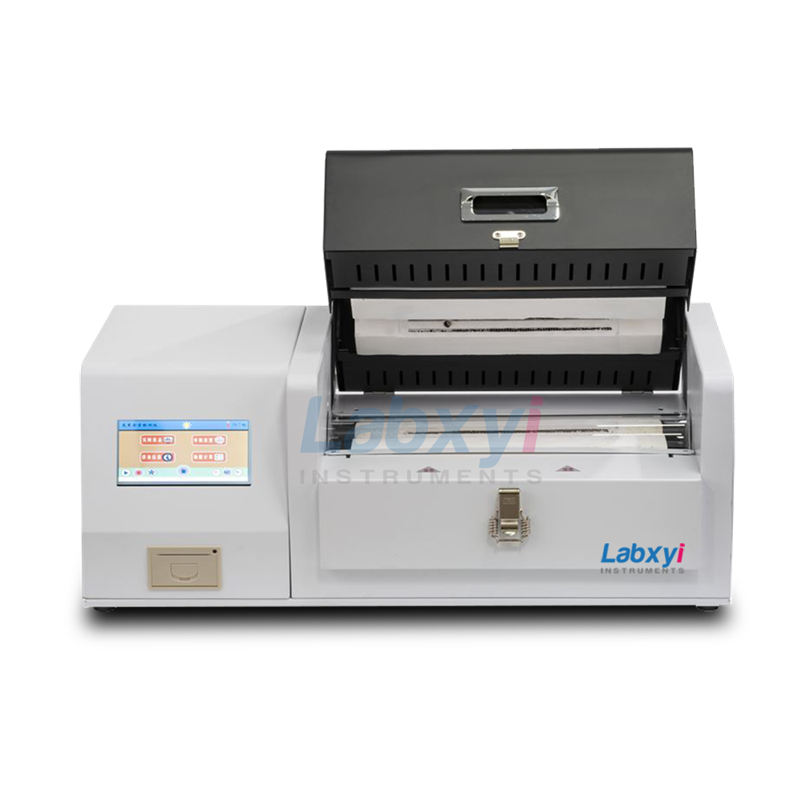

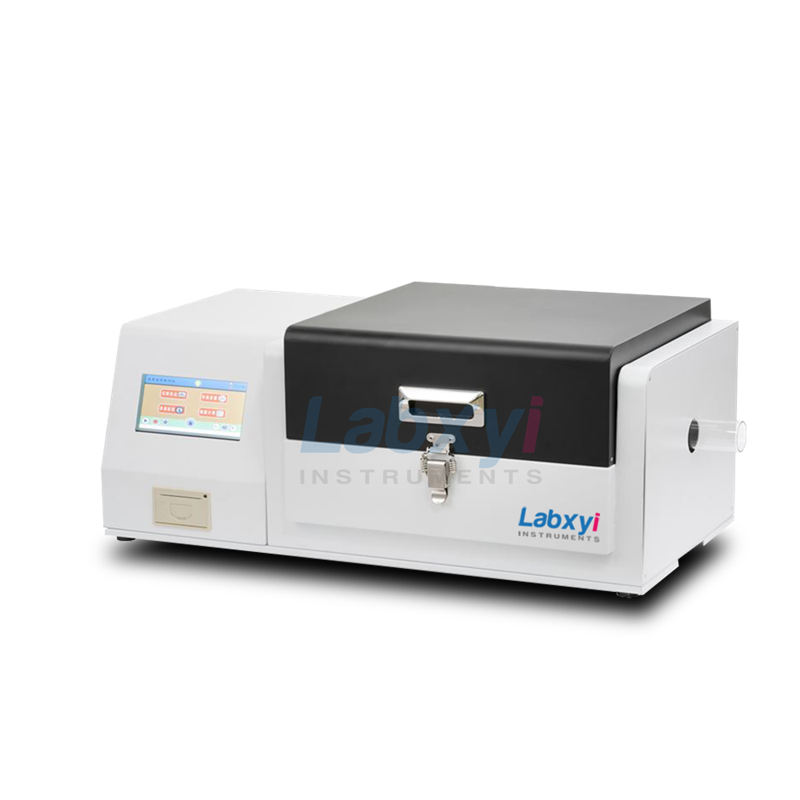

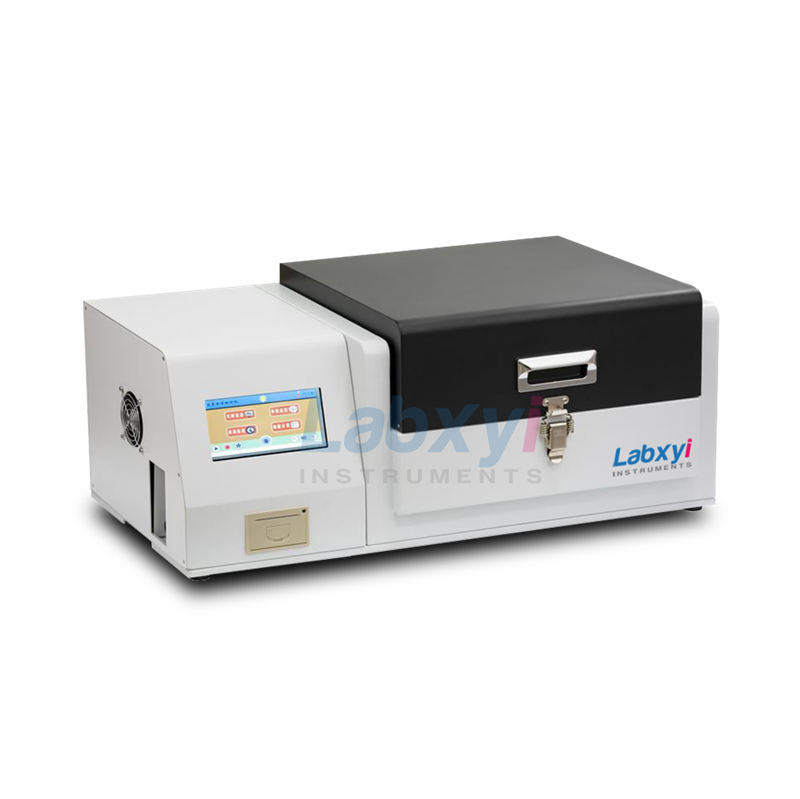

Instrument introduction
CCT350S carbon black content tester is suitable for the determination of carbon black content in polyethylene, polypropylene, polybutene plastics, cable and optical cable insulation and sheath materials, and rubber.
Technical Features
- Appearance and structure are beautiful and operation is simple;
- The integrated design of the heating furnace body and the control system facilitates the user’s instrument management.
- High degree of automation, just set temperature value and heating time, the instrument will automatically heat up to the set value;
- High temperature control accuracy, wide temperature range, high furnace temperature uniformity;
- 7 -inch LCD touch screen display, extremely friendly operation interface, can be started with one key operation
- It has excellent constant temperature function, and constant temperature time can be set, high constant temperature precision.
- Can set any group of different heating time periods, and can have different heating temperature, heating rate, and constant temperature time;
- Parameter display is comprehensive, showing the number of set groups, theoretical temperature, actual temperature, heating time (or constant temperature time);
- During the operation of the instrument, you can view the set parameters and the time for heating or constant temperature .
Technical Parameters
| MODEL | CCT350S |
| Display mode | 7’’ touch screen in capacitive |
| Quartz tube size | φ4.4×60 ±0.5 cm |
| Furnace size | Φ4.5×30 ±0.5cm |
| Heating element | high temperature alloy wire |
| Heating zone length | 25 cm |
| Working temperature | RT ~ 1150°C |
| Temperature control method | intelligent programmable control, segmented program can be set. |
| Working power supply | AC220V/50HZ/60HZ |
| Sensor sensitivity | 0.1°C |
| Gas path control | two paths, automatic program switching |
| Cooling method | Rapid cooling (≤20m, 900°C ~ RT) |
| Number of test samples | 4 samples at a time |
| Data calculation | software has its own calculation function, one-key calculation; it can automatically calculate the carbon black content and ash content. |
| Sample Rack | Customized rail-type sample rack, easy to take and set out |
| Open cover, quick cooling | Yes |
| Exhaust filter | Yes |
| Print function | Yes |
Configuration list
| Serial number | Content | Quantity |
| 1 | Instrument host | 1 set |
| 2 | Sample holder | 1 pcs |
| 3 | Burning boat | 5 pcs |
| 4 | Power cable | 1 pcs |
| 5 | 10A fuse | 5 pcs |
| 6 | Exhaust filter | 1 set |
| 7 | Hook | 1 pcs |
| 8 | Tweezers | 1 pcs |
| 9 | Rubber tube | 1 each |
| 10 | Sealed plug plus glass tube | 1 set |
| 11 | Certificate | 1 copy |
| 12 | Warranty Card | 1 copy |
