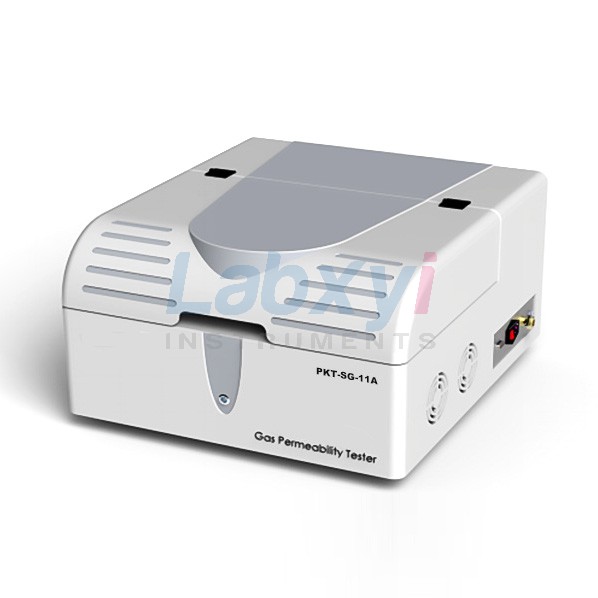

PKT-BSG-11AA
PKT-BSG-31J/33D
Bottle, bag test fixture
Test fixture
Technical Index
| Technical Specifications | Technical Parameter | ||||
| PKT-BSG-11A | PKT-BSG-31J | PKT-BSG-33D | |||
| Measuring range (film) (Cc / m2 • day • 0.1MPa) | 0. 1-50,000 | 0.02-50,000 | 0.02-50,000 | ||
| Test Accuracy | 0.01 cc/m2•day•0.1MPa | ||||
| Number of samples | 1 | 3 | 3 | ||
| Number of main sensor | 1 | 1 | 3 | ||
| Test Mode | Single chamber independent | Three cavity Mean | Three-cavity independent sensor | ||
| Vacuum error | 0.1Pa | ||||
| The degree of vacuum | <10Pa | ||||
| Vacuum efficiency | Within 20 minutes, less than 27Pa; | ||||
| Test efficiency | Test Time <4 hours, when the transmittance> 5cc / m2.day.0.1MPa | ||||
| Temperature range | 5 ℃ -55 ℃ (optional 90 ℃) | ||||
| Temperature accuracy | ± 0.1 ℃ | ||||
| Humidity | 5 ~ 90% RH (dual airflow humidity law, optional) | ||||
| Humidity Accuracy | ± 1% RH | ||||
| test pressure | 0.1MPa ~ 0.2Mpa | ||||
| Air pressure | 0.1MPa ~ 0.8 MPa | ||||
| Test gas | O2, N2, CO2 or other gases | ||||
| The carrier gas Interface | ¢ 8 | ||||
| Tube diameter | 1/4 “ | ||||
| Correction mode | Standard film calibration, vacuum sensor outside the school | ||||
| Sample thickness | ≤3mm | ||||
| Test area | 50cm2, circular (other sizes can be customized) | ||||
| Host size | 585 × 640 × 380mm 960 × 550 × 450mm 960 × 550 × 450mm | 585 × 640 × 380mm 960 × 550 × 450mm 960 × 550 × 450mm | 585 × 640 × 380mm 960 × 550 × 450mm 960 × 550 × 450mm | ||
| (L × B × H) | 40Kg 60Kg 65Kg | 40Kg 60Kg 65Kg | 40Kg 60Kg 65Kg | ||
| Weight (Kg) | 220V AC 50HZ | ||||
Standard Configuration
| Item No. | Name | quantity | Model | Unit | Note |
| 1 | Test Host | 1 | PKT-BSG-11A/31J/33D | set | Includes: vacuum sensor systems, pressure sensors, pneumatic control systems, environmental control systems, communication systems, display and control systems. |
| 2 | High vacuum pump | 1 | VRD-4 | set | Vacuum capability: 2Pa |
| 3 | Professional testing software | 1 | G-Vseries | set | 1 Operating System Requirements: Windows 2000 or XP above; |
| 4 | Communication Cable | 1 | pcs | 2 Hardware Requirements: Memory 1G, 80G hard drive or more. | |
| 5 | Vacuum pipe | 1.5 | 1/4” | Meter | Standard RS232 communication cable, length 2m |
| 6 | Gas hose | 2 | Diameter 8mm | Meter | United States |
| 7 | Decompression valve | 1 | only | 50cm2 sampler, cut the sample | |
| 8 | Disc sampler – sample | 1 | set | Dow Corning | |
| 9 | Sealing grease | 1 | only | USB1.1 extension cable, length 1m. | |
| 10 | USB | 1 | Article | Includes: vacuum sensor systems, pressure sensors, pneumatic control systems, environmental control systems, communication systems, display and control systems. | |
| Optional | Conversion line | 1/3/3 | set | ||
| User prepare | Bottle bag test fixture | 1 | set | PKT-BSG-11AOptional, other models as standard | |
| Test gas bottles (oxygen, etc.) | |||||
