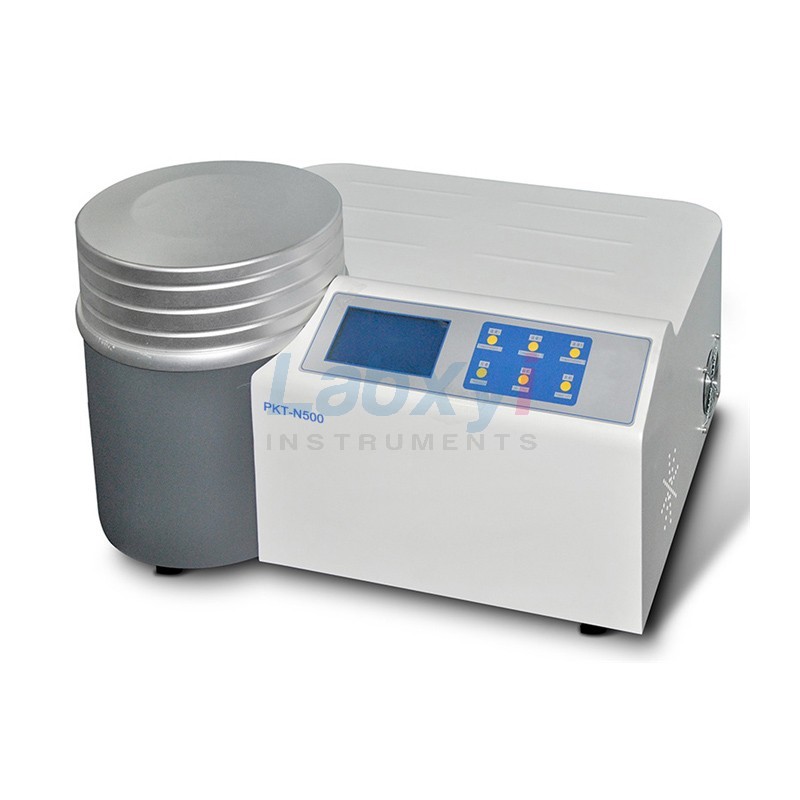

PKT-N500 Air Permeability Analyzer can tests the O2, CO2, N2 etc. gas transmission rate of plastic film, composite film, aluminum foil, thin sheets, rubber, porcelain, solar panel, medical patch and so on.
Working Principle
Differential-pressure method. Test sample separates test chamber into upper room and lower room, between which keeps a constant pressure difference (100Kpa). Gas molecules penetrate through sample from higher pressure room into lower pressure room; measure the pressure change in lower pressure room and calculate gas transmission rate.
Standards
GB/T 1038, ISO 2556, ISO 15105-1, ASTM D1434
Features
- Professional sensor, high precision.
- Automatic test, auto judgment, auto stop.
- Automatically keep pressure difference between upper and lower chambers.
- Advanced electromagnetic temperature control technology, program controlled, auto increase and decrease; integrated design; precision 0.01℃.
- High precision, can test aluminum foil.
- Three test modes: high barrier, low barrier and medium barrier test.
- Can expand test range to 600000 cm3/m2·24h·0.1MPa.
- Can run long time without maintenance; over pressure auto protection.
- LCD display test data.
- Professional software, simple interface, easy to use; flexible setting of test process.
- Real time display curves of transmission rate, pressure, differential pressure, temperature.
- Can zoom and move curves freely, so as to make detail analysis.
- Professional test report, can export file in Office, PDF format etc.
- Calibrated by Standard Film or by pressure.
Specifications
| MODEL | PKT-N500 |
| Test range | 0.02~50000 cm3/m2·24h·0.1MPa |
| Test precision | 0.01 cm3/m2·24h·0.1MPa |
| Temperature range | 15~35℃ (5~50℃ optional) |
| Temperature precision | ±0.01℃ |
| Vacuum degree | <10Pa |
| Vacuum resolution | 0.1Pa |
| Test pressure | 0~0.2MPa |
| Gas source | test gas, purity 99.999%, 0.2~0.8MPa |
| Gas port | Φ6mm gas pipe |
| Test gas | O2, CO2, N2 etc. |
| Test area | 50.24 cm2 |
| Sample size | Φ110 mm |
| Sample thickness | ≤2mm |
| Instrument size | 68×56×34cm |
Configuration
Air Permeability Analyzer, software, communication cable, power cable, sample cutter, gas pipes 2pcs, pipe connectors 4pcs, sealing grease, spanner, filter paper 3pcs, Standard Films 1 set
Optional: vacuum pump, pressure releasing valve, computer
User provide: gas source
