Function

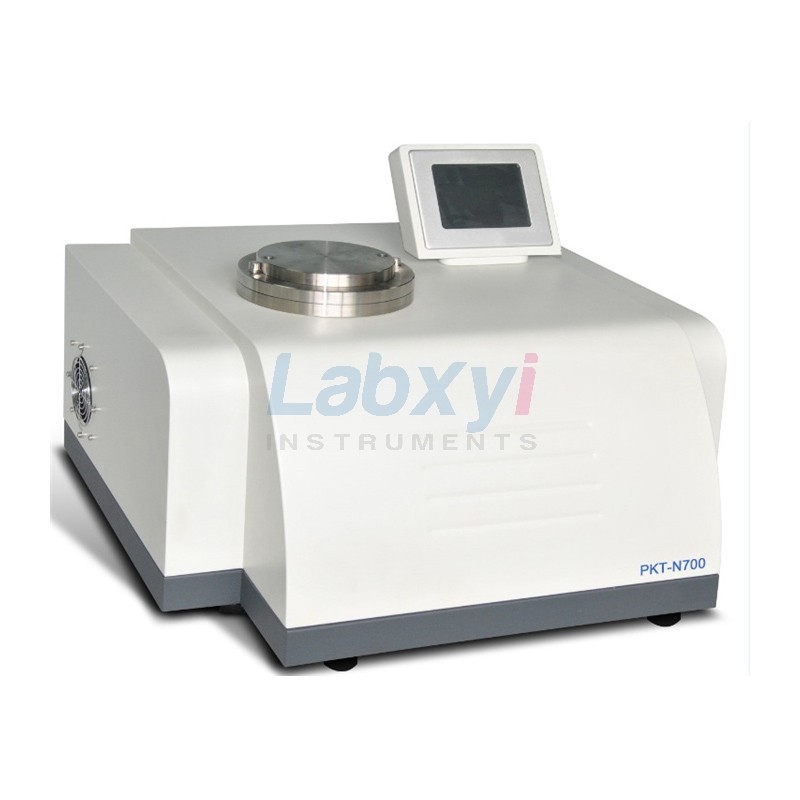

PKT-N700 is high precision laboratory test equipment collects mechanical and electronic. It is applicable for the gas transmission rate test of various textiles including industrial fabrics, non-woven cloth, paper, sponge etc.
Standards
GB/T 5453、ISO 9237、ASTM D 737、BS 5636
Features
·The pressure can arbitrarily regulate, and automatic
measurement and calculation. According to GB/T
5453 design and manufacturing.
·Measurement area :5 cm2、20 cm2、50cm2、100 cm2.
Specifications
| Measuring range | 0 ～ 20000mm/s |
| Measuring resolution | 1mm/s |
| Pressure range | 0～500Pa |
| Test area | 5 cm2、20 cm2、50cm2、100 cm2 |
| Sample thickness | ≤10mm |
| Power | AC 220V /50HZ |
| Configuration | Main frame, software, cable, sample cutter |
| Sample thickness | ≤5mm |
| Sample area | Φ90mm |
Configuration
In the regulation differential pressure conditions,measurement rate of air flow and calculate permeation rateat fixed time vertical through the sample given area.
