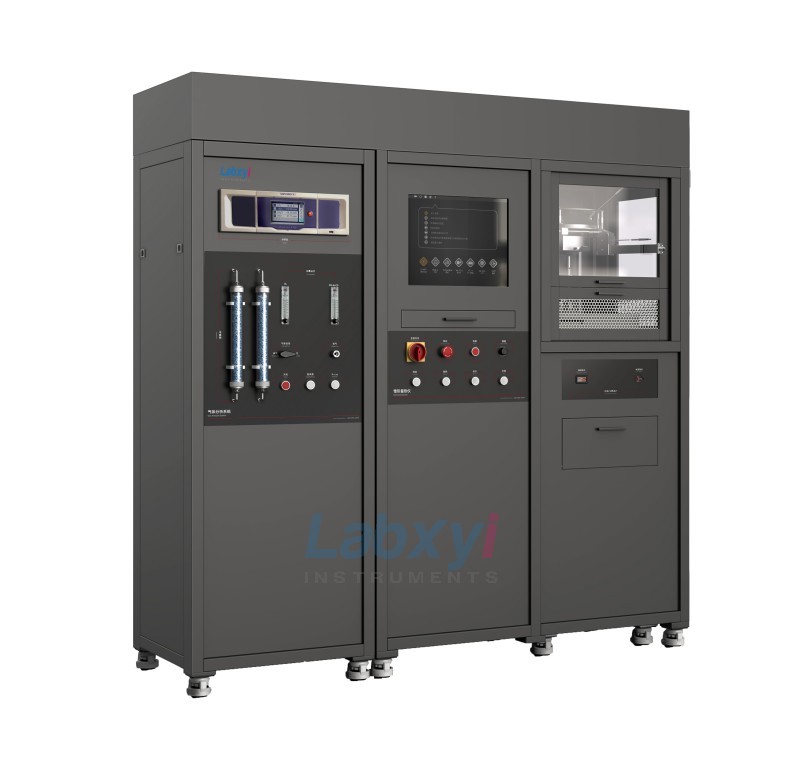

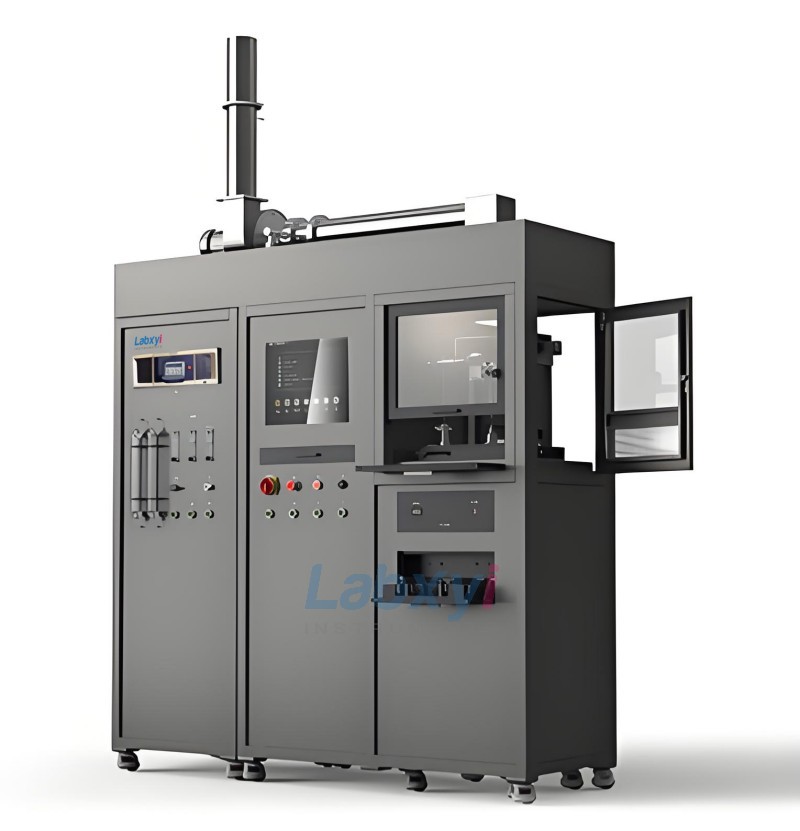

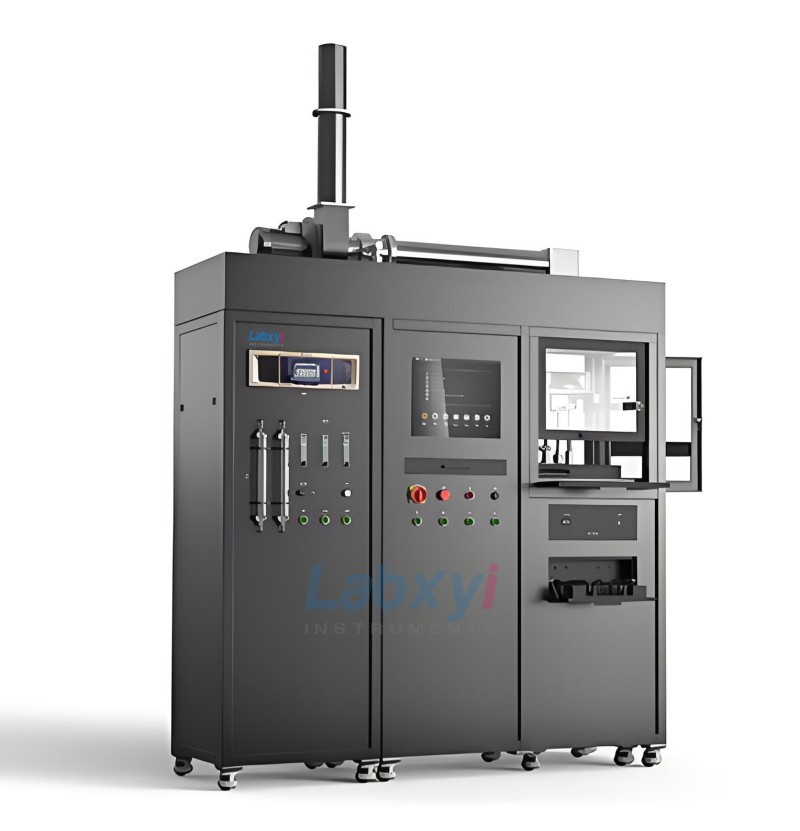

Cone calorimeter measures the heat release rate of materials on the principle of oxygen consumption. The principle of oxygen consumption is that a material burns with roughly the same amount of heat for each unit of oxygen consumed. When the sample is exposed to the heat source of the conical heater, the conical calorimeter can measure the heat release rate, smoke generation rate, ignition time, oxygen consumption, carbon monoxide, carbon dioxide generation and mass loss rate of the sample.
Product Standard
ISO 5660: Tests for reaction to fire – Heat release rate, smoke production rate and mass loss rate
ASTM E 1354: Standard Test Method for Heat and Visible Smoke Release Rate of Materials
BS 476 pt.15: Tests on building materials and structures: methods for testing the heat release rate of products
GB/T Cone calorimeter Experimental method for heat release rate of building materials
Product Parameter
| Model | XY-CC07 |
| Power Supply | AC 220V, 50/60Hz, 25A |
| Upper Cabinet (W*D*H) | 1905×625×2705mm |
| Weight | APPR. 360kg |
| Gas Source | Methane amd nitrogen
purity above 98% & 99.99% |
| Standard Gas （O₂、CO₂/CO） |
