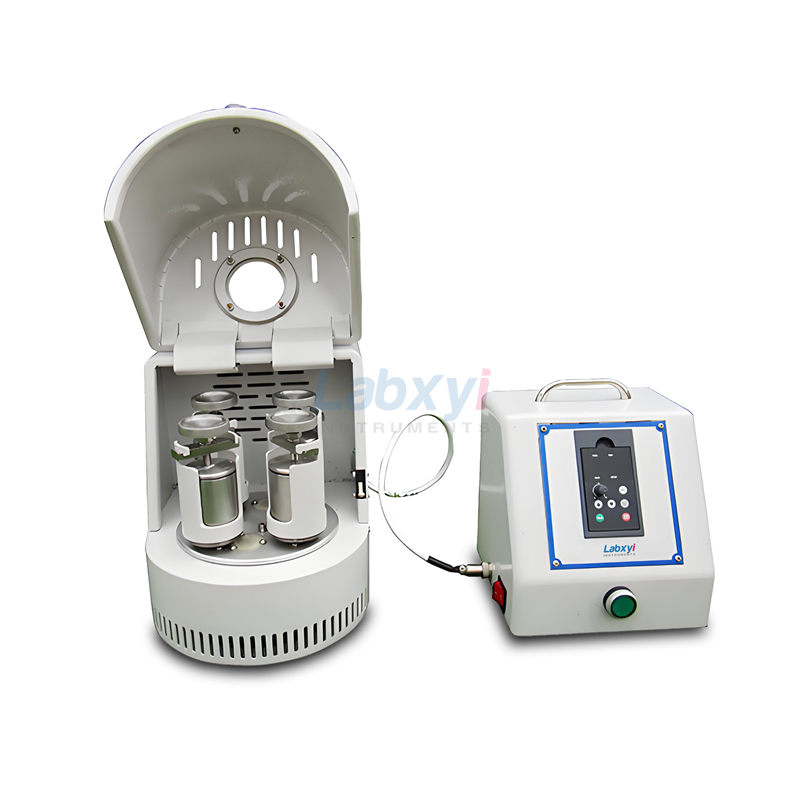

PBM-0.2S Vertical Planetary Ball Mill for Glove Box Use

PBM-0.2S is a kind of supper mini model of vertical planetary ball mill which is specially designed to be used for grinding materials under vacuum or inert gas atmosphere conditions inside the glove box.

Overview

Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. Xiangyi planetary ball mill owns small volume, high efficiency, low noise and functional features which is a ideal equipment for R&D centers, universities, enterprises laboratory to get samples (each experiment can get four samples at the same time). It can be put into the glove box and grind any materials which have to be operated under the vacuum state or inert gas atmosphere inside the glove box.

Working Principle

Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1µm.

Feature

1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may set ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may select any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of PBM-2S: small volume, more functions,low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.

Technical Parameter
