Overview

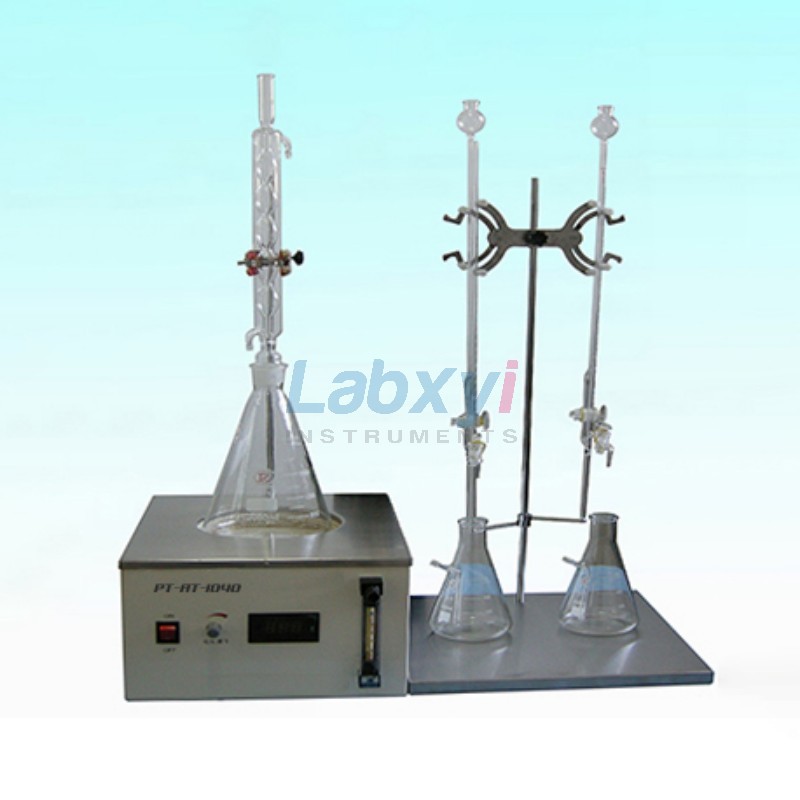

PT-AT-1040 Total Acid number tester for Jet Fuel conforms to the GB/T12574 standard testing method of total acid value for jet fuel. It is used to test the total acid value of jet fuel. The measuring range is 0.000~0.100mgKOH/g,can link the automatic equipment of nitrogen generator.
Features
- The instrument adopts solid state voltage regulator, stepless to change temperature, easy to adjust temperature.
- Voltage regulator outputs without contact, sparkle and noise and it is stable.
- Heating system adopts heating jacket, Temperature uniformity, high Insulation performance and safe to operate.
- Voltmeter is used to show the voltage changed by the solid state voltage regulator, convenient to direct-view.
- The instrument has reasonable structure, beautiful shape, safe and reliable to operate.
Technical parameters
1. Rated voltage: AC 220V±10% 50Hz
2. Heating power: 0 ~ 700W (Continuously adjustable)
3. Temperature control mode: Solid-state voltage regulator (Stepless)
4. Display of accommodation:AC voltmeter 0 ~ 500V
5. Flow of nitrogen:100 ~ 1000ml/min
6. Ambient requirement: temperature: 20 ~ 30°C Humidity≤85%
