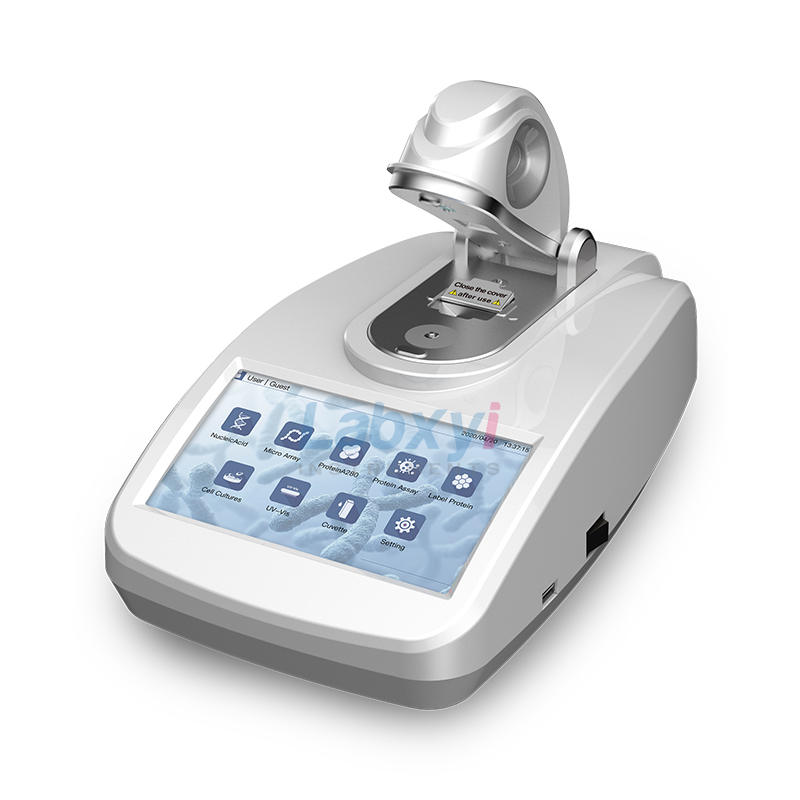

Ultra-micro ultraviolet-visible spectrophotometer is a full-wavelength ultra-micro ultraviolet-visible spectrophotometer.
The micro detection mode can be used to detect nucleic acids, micro nucleic acid arrays, pure protein detection, labeled
protein detection, protein quantitative detection, microbial cell culture detection and Conventional full-wavelength
scanning, cuvette detection mode can measure nucleic acid, protein, microbial cell culture and Kinetic testing.
Characteristics
- Small size, easy to carry, very suitable for field testing.
- It can be quickly upgraded by U disk, which is convenient for the instrument to update the software.
- The detection concentration range is wide, and commonly used samples can be detected without dilution.
- Has power-on self-test function, it can quickly and accurately judge whether there are impurities in the detection platform when the machine is started up.
- The machine does not need to be warmed up, it can be detected after starting up, and the single detection time is about 5
seconds, and the detection is fast. - By forming a liquid column, the sample required for one test is as low as 0.5ul.
- Colony detection can be performed in both cuvette and micro mode.
- With cuvette measurement function, support kinetic detection. (SP-UM100C)
APPLICATION
Ultra-micro ultraviolet-visible spectrophotometer is a very important analytical instrument, whether in the fields of scientific research such as physics, chemistry, biology, medicine, materials science, environmental science, or in modern chemical engineering, medicine, environmental testing, metallurgy Production and management departments, Ultra-micro ultraviolet-visible spectrophotometer have a wide range of important applications. Ultra-micro ultraviolet-visible spectrophotometer is to use spectrophotometry to quantitatively and qualitatively analyze substances, and is often used for nucleic acid, protein quantification and cell culture detection; Ultra-micro ultraviolet-visible spectrophotometer is already a conventional instrument in modern molecular biology laboratory.
SPECIFICATIONS
| Model | SP-UM100/SP-UM100C |
| Test sample capacity | 0.5~2μl |
| Light source | Xenon lamp |
| Detector | 2048 linear CCD array |
| Optical path | ≤0.7mm |
| Wavelength range | 200~850nm |
| Wavelength accuracy | <1nm |
| Wavelength resolution | ≤2nm |
| Light absorption range | 0.04~300Abs (10mm) |
| Light absorption accuracy | 0.002Abs (1mm) |
| Absorbance accuracy | 1%(0.76Abs at 256nm) |
| Detection concentration range | 2~15000ng/μl(dsDNA) |
| Sample base material | 304 stainless steel and quartz optical fiber |
| Measure time | About 5s |
| Power | 20W |
| Power Adapter | 12V ，5A |
| Dimensions | W.197×D.327×H.181mm |
| Net weight | 3.1kgs |
