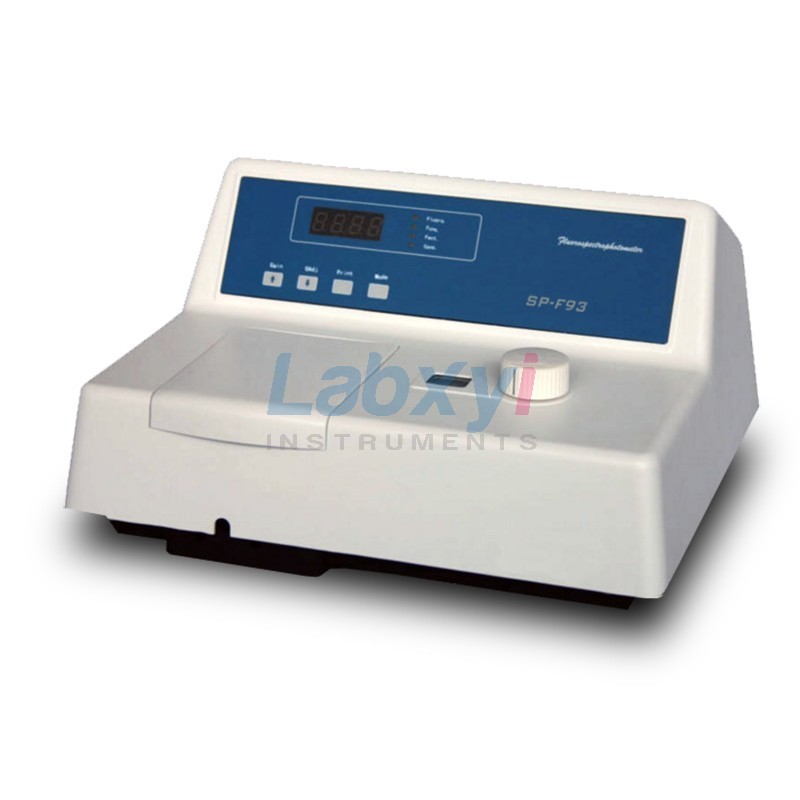

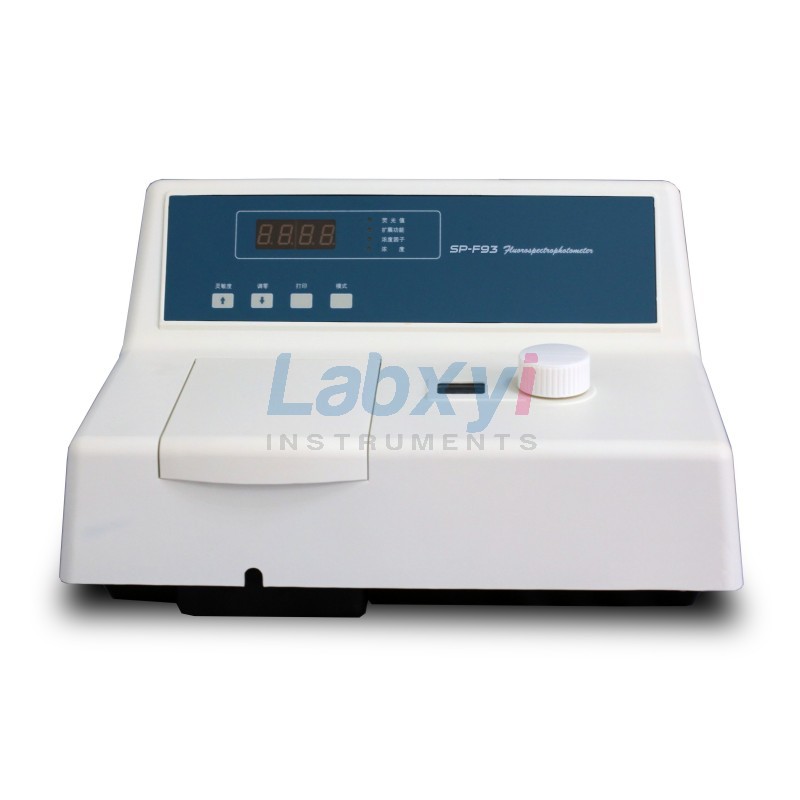

SP-F93 Fluorescence Spectrophotometer (Spectrofluorometer)
Features
- The emission monochromator adopts 1200 line diffraction grating. Its large aperture and non-spherical reflecting mirrors produces extra high sensitivity.
- High stable and long life xenon lamp and power source ensure high stable testing and wide range of spectrum.
- EX light use LED, match with the central wavelength of 365nm,420nm,475nm,525nm narrow banding-ultra low back grounding precision filters to consist 4 set of EX wavelength replacing system. The system can be replaced by customer, Carry on the maintenance expediently & can satisfy more choices and demand;
- The central wavelength of 365nm,420nm,465nm,515nm narrow banding-ultra low back grounding precision filters with low fluorescence background, it’s performance is better than glass filter;
- LED is a cold-light source with longevity, lower background & reliability, prevent from thermo-pollution;
- Automatic zero adjustment and automatic background subtraction; Eight stage sensitivity adjustment; Real time fluorescence reading display and concentration print out, Extra wide dynamic range of fluorescence reading, accurate measurement of minute changes in samples;
- RS-232C serial port interface attached, after option Data Processing Software Package it is convenient to store record & transmit data & draw up a standard operating curve;
- Quality fine, less weight & measure, test simply, particularly suitable for education & Lab.
Specifications:
| Model | SP-F93/SP-F93A |
| Detection sensitivity | Quinine sulfate solution detection limit: 1 x 10-9 |
| Excitation wavelength Bandwidth | 10/20nm |
| Emission wavelength Bandwidth | 12nm |
| Emission Wavelength accuracy | ±2.0nm |
| Emission Wavelength repeatability | ≤1.0nm |
| Light source | High intensity LED cold light source |
| Optical system | C-T manually grating monochromator |
| Fluorescence Receiver | Original photomultiplier (Hamamatsu, Japan) |
| Central wavelength | 365nm (SP-F93) 365nm,405nm,470nm,515nm (SP-F93A) |
| Excitation wavelength range | 250nm ~ 600nm |
| Emission wavelength range | 360nm ~ 650nm |
| Measurement line | ≥0.995 |
| Gain adjustment range | 0~7 position optional |
| Data transmission | RS232 |
| Light value range | 0.00-250 |
| Peak intensity Repeatability | ≤1.5% |
| Power source | 220V / 50Hz, 110V / 60Hz |
| Standard energy consumption | 35W |
| Dimensions (mm) | 360×320×205 |
| Weight | 7kg/9kg |
