Overview

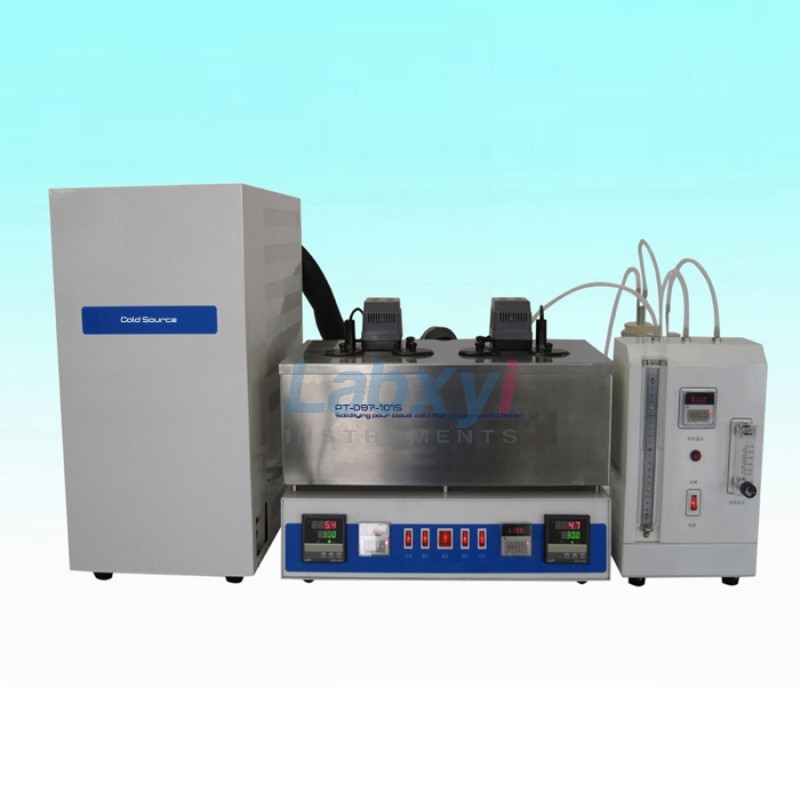

PT-D97-1015A Pour, Cloud, Cold Filter Plugging and Solidifying Point Apparatus is suitable to the standards of ASTM D97 Standard Test Method for Pour Point of Petroleum Products, ASTM D2500 Standard Test Method for Cloud Point of Petroleum Products, ASTM D6371 Standard Test Method for Cold Filter Plugging Point of Diesel and Heating Fuels.& GB/T510 standard of solidification point test of petroleum products. It is used to test the solidifying, pour, cloud and cold filter plugging point of petroleum products.
Features
Professional refrigeration, import dual compressors cooling, cooling rate is fast and stable.
The instrument is made of stainless steel bath, anti-corrosion, two slots and four holes, can precede four experiments within one machine.
Digital display temperature control, high precision, digital timer alarm, easy to adjust.
Using split structure, to avoid cold source compressor working vibration impacting the testing results.
Instrument get reasonable structure, beautiful shape, easy operation.
Technical parameters
Constant temperature bath
1. Rated voltage: AC 220V±10% 50Hz
2. Slot power: 350W×2 (700W)
3. Slot holes: Two slots and four holes
4. Bath volume: 5L
5. Temperature control: Digital display temperature control
6. Temperature range: Room temperature ~ -68°C
7. Temperature accuracy: ± 0.1°C
8. Temperature sensor: Pt100 (Platinum resistor)
9. Timer: Two timer devices
10. Mixing method: Mixing motor, 1200r/min
11. Ambient temperature: 15~30°C Humidity≤85%
Special cold source
1. Rated voltage: AC 220V±10% 50Hz
2. Input power: 800W
3. Cooling time: 100min (Room temperature≤30°C)
4. Downtime duration: ≥20min
5. Ambient temperature: 15~30°C Humidity≤85%
