Purpose

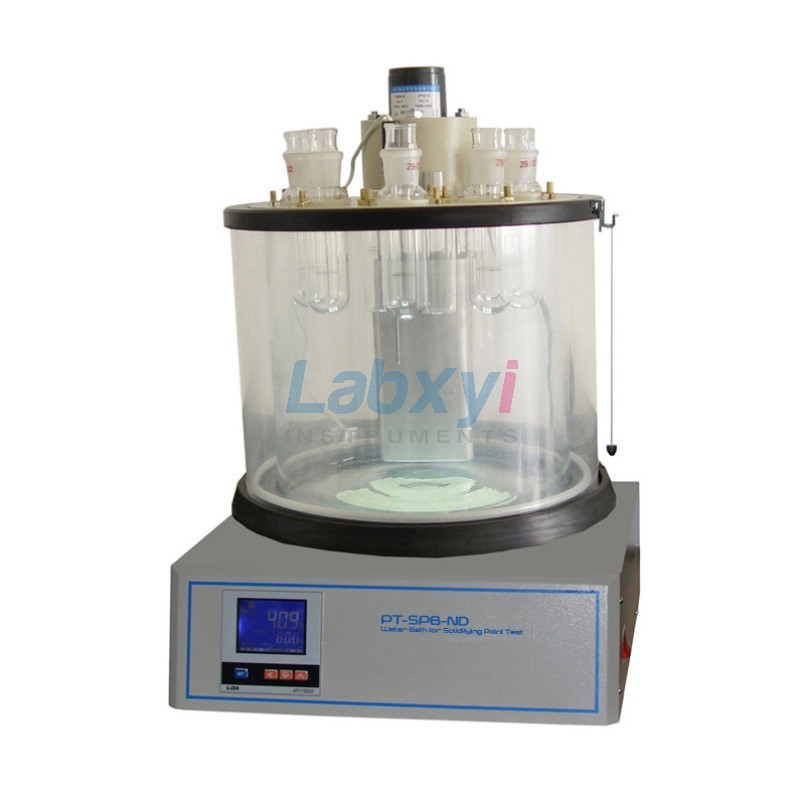

PT-SPB-ND Solidifying Point Constant Temperature Water Bath is designed and made as per requirements for constant temperature water bath stipulated in the National Standard GB/T510 “Test Methods for Solidifying Point of Petroleum Products”. It is used for sample treatment in the range of room temperature to 60 °C.
Technical characteristics
- It uses a two layers cylinder, and electric stirrer, so it can keep temperature stable at controlling temperature.
- It adopts a digital temperature controller, so it is convenient to set temperature with high temperature controlling accuracy.
- You can put 7 pieces of solidifying point test tubes and 2 pieces of cold filter plugging point test tubes in the bath, so it can keep temperature of 9 pieces of samples constant at a time.
- Table structure, newly designed, and it is convenient to be operated.
Technical parameters
- Power supply: AC 220V±10%, 50Hz±5%;
- Heating power: two grades, 1000W and 650 W;
- Stirring motor:
- Power: 6 W;
- Speed: 1200 RPM;
- Measurement range: room temperature ~ 100°C;
- Temperature controlling accuracy: ±0.1°C;
- Constant temperature bath:
- Cubage: 20 L;
- Types: two layers cylinder;
- Working environment:
- Ambient temperature: -10°C ~ 35°C;
- Relative humidity: <85%;
- Temperature sensor: Industrial platinum; scale number is Pt100;
- Total power consumption: not more than 1800 W;
- Dimensions (m): 0.61*0.56*0.76, 0.44*0.44*0.48
