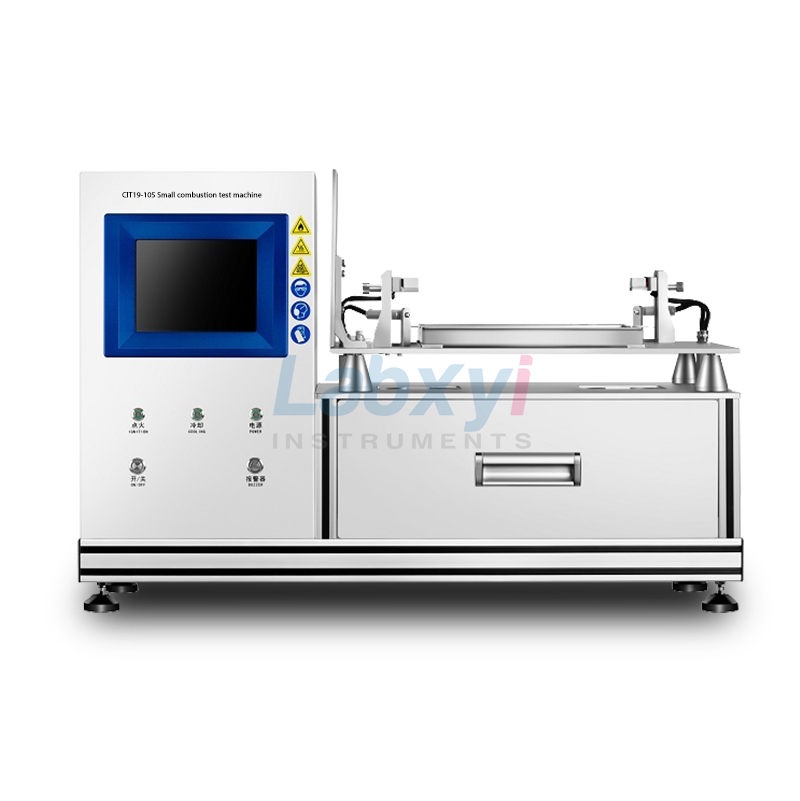

Product description
Small burning tester is used to determine the substance’s reaction to the fire. The instrument complies with the United Nations “on the Transport of Dangerous Goods Recommendations on Tests and Criteria Manual” 13.7.1 Test 3 (d): small burning test.

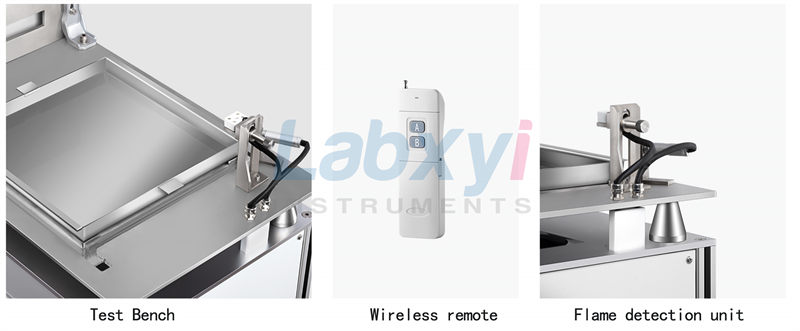

Instrument consist by display control & detection system
Display control system includes power switch, ARM operating system, LCD screen, control buttons and etc.
Display can be touch-type or mouse controlled. LCD display can records all the process.
Remote control ignition & timing.
Product Features
- Embedded processor, Windows CE operating system;
- 8-inch LCD touch screen which can display the test status in real time;
- Equipped with a camera which can shoot the whole testing process;
- Testing process fully automated, no need of human intervention, support parameter setting, data storage, viewing statements;
- Equipped with temperature and humidity module, real-time monitoring of the test environment temperature and humidity.
Product Specifications
| MODEL | CIT19-10S |
| Operating environment | 5 °C ~ 30 °C, <85% RH |
| Ignition | electronic remote ignition |
| Timing accuracy | ± 0.1s |
| ambient temperature measurement range | -10 °C ~ + 60 °C |
| Ambient temperature measurement accuracy | ± 0.5 °C |
| Humidity measuring range | 5 ~ 95% RH |
| Humidity measurement accuracy | ± 3.0% RH |
