Overview

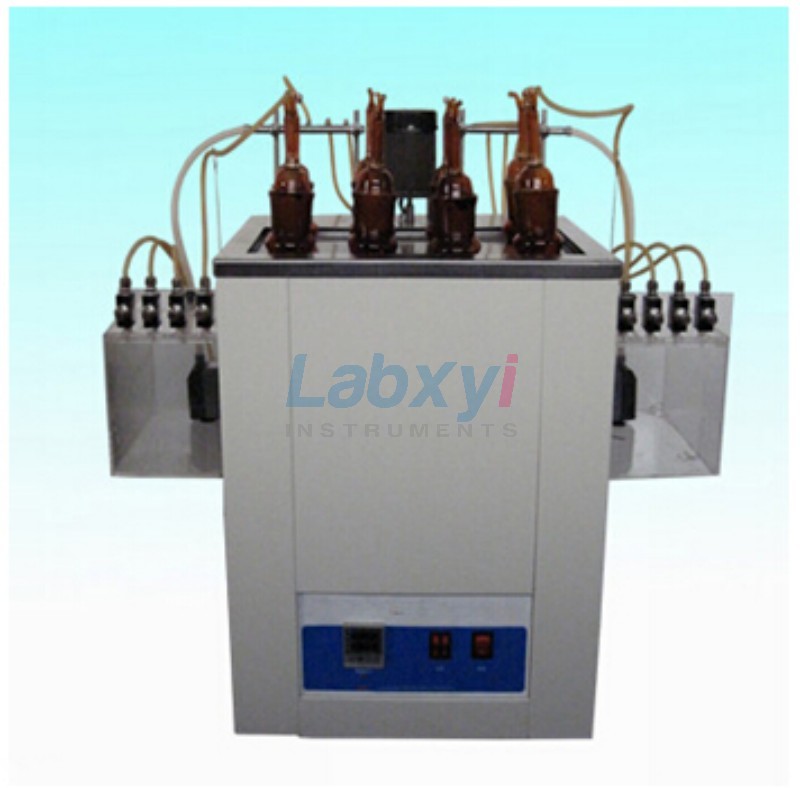

PT-D130-1021 (1021A)Silver strip corrosion tester for jet fuel is suitable to the standards of ASTM D130 and IP227. It can test the resistance to the copper corrosion of aviation gasoline, jet fuel, motor gasoline, natural gas and other products RVP of which RVP is not higher than 124kPa. It can test corrosion tendency of silver component of jet fuel for aviation turbine engine fuel system.
PT-D130-1021: 4 holes
PT-D130-1021A: 8 holes
Features
- The apparatus could be conducted in four-way experiment, two standard experiments, greatly improving test efficiency.
- The apparatus is equipped with stainless steel bath, corrosion-resistant.
- Using of digital display temperature controller, temperature control and high accuracy.
- Simple operation with elegant structure.
Technical parameters
| Model | PT-D130-1021 | PT-D130-1021A |
| Rated voltage | AC 220V±10% 50Hz | AC 220V±10% 50Hz |
| Power | 1500W | 2800W |
| Temperature control | Digital display temperature control | Digital display temperature control |
| Temperature range | Room temperature ~ 100°C | Room temperature ~ 100°C |
| Temperature accuracy | ± 1°C | ± 1°C |
| Temperature sensor | Pt100 (Platinum resistor) | Pt100 (Platinum resistor) |
| Slot holes | 4 holes | 8 holes |
| Mixing method | Mixing motor, 1200r/min | |
| Ambient requirement | temperature 15~30°C Humidity≤85% | temperature 15~30°C Humidity≤85% |
| package size | 56X34X71 cm | 56X34X71 cm |
| gross weight | 21.5 KG | 21.5 KG |
