Overview

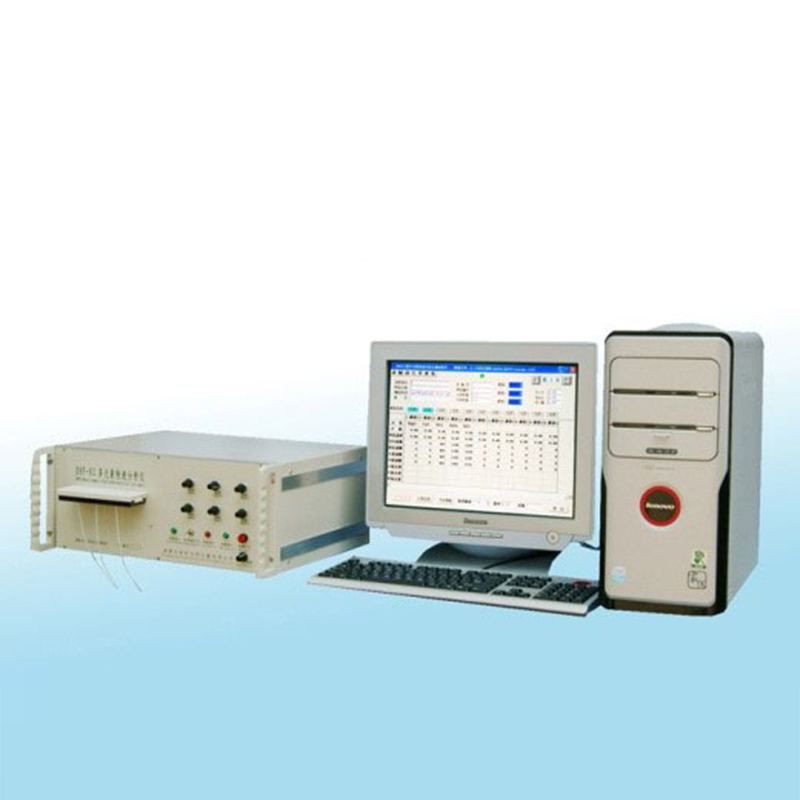

- EA-SR series multi-element rapid analyzer is an analyzer developed based on the principle of photometric analysis.
- It adopts a unique linear expansion and sensitivity improvement method to solve the problem of traditional photometric analysis of high component content deviating from linearity and analyzing low component content.
- This analysis method has significant advantages in the field of silicate system analysis, and is especially suitable for ceramics, refractory materials, cement, glass, geology, non-metallic minerals and other industries.
Main technical parameters
Measurement elements and range of silicate multi-element rapid analyzer:
| SiO2 | 0.2～99% | TiO2 | 0.1～99% |
| K2O | 0.1～15% | MgO | 0.1～99% |
| B2O3 | 0.1～30% | SnO | 0.1～99% |
| PbO | 0.1～99% | Cr2O3 | 0.1～15% |
| BaO | 0.1～10% | P2O5 | 0.1～30% |
| Al2O3 | 0.2～99% | Fe2O3 | 0.1～99% |
| Na2O | 0.1～15% | CaO | 0.1～99% |
| ZrO2 | 0.1～99% | Li2O | 0.1～15% |
| ZnO | 0.1～99% | MnO | 0.1～15% |
| NiO | 0.1～15% | CoO | 0.1～10% |
Quickly analyze the main components of the following chemical raw materials and perform high-precision analysis of low-content components
Silicate multi-element rapid analyzer can extend the
Detection limit: 0.02%
Analysis accuracy is better than 0.02%
Analysis speed: 2 to 3 hours , 4 hours for other elements
Sampling channels: 3 pcs
Sample number of continuous measurement: 10 pcs
