Application scope of Circulation chiller
- CNC machine tools, machining centers, welding equipment
- Printing machinery, chip machinery, food machinery
- Laser equipment, experimental equipment, medical equipment
- Environmental protection equipment, pharmaceutical equipment, new energy equipment
- Injection molding equipment, extrusion equipment, internal mixing equipment

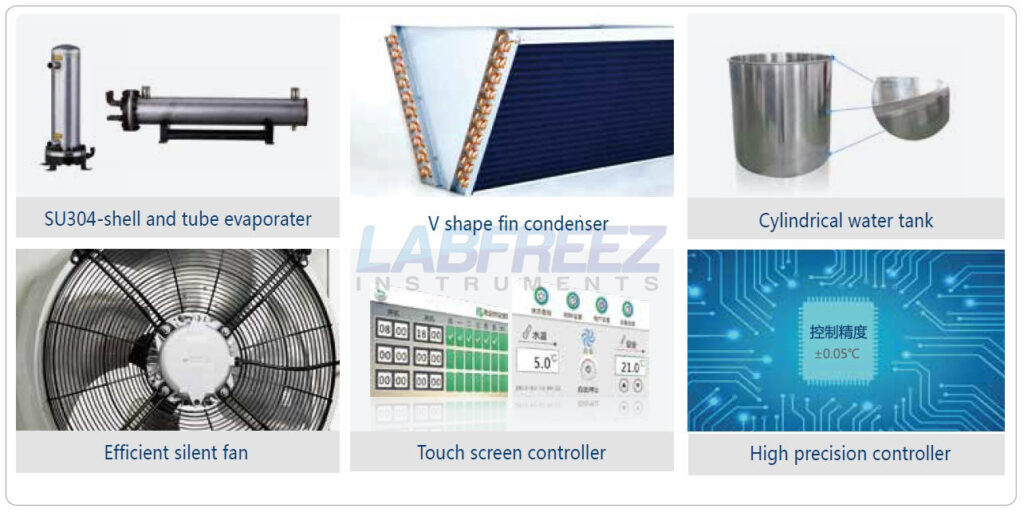

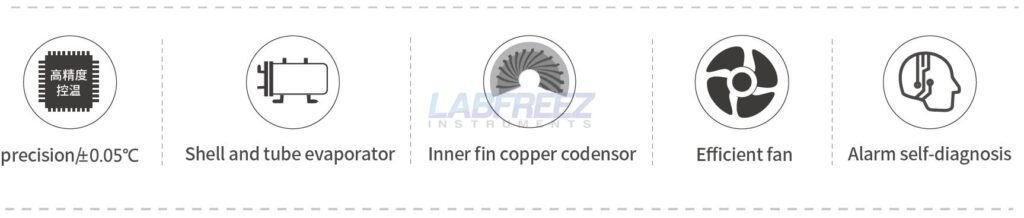

Innovative technology

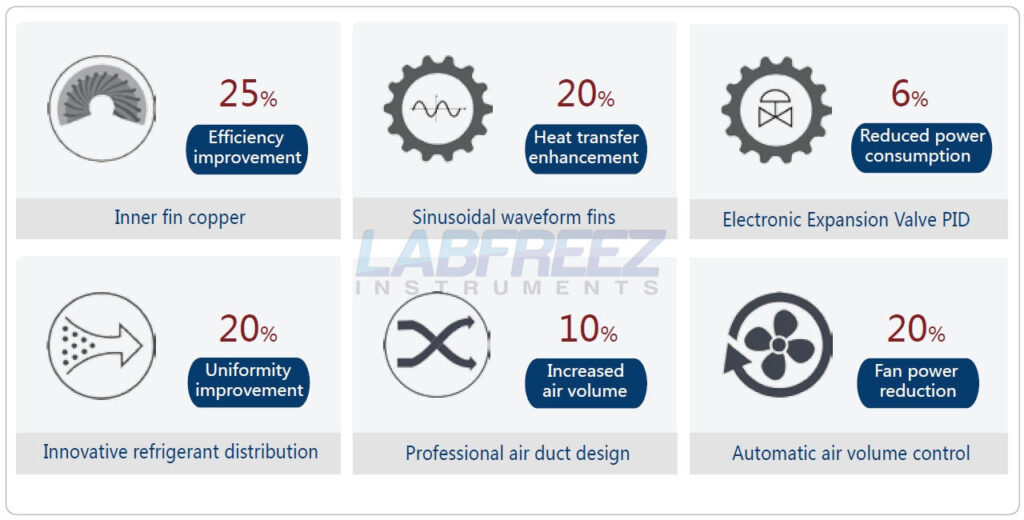

Energy Saving

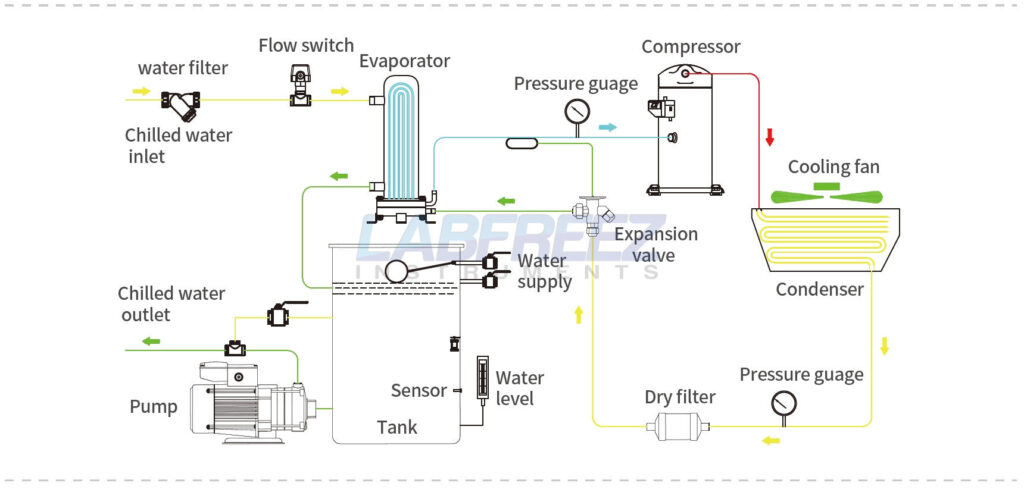

System Chart
Multi-level Protection
SPECIFICATIONS of Circulation chiller
| Model | RC-5-0.6 | RC-5-1 | RC-5-2 | RC-5-3 | RC-5-5 | RC-5-6 | RC-5-8 | RC-5-10 | ||||
| Performance parameter | ||||||||||||
| Cooling capacity | kW | 1.6 | 2.7 | 5.2 | 9.1 | 15.0 | 18.0 | 23.0 | 29.5 | |||
| 103 kcal/h | 1.4 | 2.3 | 4.5 | 7.8 | 12.9 | 15.5 | 19.8 | 25.4 | ||||
| Power source | V/ph/Hz | 220/1/50 | 380/3/50 | |||||||||
| Power input | kW | 0.9 | 1.2 | 2.2 | 2.9 | 5.3 | 6.5 | 8.4 | 10.5 | |||
| Current
Main component |
A | 4.6 | 5.9 | 11.3 | 8.2 | 11.7 | 12.2 | 20.0 | 23.4 | |||
| Compressr | Type | Rotor type | Scroll type | |||||||||
| Power | kW | 0.5 | 0.8 | 1.6 | 2.3 | 4.2 | 5.1 | 6.9 | 8.7 | |||
|
Pump |
Power | kW | 0.25 | 0.25 | 0.37 | 0.37 | 0.55 | 0.75 | 0.75 | 0.75 | ||
| Head | m | 36 | 34 | 26 | 24 | 28 | 33 | 30 | 27 | |||
| Flow | m3/h | 0.28 | 0.46 | 0.89 | 1.6 | 2.6 | 3.1 | 4.0 | 5.1 | |||
| L/min | 4.6 | 7.7 | 14.8 | 26.7 | 43.3 | 51.7 | 66.0 | 85.0 | ||||
| Tank capacity | L | 12 | 20 | 35 | 60 | 70 | 70 | 100 | 135 | |||
| Pipe size/Noise/Weight/Dimension | ||||||||||||
| Pipe size | DN | 15 | 20 | 25 | 40 | |||||||
| Noise | dB(A) | 56 | 58 | 58 | 60 | 61 | 62 | 64 | 65 | |||
| Weight | kg | 50 | 68 | 108 | 140 | 185 | 210 | 260 | 310 | |||
|
|

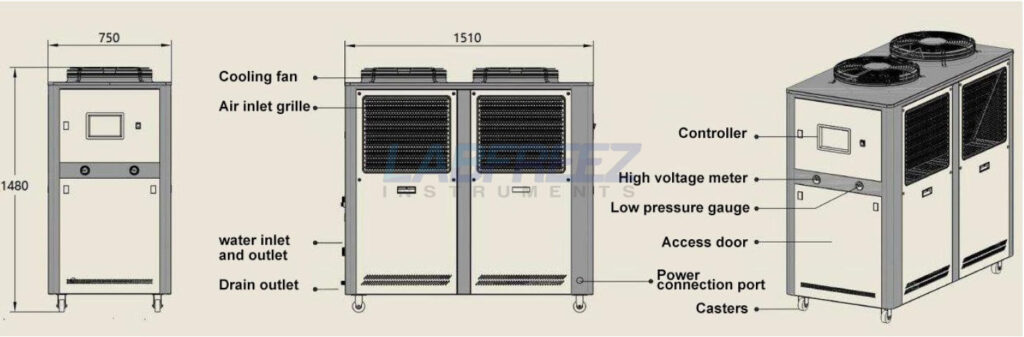

L | mm | 420 | 500 | 600 | 680 | 750 | 750 | 1350 | 1510 | ||
| W | mm | 420 | 500 | 600 | 680 | 750 | 750 | 680 | 750 | |||
| H | mm | 815 | 950 | 1160 | 1360 | 1480 | 1480 | 1360 | 1480 | |||
| Model | RC-5-12 | RC-5-15 | RC-5-20 | RC-5-25 | RC-5-30 | RC-5-40 | RC-5-50 | RC-5-60 | |||
| Performance parameter | |||||||||||
| Cooling capacity | kW | 35 | 44 | 58.5 | 69.0 | 86.0 | 116.0 | 140.0 | 168.0 | ||
| 103 kcal/h | 30.1 | 37.8 | 50.3 | 59.3 | 74.1 | 100.0 | 120.0 | 145.0 | |||
| Power source | V/ph/Hz | 380/3/50 | |||||||||
| Power input | kW | 12.5 | 15.0 | 21.1 | 24.0 | 30.0 | 41.3 | 48.0 | 58.5 | ||
| Current
Main component |
A | 24.0 | 27.7 | 41.7 | 46.7 | 57.0 | 76.0 | 88.0 | 110.0 | ||
| Compressor | type | Scroll type | |||||||||
| Power | kW | 10.1 | 12.5 | 17.4 | 20.2 | 25.0 | 34.8 | 40.6 | 50.0 | ||
| Pump | Power | kW | 1.2 | 1.2 | 2.2 | 2.2 | 2.2 | 3.5 | 3.5 | 4.0 | |
| Head | m | 29 | 27 | 27 | 26 | 25 | 34 | 29 | 25 | ||
| Flow | m3/h | 6.0 | 7.6 | 10.0 | 11.8 | 14.8 | 20.0 | 24.0 | 28.9 | ||
| L/min | 100 | 127 | 167 | 197 | 247 | 333 | 400 | 480 | |||
| Tank capacity | L | 135 | 155 | 230 | 230 | 230 | 300 | 300 | 300 | ||
| Pipe size/Noise/Weight/Dimension | |||||||||||
| Pipe size | DN | 40 | 50 | 65 | |||||||
| Noise | dB(A) | 65 | 66 | 67 | 68 | 68 | 69 | 69 | 69 | ||
| Weight | kg | 340 | 415 | 620 | 670 | 780 | 1100 | 1300 | 1500 | ||
|
|
L | mm | 1510 | 1785 | 2080 | 2080 | 2080 | 2200 | 3000 | 3400 | |
| W | mm | 750 | 915 | 1050 | 1050 | 1050 | 1200 | 1200 | 1200 | ||
| H | mm | 1480 | 1630 | 1820 | 1820 | 1910 | 2135 | 2120 | 2135 | ||
