Overview

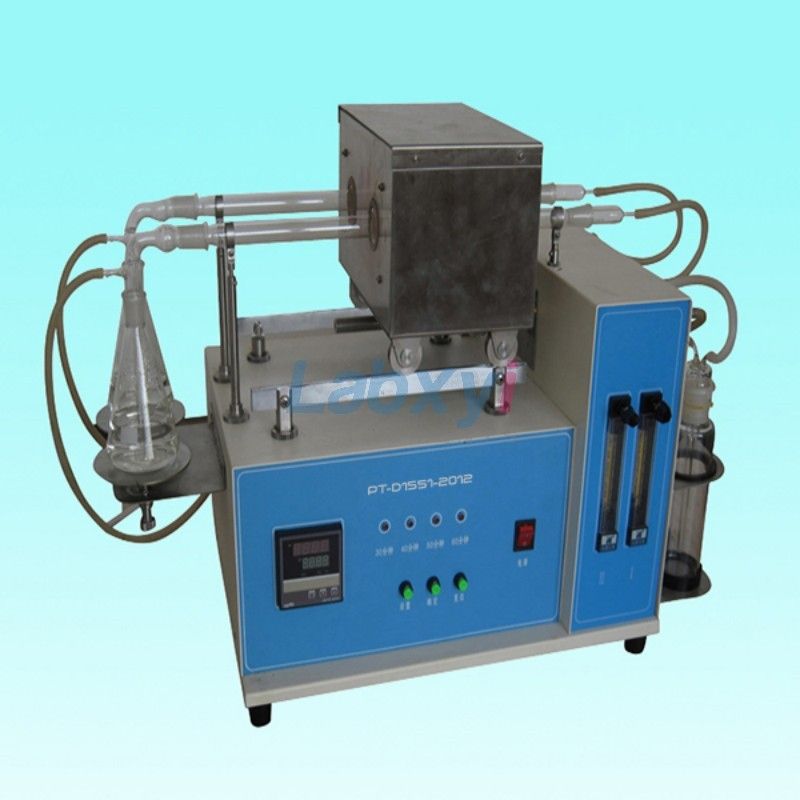

PT-D1551-2012 (PT-D1551-2012A) quartz tube sulfur apparatus (Quartz-Tube Method) conforms to the ASTM D1551 Method of Test for Sulfur in Petroleum Oils (Quartz-Tube Method). Applicable to test sulfur content of lubricating oil, heavy oil products, crude oil, petroleum oil coke, paraffin wax, Sulfur-containing additives and other deep color petroleum products what sulfur content is more than 0.1% (m/m).
PT-D1551-2012: 2 tubes
PT-D1551-2012A: 3 tubes
Features
- The apparatus adopts digital temperature controller, high precise temperature control.
- User can set experimental time by own, suits for all kinds of test requirement, alarm when the test finishes.
- Microchip controls the trip of tubular furnace automatically.
- The apparatus adopts 2tubes (3tubes) Furnace device. Digital display temperature control the tube temperature accurately.
- Rational construction with attractive appearance and easy operation.
Technical parameters
1. Rated voltage: AC220V±10% 50Hz
2. Power: 2200W
3. Mode of temperature control: Digital display temperature controller
4. Range of temperature control: 900~950°C
5. Flowmeter: 100~1000ml/min
6. Thermocouple graduation: K-type
7. Count of heating tubes: 2 tubes
8. Tubular tube route: 150mm
9. Travel time: 30, 40, 50, 60min adjustable
10. Ambient requirement: Temperature:15~30°C Humidity≤85%
11. Overall dimensions: 800mm*380mm*500mm Weight :27kg
