Test Standard: ASTM D 2699-86, ASTM D 2700-86 , ASTM D 4737-03, ASTM D613, EN ISO 5165
Whether in the field or in the laboratory, the PT-OCA-101 analyzer is the leader in portable rapid analysis instruments . The PT-OCA-101 is designed to produce analytical instruments for gasoline, diesel, motor oil and transformer oil .
The rapid measurement method of petroleum product parameters is more efficient than the traditional method, so it has become a trend for this instrument to penetrate into the petroleum product quality measurement instrument market.
PT-OCA series analyzers—octane number analyzer, and petroleum product low temperature parameter analyzer, are used to detect the parameters of diesel oil , engine oil and aviation kerosene. These instruments are widely used in the quality inspection of petroleum products. Portable octane number analyzer is often used for on-site analysis of octane number of motor gasoline, corresponding to motor method and research method ( RON and MON ), and can also be applied to cetane number analysis of diesel . In addition , the temperature of the analyzed liquid and the freezing point of diesel oil can also be measured , and the measurement results are displayed on the LCD liquid crystal display.
PT-OCA-101 octane number analyzer is widely used all over the world. Its measurement method conforms to international standards: octane number measurement conforms to : ASTM D 2699-86, ASTM D 2700-86. Diesel cetane number measurement conforms to: ASTM D 4737- 03, ASTM D 613, EN ISO 5165.
Measurement principle
The principle of the octane number analyzer is to measure the insulation permeability of gasoline octane number and cetane number of diesel oil and the electric charge characteristic of electromagnetic induction . The result is determined by measuring the dielectric properties of the sample and comparing it with known parameters stored in memory . The instrument is very sensitive and can measure small changes in dielectric parameters. It can detect petroleum product parameters such as octane number and cetane number.
Main functions and features
- Measuring gasoline octane number, diesel cetane number
- Measure the condensation point of diesel oil, measure the purity of oil
- Multi-oil measurement mode can be set, methanol gasoline, ethanol gasoline, blended gasoline, etc. can be detected
- Transformer Oil Split Voltage Measurement , Transformer Oil Dielectric Dissipation Measurement
- Conductivity measurement of fuel oil More comprehensive and accurate measurement of various data of petroleum products
- Repeatable margin of error is 0.5 octane units
- Absolute errors are close to static measurements, less than 0.5 octane units.
- Can measure various gasolines with additives

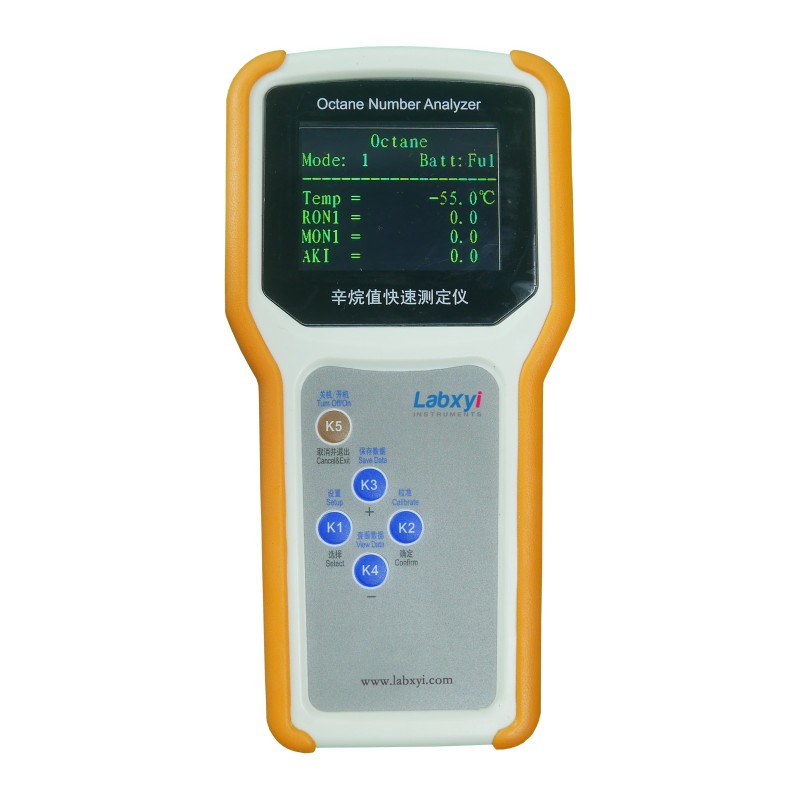

- Simultaneously display RON, MON and anti-knock index (AKI).AKI=(RON+MON)/2.
- Measure diesel cetane number, diesel type and condensation temperature
- Powerful processing chip can process data quickly and accurately, compatible with WINDOW system
- With temperature correction, low cost of use

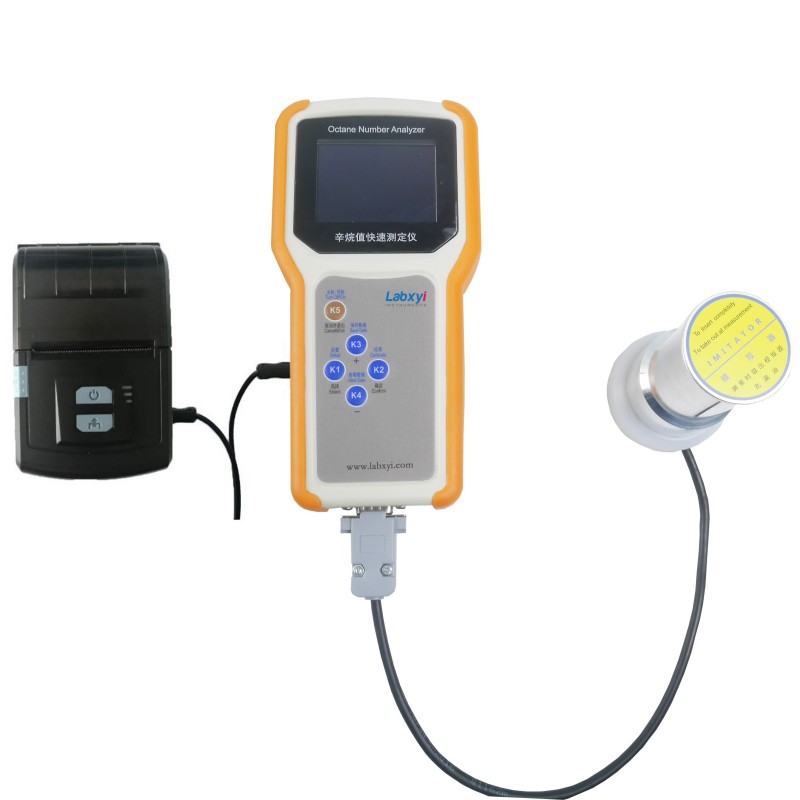

- With printing function
- Simple and easy to operate, small in size, easy to carry, anti-vibration, anti-solvent, and sealed.
- 240*80, advanced OLED colorful 2.8-inch large screen , Chinese and English display , suitable for low temperature environment , power indicator , external low-voltage power supply.
Specifications
MODEL | PT-OCA-101 |
Measurement item | All kinds of gasoline |
Octane measurement range | 40-120 (accuracy 0.5) |
Cetane number measuring range | 20-100 (Accuracy 1) |
Data Display | Digital Display |
Measurement time per sample | <10sec |
Instrument current consumption | 30mA |
battery life | l000hours |
Operating temperature range | -10℃~ +40℃ |
Operating relative humidity | 30% ~ 80%RH |
Operating atmospheric pressure | 64~106kPa |
size | Sensor 60*100mm
Host 100*200*41mm |
