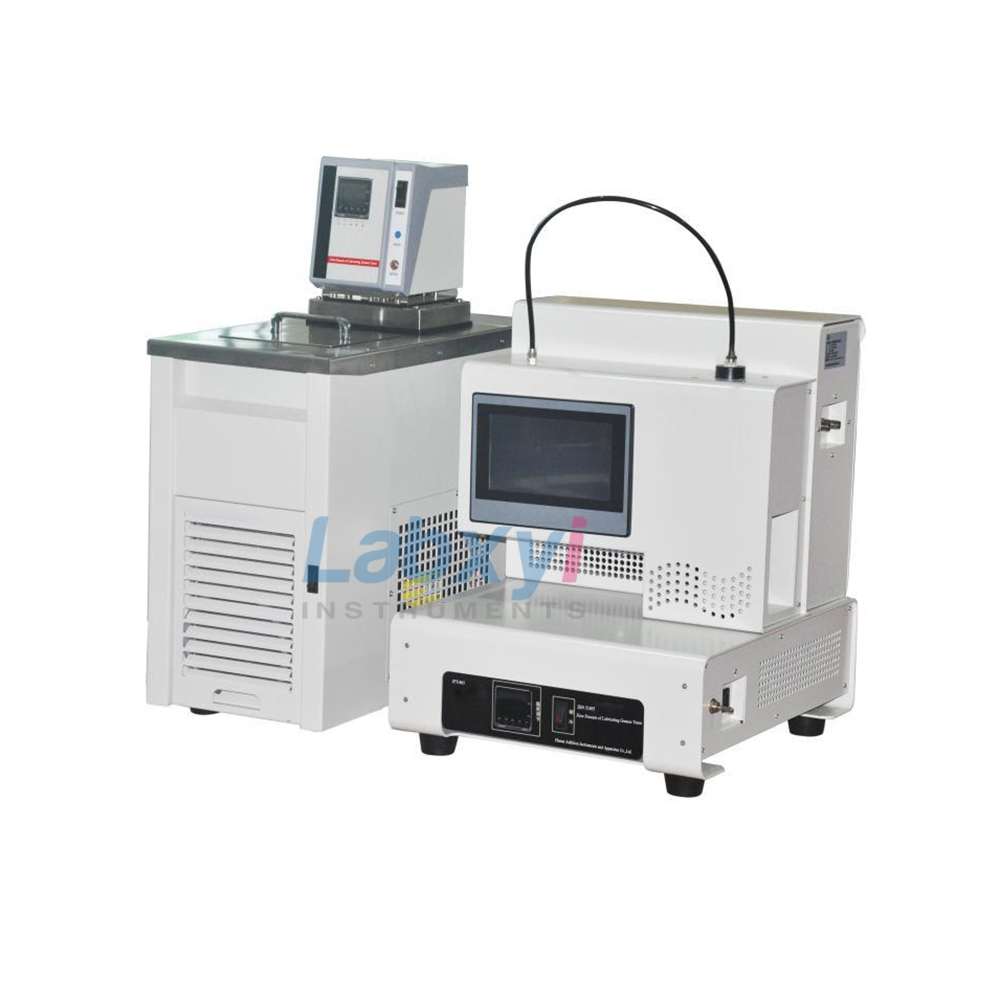

PT-51805-01 Lubricating grease low temperature fluidity tester, Kesterhich METHOD

Instrument Introduction

This instrument is the first of its kind in China and jointly developed with the standard. Its principle is to install the grease, and within a time interval of 30s under the standard temperature, the pressure rises to a certain value related to the flow pressure of the grease, until the grease flows. The mid- section or pressure gas flows out from the test nozzle. Meets standard of DIN 51805

Technical Parameter

1. Temperature control method: digital display PID temperature controller
2. Temperature control range: normal temperature~-40℃, accuracy ±0.1℃
3. Pressure display: digital pressure gauge
4. Pressure regulation: automatic
5. Refrigeration method: semiconductor refrigeration
6. Applicable standard: DIN51805
7. Machine power: 1000W
8. Pressure range: 0~5000mbar
9. Working power supply: AC220V/50HZ

10.main engine Packing size：745 *410 *805mm ; weight：45kg

11. accessory Packing size :525*245*655mm; weight：36kg

Main Feature

1. Manufactured with reference to the new standard, no glass accessories and consumables are

required;

2. Automatically select the expected boost mode of the third gear according to the standard

requirements;

3. Automatic control and measurement of pressure;
4. Large LCD screen touch operation;
5. Semiconductor refrigerator, cooling speed is fast;
6. Realize full automation to replace the original manual and time-consuming instruments;
7. Microcomputer temperature controller, PT100 temperature sensor, high precision;
