Introduction

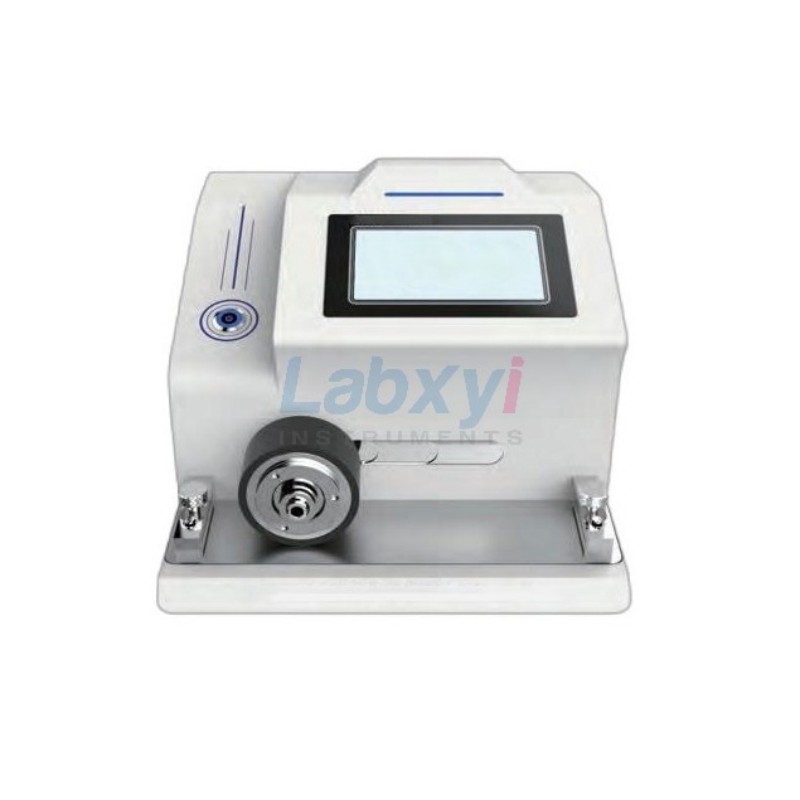

The Adhesive Tape Roller PKT-APR20 is a precision experimental equipment developed and manufactured by LABXYI based on JIS and other standard requirements and market demand. It is suitable for plastic film and cellophane decorative prints (includingomposite film prints) produced by gravure printing process. Carry out the test experiment of the binding fastness of printing ink layer. It is also used to test the adhesion state of the surface layer formed by vacuum coating, surface coating, compounding and other related
Testing Principle
Adhere the cellophane tape that meets the standards and the printed surface of the treated sample ink with the standard load, rolling speed and rolling times, and then peel them off with a certain pressure and peeling speed after placing them for a certain period of time. Open, observe and measure the situation that the ink layer of the sample is peeled off, so as to judge and analyze the bonding fastness of the printed ink layersample ink with the standard load, rolling speed and rolling times, and then peel them off with a certain pressure and peeling speed after placing them for a certain period of time. Open,observe and measure the situation that the ink layer of the sample is peeled off, so as to judge and analyze the bonding fastness of the printed ink layer
Standard
JIS C2107, JIS Z0237
Specification
| Item | Technical parameter |
| Rolling speed | 0~600 mm/min |
| Roller load | 20 N±0.5 N |
| Rolling times | 1~999999 times |
| Roller diameter | 84 mm |
| Roller width | 45 mm |
| Dimension | 440 ×400 ×205 mm |
| power | 350 W |
| Weight | 20kg |
| Power supply | AC 220V，50 Hz |
Features
Advanced configuration,and technology
1.The host is equipped with a color touch screen, which is convenient for users to carry out test operations. Fully automatic operation, one-button operation, automatic shutdown,simple and convenient operation.
2.Using high-precision ball screw parts, the operation is stable, the test machine has a long life, good long-term stability and energy saving. The running speed and running times can be changed freely to meet the requirements of different standards
3.The quality of the pressure roller, the thickness and hardness of the attached rubber are designed in strict accordance with national standards, effectively ensuring the accuracy and versatility of the test data.
Application
 |
Plastic printing
materials |
It is suitable for testing the bonding fastness of printing ink layers on plastic film and cellophane
decorative printed matter (including composite film printed products) produced by gravure printing process. |
Factory Configuration
| Standard configuration | Host, power cord, ferrule, roller assembly, Allen wrench, Phillips screwdriver |
Note: LABXYI has always been committed to the innovation and improvement of product performance and function. For this reason, product technical specifications and appearance will also be changed accordingly. The above situation will not be notified. LABXYI reserves the right of modification and final interpretation.
