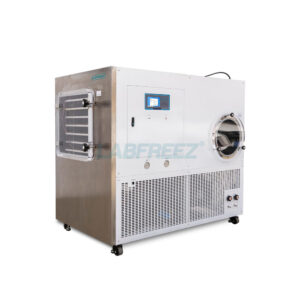

FD-200F Series Pilot Freeze dryer lyophilizer, Air-cooled type

Features:

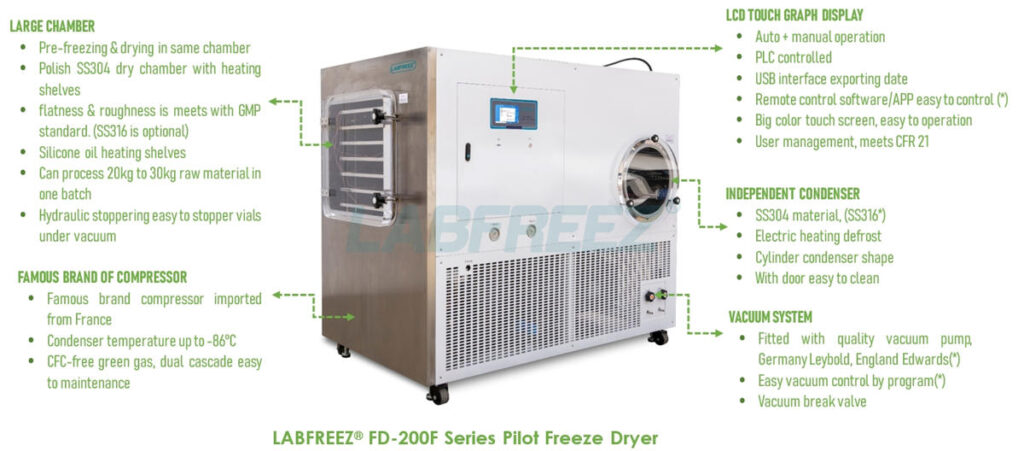

Chamber

1. Rectangular type dry chamber, Pre-freezing, drying in same chamber without any manual operation.
2. Drying chamber & shelves made by polished SS 304 or material contact parts SS316 is optional, adopted high strength, high transmittance plexiglass door, easy to observe, inside round corner, easy to clean.
3. Oil circulation heating type with high temperature precision control, usually suitable for medical, bio field, electric heating type suitable for food field.
4. GUNDFOS shielded circulating pump and PID control electric heating component; circulation liquid used Low-temperature low- viscosity silicone oil.
5. Shelves heating system uses safe voltage, while heating rate controllable. (Electric heating type)

Condenser (cold trap)

1. Made by SS304 drum-type cold trap, with high transmittance plexiglass door, Integrity or separately condenser and chamber can be chosen.
2. Patented gas diversion technology, cold trapping ice even, ice-catching ability.

Refrigeration

1. Dual-stage cooling, famous hermetic compressor which is low noise, capillary throttling technology, air-cooled or water-cooled is available.
2. Brazed plate heat exchanger.
3. Environmental-friendly refrigerant.

Control

1. Flexible manual + automatic control, manual groping process, automatic batch production.
2. PLC control with 7’ LCD touch graphic display, can be operated in auto, semi-auto and manual mode.
3. Shelf temperature adjustable, controllable, explore suitable for pilot and production processes.
4. 32 programs, each program can be set as 36 segments, curve can be stored, processing parameters can be modified in real time.
5. Built with recorder, with USB interface data can be exported to computer for analysis, FD-LYO software & computer is optional for controlling by remote way.
6. sensor calibration function, to ensure long-term use of the accuracy of the measured value.
7. Real-time alarm display and historical alarm inquiry function, convenient fault diagnosis and equipment maintenance.
8. Users can set the level and password, decentralized operation and management.

Vacuum

1. Two-stage rotary vane vacuum pump, vacuum is automatic adjust and can be set (optional).
2. Ultimate vacuum can reach 5 Pa, in order to reach highest vacuum, Leybold brand vacuum pump is optional.

Others

• Normal type suitable for bulk raw products like food, fruit, herbal medicine and bio material. Stoppering type suitable for vials comes with cap, to stoppering caps into the vials.
• Inflatable (water) valve with a safety diaphragm valve can be connected to the inert gas source, dry and filled with inert gas, to extend the shelf life of the material.
• CE/ISO 9001 13485 14001 certificated.
• Can be conforms to GMP standard.

Specifications:

FD-200F Series	Model	FD-200F-R	FD-200F-TP
	Heating type	Silicone oil circulation	Silicone oil circulation
Drying chamber	Freeze-drying area	2.25 m2	1.98 m2
	Shelves quantity	5+1pcs	4+1pcs
	Shelf Temperature	-50°C ~70°C	-50°C ~70°C
	Shelf Temp. Accuracy	± 1°C	± 1°C
	Shelf spacing	80~100mm	80~100mm
	Size of shelves	500*900*20 mm	610*810*20 mm
Vials load capacity	Ф22 vials (PCS)	4100	3600
	Ф16 vials (PCS)	7800	6800
	Ф12 vials (PCS)	14400	12600
Condenser	Max temperature	≤-75°C	≤-75°C
	Water-capture capability	40 Kg/24h	40 Kg/24h
	Material Capacity	22L	20L
	Defrost	water soaking	water soaking
	Material	SS304 or SS316	SS304 or SS316
Basic parameters	Vacuum degree	≤5 Pa	≤5 Pa (Range:1~300Pa)
	Dimension	1200*2100*1700 (mm)	1300*3300*2500 (mm)
	Max Power	13.5kw	15kw
	Weight	2300 kg	2600 kg
	Data Process	RS232 Interface or USB
	Control method	PLC auto + manual
Refrigeration unit	Compressor	Bitzer or TECUMSEH, 2 set
	Power	7 Kw
	Refrigerant	R507 & R23
	Cooling type	Air cooled
	Pressure controller	DANFOSS
	Expansion valve	DANFOSS
