1400℃ manual door industrial furnace is used for sintering magnetic materials, lithium battery materials and ceramic crafts
Features
The furnace is made of lightweight ceramic material, which heats up quickly and keeps the heat well.
High-strength furnace splicing technology ensures the furnace is strong and durable

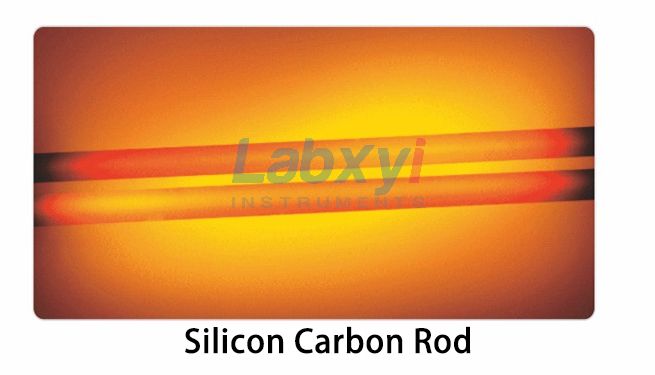

Adopt SIC silicon carbon rod, the highest temperature can reach 1500℃, silicon carbon rod quick connection design
Very convenient to replace
4. Adopt intelligent PID temperature control instrument, which can be programmed in 30 sections, has temperature compensation and temperature correction functions, and the accuracy is +1°C
The product has passed the EU CE certification, and the electrical design is safe and reliable
Technical Parameters
| model | PH-IFM3614 | PH-IFM4514 | PH-IFM6414 | PH-IFM8014 | PH-IFM9614 |
| Furnace size
(WxDxH)mm |
300x400x300 | 300x500x300 | 400x400x400 | 400x500x400 | 400x600x400 |
| Rated temperature | 1400℃ | ||||
| Operating temperature | 1300℃ | ||||
| Supply voltage | 380V/12KW 380V/15KW 380V/18KW | 380V/20KW | 380V/21KW | ||
| Heating elements | Silicon Carbon Rod | ||||
| Furnace material | Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration molding | ||||
| Temperature control accuracy | ±1℃ | ||||
| Temperature measuring element | S-type platinum-rhodium thermocouple | ||||
| Temperature control instrument | Intelligent microcomputer PID temperature control instrument, SCR/SSR control, PID parameter self-tuning function; 30 programmable time periods, program heating, program insulation, program cooling | ||||
| Heating rate | 125℃/min freely adjustable | ||||
| Furnace structure | Furnace temperature control integrated structure | ||||
| Device protection | Modular control, which will send out sound and light alarm signals for over-temperature and broken circuit in the working process, and automatically complete the protection action | ||||
| Security protection | The equipment is equipped with a circuit breaker, which will automatically pop open in the event of a short circuit or leakage, thus protecting the equipment and operators. | ||||
| shell | High-quality cold-rolled steel plates are processed by CNC machine tools, and then welded, ground, polished, phosphated, pickled, and electrostatically sprayed with plastic powder on the surface. | ||||
| Quality Certification | ISO9001 CE SGS TUV | ||||
| Standard Configuration | 1. Furnace body 1 set 2. Temperature controller 1 set 3. Power cord 3 meters 4. Thermocouple 1 piece 5. Instruction manual 1 set 6. Crucible tongs 1 set 7. High temperature gloves 1 pair | ||||
| Optional Accessories | 1. Optional exhaust chimney for exhausting volatile substances 2. Optional corundum crucible, furnace bottom plate, shelf plate and other kiln tools 3. Optional paperless recorder for online recording of temperature curve | ||||
