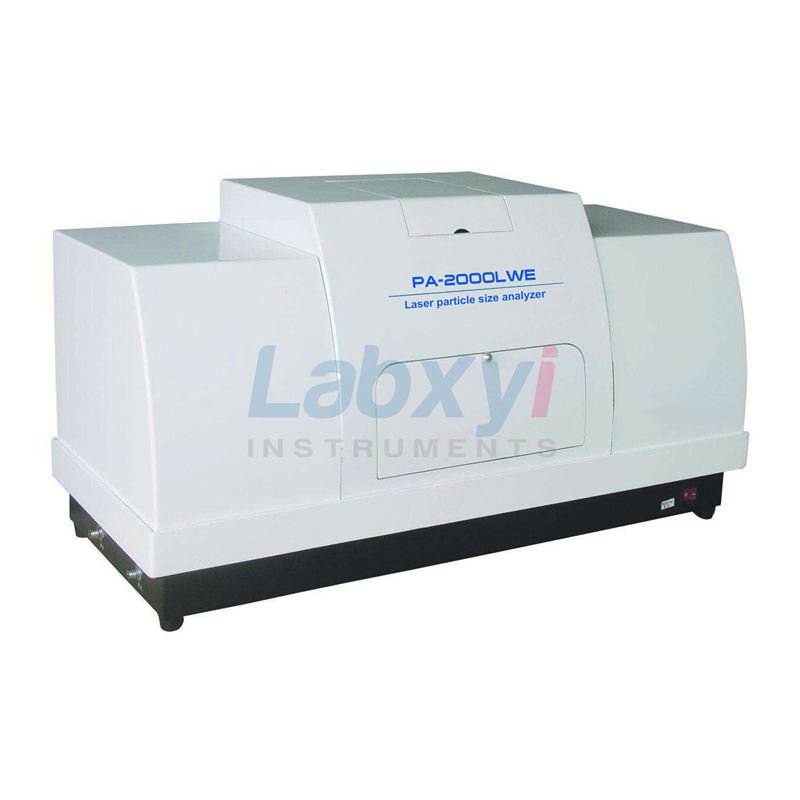

PA2000LWE intelligent laser particle size analyzer, perform auto test, auto alignment, auto water supply, auto drainage, auto bubble removing, auto ultrasonic dispersion, auto cleaning etc., really realize one-key operation. It adopt full built-in sampling system, effectively prevents large particles sedimentation problems in the circulation pipeline, ensure good accuracy. It adopts comprehensive Laser diffraction particle size measurement principle with highly sensitive ring photoelectric detector improving the test accuracy greatly, Original designed unconstrained free fitting software technology, a true reflection of the particle size distribution, to ensure truth and accuracy of the test results. Therefore especially suits the laboratories of enterprises, colleges and universities and research institutes to use.
Main Features
- Advanced design of light path:
A patented technique of Fourier transform of converging light released the scattered light at large-scattering-angles from the restriction of the aperture of the Fourier lens. The focal length is reduced to enhance the resolution of the instrument, and ring shaped of multi-element silicon photo-diode ensure gathering all the light signals of particles, highly improve the resolution.
- Built-in dispersion units:
We carefully aligned the stirring set-up, the ultrasonic dispersing unit and the sample circulation pipes, and fixed them inside the instrument. Such a built-in design effectively prevents the inhomogeneous dispersion and sedimentation of big particles, which can be observed in the designs that these dispersing units are separated from the instruments, where the sample circulation pipes are therefore too long, The sample will be sufficiently dispersed.
- Unconstrained fitting techniques:
The particle analysis software uses a unique unconstrained data fitting technique that we developed to obtain data of real particle size distribution, this is particularly important for researchers.
- Micro sample chamber (optional):
The capacity of the sample chamber is as small as only 10ml. This helps with measuring expensive/precious samples, or samples difficult to be dispersed within medium.
- Modern measurement control:(Intelligent SOP Operation)
Users can perform all measurement procedures by simply operating on the PC and have ideal results in a very short time.
- User-friendly Operation:
manual mode and the automatic mode, freely choose, to measure according to the sample features. In some conditions (e.g. the sample have unknown features or there are special requirements for the measurements), users can make a test measurement in the manual mode first, and after having an idea of the sample features and the measurement conditions, measure the samples in the automatic mode.
- Fully automatic light path alignment:
A precise four phase hybrid stepping motor automatically aligns the optical path and can adjust it at any moment, precision is up to 0.1um, This releases users from manual adjusting the optical path and improved accuracy and stability of the measurement results.
- Quick measurements:
set “ automatic” mode, all operation procedures are performed automatically,automatic water supply, automatic ultrasonic sample, stirring, circulation,background testing, sample testing,analysis , draining and cleaning, which significantly reduces the time for measurements, the full process only take 2 minutes.
- Data analysis
Errors in the data are rejected and the measurement results are automatically processed. Manual data processing is not necessary and the output is more standard.
Main Specifications
| Model Name | PA-2000LWE | |
| Standard | ISO13320-1:1999 | |
| Principle | MIE scattering principle | |
| Measuring Range | 0.1μm-300μm | |
| Channels Number | 39 PCS | |
| Accuracy error | <0.5% ( CRM D50 ) | |
| Repeatability error | <0.5% ( CRM D50 ) | |
| Light source | High performance He-Ne Laser
(λ= 632.8nm, P>2MW) Lifetime>25000hour |
|
| Dispersion Method | Ultrasonic | Frequency:40KHz
Power:50W Time: ≥1S |
| Stir | Revolutions Speed: 0-3000RPM (Adjustable) | |
| Circulate | Rated Flow:8L/min
Rated Power:10W |
|
| Sample Pool | Volume:350mL | |
| Micro-Sample Pool | Volume: 10mL ( Available) | |
| Operation Mode | Full automatic and manual control, freely choose | |
| Output parameter | D10,D50,D90,D100,S/V referent parameters | |
| Optical Calibration System | Full automatic | |
| Test Speed | <2mins for each time | |
| Volume | 88×39×47 (cm) (L*W*H) | |
| Net Weight | 41Kg | |
Software Function
- AnalysisMode
- Free Distribution, R-R Distribution, Logarithm Normal Distribution, Mesh number classification etc. meet different demands of particle size statistic in different industries.
- Statistic Method
- Volume Distribution, Quantity Distribution
- Statistic Comparison
- Statistic SeveralTesting Results to compare and analyze
- Getdifference by compare test result of different batches of samples, samples before and after processing, and different
- Havegreat practical significance to industrial raw materials quality control
- User-defined Analysis
- Figure out percentage according to the particle size Figure out particle size according to the percentage
- Figure out percentage according to the particle size range
- Meet demands of representation of particle test in different industries.
- Test Report
- Word, Excel,Photo( Bmp), Text etc.
- Multiple language Support Chinese & English (Others are available)
- Intelligent Operation Mode
- Automatically control water inflow, dispersion,test and analysis. Better Repeatability after remove human-factor
Application
- Non-metallic powderssuch as calcium carbonate, talcum powder, kaolin, zirconium silicate, wollastonite, graphite, silica powder, tourmaline, mica, barite, plaster, bentonite, diamond, quartz, diatomite, feldspar, calamite,clay, garnet, vermiculite, Titanium white power,
- Metallic powder suchas aluminum powder, iron powder, magnesium powder, molybdenum powder, copper powder, zinc powder, other rare metal power and varied alloy powder,
- Pharmaceutical, agriculturalpesticide, grinding particle, foodstuff, scientific research, teaching, cement, ceramic, glass, chemical industry, military industry, soil, toner,pigment, oil exploration, geological analysis, river silt and electronic particle,
Report Interpretation
- D10=X,means ≤X particle size’s particle volume content occupy 10% of all the
- D50=Y,means ≤Y particle size’s particle volume content occupy 50% of all the
- D90=Z,means ≤Z particle size’s particle volume content occupy 90% of all the
- DAV:Average particle size of particles group
- S/V:Specific surface area, surface to volume ratio/ Surface area per unit volume
- D[3,2]Weighted average surface area
- D[4,3]Volume weighted average
- ParticleSize Analysis Chart illustration:
- Thetransverse is the particle size value, and value is logarithmic
- Theleft column is the volume of the cumulative percentage, the corresponding curve is upward
- Theright column is percentage of the volume of a certain interval, corresponding to histogram or undulating
- Thedata list is corresponding to the test result of analysis
