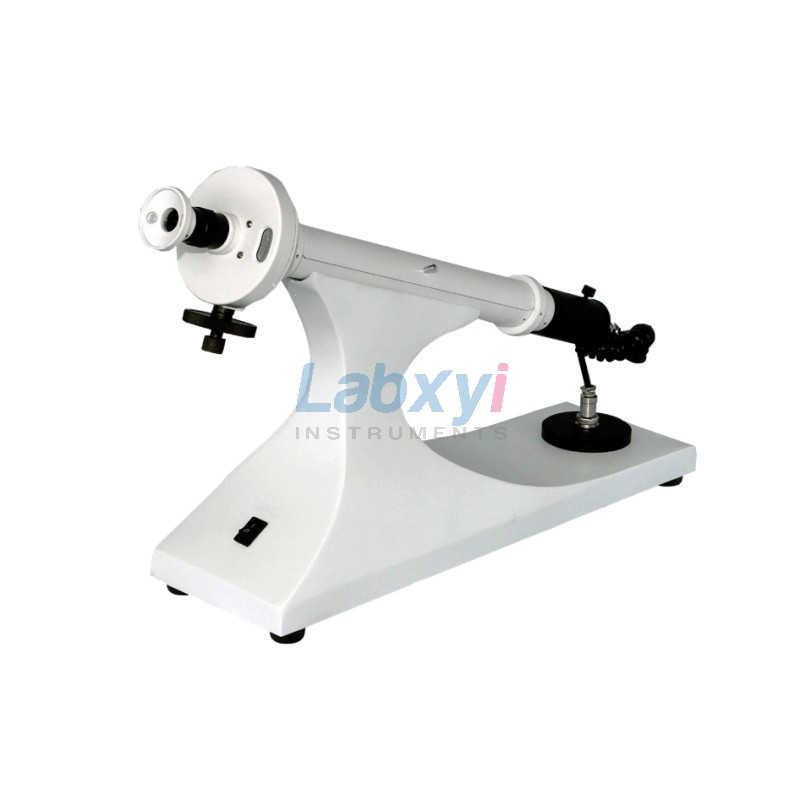

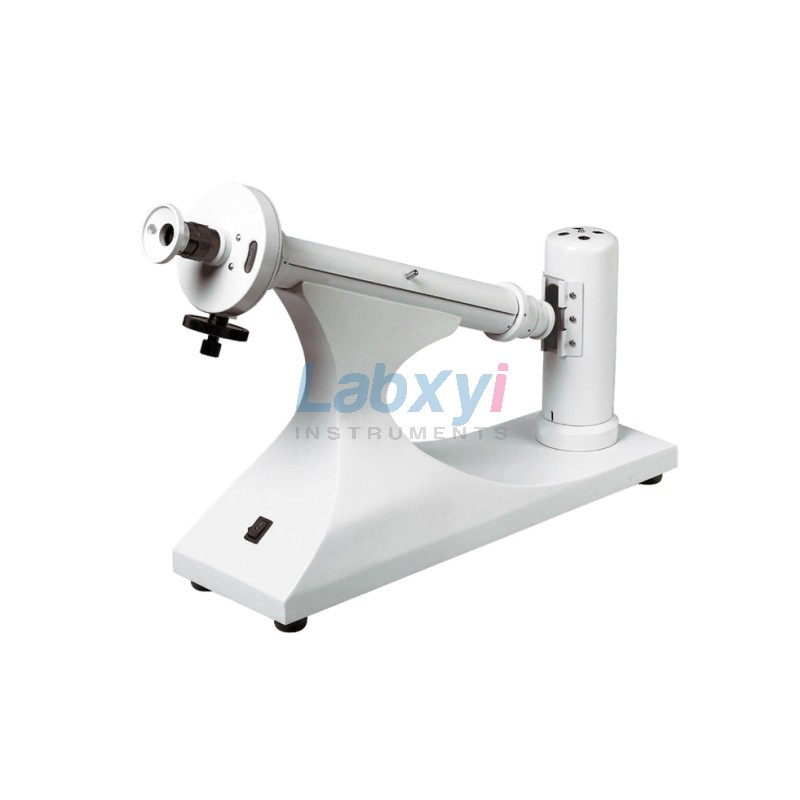

OPM-4L OPM-4
Characteristics
- Visualaim  Manual measure • Easy to operate
Specifications
| Parameters/Model | OPM-4 | OPM-4L |
| Measuring range | ±180° | |
| Light source | Sodium Lamp | LED + interference filter |
| Wavelength | 589nm | |
| Division Value | 1° | |
| Dial Venire Value in Reading | 0.05° | |
| Magnifying Factor of the magnifier | 4X | |
| Test Tube | 100mm / 200mm (regular) | |
| Power supply | 220V±22V , 50Hz±1Hz | |
| Overall dimensions | 600mm×220mm×400mm | |
Micro Tube
- With sample loading capacity about 0.8m landlength of 50mm, suitable for automatic polarimeter.
Thermostatic Tube
- Dedicated to polarimeters that have temperature control function.
- For the length of about 100mm, the sample loading is 2.5ml;
- And the non-corrosive type is optional to purchase.
Standard Quartz Tube
- The only calibration equipment for standard polarimeter and optical Brix; with stable performance leas influence by the environment, and easy-to use features.
The reading of quartz tube includes +1°,+5°+10°+17°+20°+30°+34 +68°,for customers to choose.
