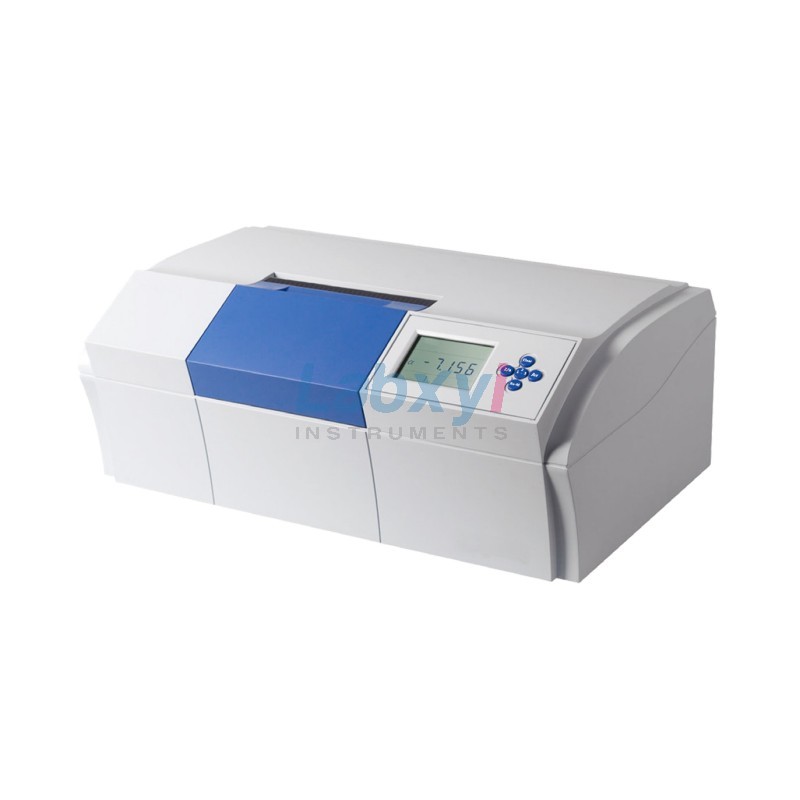

OPM-2S / OPM-2B Digital Automatic Polarimeter

SKU: OPM-2S / OPM-2B Category:

Characteristics

  • Photoelectrictest and microcomputer
  • Measuringoptical rotation and sugar degree (OPM-2S).
  • Storageof three times
  • Calculationof average
  • Measurementof dark-colored



Specifications

Parameters/Model OPM-2S OPM-2B
Measuring mode Optical Rotation, International Sugar Scale Optical Rotation
Light Source LED + interference filter
Wavelength 589nm
Measuring range ±45°(OR)

±120°Z(ISS)

±45°(OR)
Resolution 0.001°(OR)

0.01°Z(ISS)

0.002°(OR)
Accuracy ±(0.01+measuring value x 0.05%)°(OR)

±(0.03+measuring value x 0.05%)°Z(ISS)

±(0.01+measuring value x 0.05%)°(OR)
Repeatability ≤0.002°(OR) ≤0.01°(OR)
Min transmission 1% 10%
Display 5 inch LCD
Test Tube 100mm 200mm (regular)
Interface RS232
Power supply 220V±22V,50Hz±1 Hz,150w
Overall dimensions 730mm×480mm×470mm
Weight (Gross) 36kg
