Applied to biological, pharmaceutical, food crystal beverage and chemical environmental protection industries
Process principle
In order to achieve the purpose of separation and purification, the permeation membrane is selected as the separation medium, and a driving force is applied on both sides of the membrane so that the raw material side components selectively permeate through the membrane.
Features
| Operate under room temp. | Very little loss of active ingredients, especially suitable for heat sensitive substances |
| No phase change | Maintain the original flavor, and consume very low energy |
| No chemical changes | Typical physical separation process, without chemical reagents and additives, products are not contaminated |
| Good selectivity | Material separation can be done in the molecular range |
| Wide range of applications & strong adaptability | Large or small scale, continuous or Intermittent, Simple process, convenient operation and easy automation |
Range classification
Divided into microfiltration MF, ultrafiltration UF, nanofiltration NF and reverse osmosis RO according to membrane size
Basic information
- Model: MSE-1812
- Processing capacity: 3 ~ 20L/H
- Membrane element: GE imported roll type membrane, Single membrane area0.26㎡
- Power unit: Imported GRUNDFOS pump
- 0 ~ 16.8Bar（Frequency adjustable）
- Material circulation tank: Effective volume V=16L
System overview

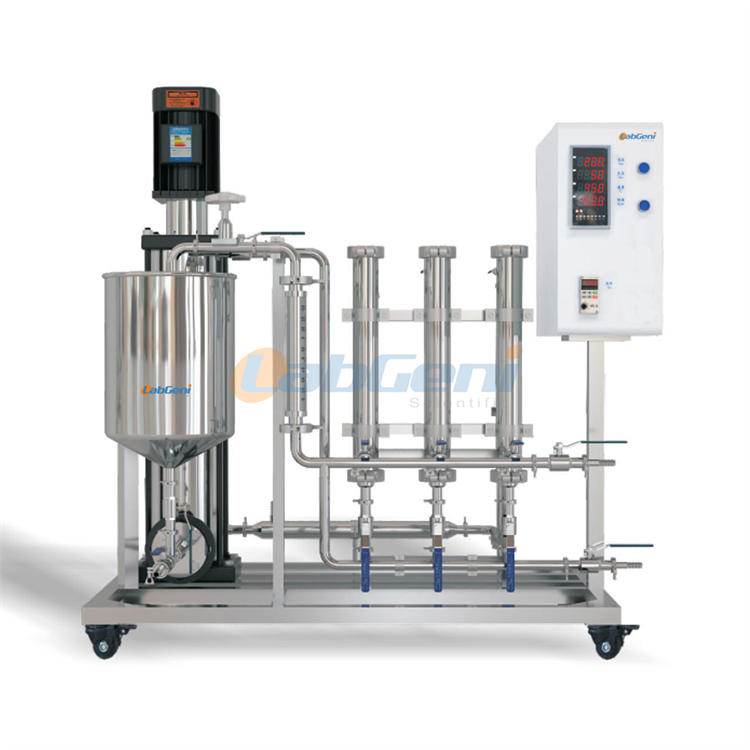

- Laboratory type LABGENI® MSE-1812 (manual) mainly used in separation and purification of ultrafiltration (UF), nanofiltration (NF) and reverse osmosis (RO), can be used for filtration, decoloration, desalination, purification and concentration
- According to the size of the molecular weight of the separation material, the membrane is selected; The material from 0.03 mu m to 100daltion can be separated.
- With the advantages of easy cleaning, maintenance and high freedom of use.
 |
Power unit

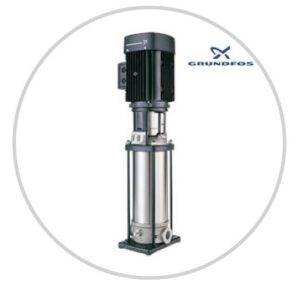

●Imported GRUNDFOS pump ●Variable frequency control, adjustable from 20 to 50Hz, with wide range of use ●Rate of flow: 200 ~ 1100L/H ●Pressure: 0 ~ 16.8Bar adjustable
|
 |

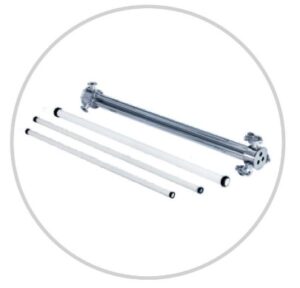

Membrane Shell
●3 parallel membrane wall ●Connection: High pressure clamp quick release connection, pressure 20Mpa ●Material: AISI 304 ●Surface treatment: External surface brushed treatment, inner surface mirror polishing, with food hygiene grade
|
 |

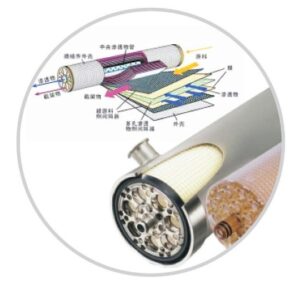

Roll type membrane elements
●3 pieces GE imported roll membrane ●Model No.: 1812 industrial separation membrane, anti fouling membrane ●Scope of application: microfiltration, ultrafiltration, nanofiltration, reverse osmosis ●According to the user process, can select different brand 1812 membrane with the same specifications, including domestic roll membrane
|
 |
Control cabinet
●Field instrument control cabinet ●Control mode: PID instrument control, automatic adjustment ●Sensor: Temperature electrode, pressure sensor, frequency conversion motor ●Flow meter: Field flow meter, manual adjustment ●Instrument: Four in one display + control instrument, frequency conversion regulator
|
 |
Material standard

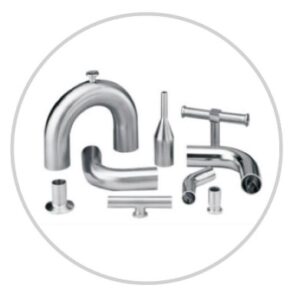

●Contact material part: Material AISI 304, sanitary hose |
Specification parameter of Roll membrane Separation ultrafiltration equipment
| Model | MSE-1812 |
| Processing capacity | 3 ~ 20L/h |
| Power unit | Imported GRUNDFOS pump, frequency conversion control, with high voltage protection settings |
| Working pressure | 0 ~ 16.8bar adjustable |
| Membrane element | ● Membrane species: GE imported roll type separation membrane – roll type ultrafiltration, nanofiltration, RO membrane ● Quantity: 3● Single membrane area: 0.26㎡● Membrane element length: 298.5mm ● Membrane shell: Material AISI 304, high pressure clamp quick disconnect, Anti-pressure : 20Mpa●Membrane aperture: Interception accuracy >95%( Standard material test) MWCO 200KD,100KD, 10KD,5KD, 2K,1K,600D,300D,150D,100D, RO, customized |
| Valves, flowmeter | Sanitary ball valve and rotor flowmeter |
| pipeline | Material AISI 304, sanitary inside and outside polishing, with stainless steel pipe heat exchanger |
| Electric control cabinet | ● Online monitoring of temperature, pressure and liquid flow rate
● Pump frequency conversion controller, real-time display of speed and frequency ● Temperature and pressure preset alarm |
| Material circulation tank | AISI 304, effective volume =16L |
| System upgrade | ●Material, heat exchanger, flowmeter, valve, pump, etc., can be customized according to the user’s environment
●Semi automatic and automatic control system can be customized according to user requirements |
| Size | 875x655x1205mm |
| Weight | 70kg |
