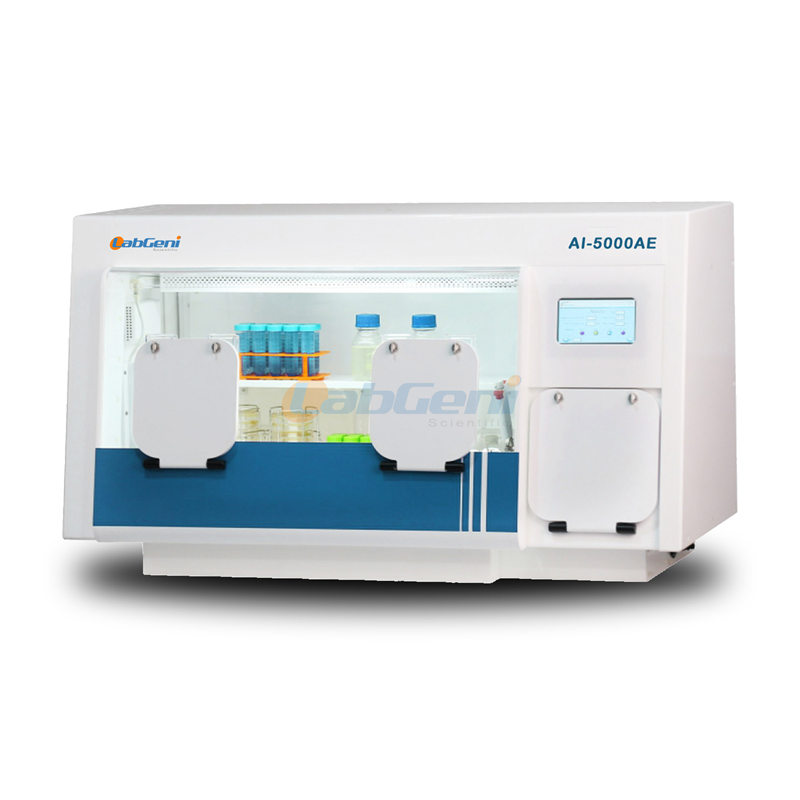

AI-5000E Anaerobic Hypoxic Workstation used for inoculation, continuous cultivation, passage, medium conversion, observation, identification, and other work of microorganisms in anaerobic and hypoxic environments. Able to cultivate anaerobic and microaerobic bacteria; Capable of cell culture and precise control of oxygen and carbon dioxide concentrations, Cell experiments such as intermittent hypoxia, high and low oxygen fluctuations, extreme high and low oxygen, and intermittent hypoxia can be conducted.
Operating conditions
Power supply condition:220V,50/60Hz
Maximum current: 4A
Environmental condition: ambient
Temperature 25’c, humidity <90%
Functional features
- Control oxygen concentration and simulate a low oxygen environment in the body.
- Control the concentration of carbon dioxide and provide the best conditions for cell growth.
- Fully automatic humidity control system, perfect humidity regulation.
- Equipped with HEPA filtration system.
- Built in long sleeve operating system.
Technical parameter of Anaerobic Hypoxic Workstation
- Equipped with a built-in fast transfer box, with a capacity of 12 liters, it can transfer 40 90mm plates at once. The transfer gate uses N₂blowing to successfully transfer the sample or equipment out or into the workstation within 60 seconds.
- Equipped with transfer gate intelligent protection function, ensuring that the internal environment is not affected.
- The opening and closing of the internal door of the transfer gate with one hand and one button operation is simple and convenient.

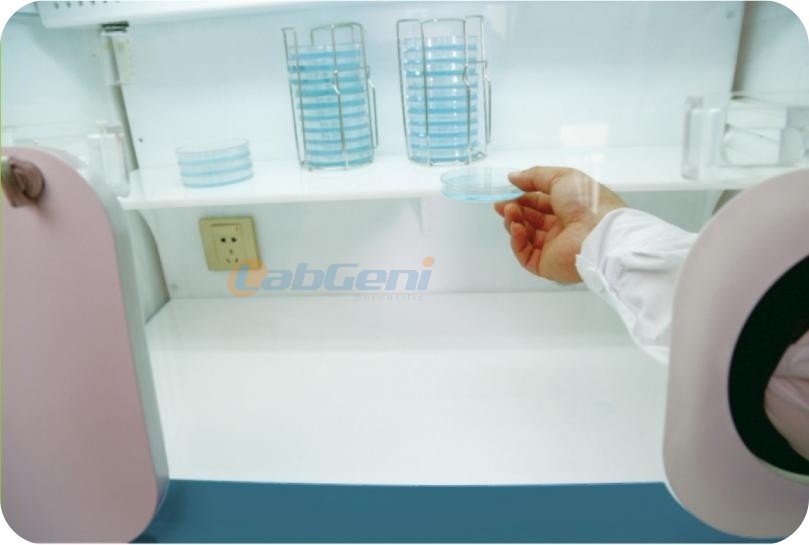

- Large capacity: can accommodate 760 90mmplates,250mL triangular bottles>80;More than 50 500mL triangular bottles;250mL reagent bottles>100;More than 80 500mL reagent bottles; Homogeneous bags can accommodate over 100 pieces.
- The side panel can be removed as a whole for small equipment access and cleaning of the station
- The anaerobic mode adopts dual gas (one bottle of anaerobic mixed gas:80%N₂+10% CO₂+10%H₂,one bottle off nitrogen),and the low oxygen mode adopts three gas(one bottle of carbon dioxide, one bottle of nitrogen, and one bottle of compressed air).
- Parameter settings, device status monitoring, and alarms are all implemented on a color 7-inch touch screen.
- Equipped with an ultrasonic humidification system and a fully automatic humidity control system, the humidity control range is -90% of the ambient humidity, and it has the function of automatically stopping work at low water levels.
- With fluorescent lamp, 254nm ultravioletsterilization lamp.
- The O₂workstation is equipped with a built-in HEPA(U16) filter, with a filtration efficiency of 99.9995%@0.12μM;MeetthelSO14644-1 class3 standard.
- Equipped with a built-in long sleeve operating system, fully sealed design ensuresthat 100% oxygen is not introduced when entering the workstation; No vacuum pump is required to avoid insufficient length and cumbersome operation of external long sleeve sleeves.
- Equipped with 6-stageO2,and CO2 ,gas circulation function, it can set different gas concentration target values, time, and cycle times. Experiments such as intermittent hypoxia, high and low oxygen fluctuations, extreme hypoxia, and intermittent hypoxia can be conducted, and the data can be downloaded through USB.
| Oxygen control range | anaerobic mode below 5ppm; hypoxic mode 0-25%, 0.1% increase; |
| Carbon dioxide control range | 0-20%,increasing by 0.1%;O₂ and CO₂ sensors come with their own calibration mode, eliminating the need for manual calibration. |
| Temperature Control range | Room temperature+3℃ to 52℃, display accuracy 0.1℃, average degree± 0.3℃. Provide temperature test report |
| Power sockets | With 2 built-in water proof |
| Data recording | A data recording system with USB interface that can record O, concentration,CO2 concentration, temperature, humidity, and intake time, with a data recording time of up to 30 days. |
| The alarm system includes | high and low temperature alarm, humidity range exceeding alarm, anaerobic mixed gas, nitrogen, CO2, compressed air low pressure alarm, gas leakage alarm; Equipped with an automatic gas overcurrent protection device, it automatically closes the intake solenoid valve after continuous intake for more than 5 minutes. |
| Timed gassing system | the gassing time can be set and displayed on the touchscreen, the fast mode time can be set arbitrarily and displayed on the touch screen. |
| Palladium catalyst | Equipped with efficient palladium catalyst, it does not require frequent activation and can be used for 4years. |
| Equipment dimensions | 1285×735×685mm(L×HxD) |
Main configuration of Anaerobic Hypoxic Workstation
| Item | Quantity | Item | Quantity |
| Host | 1set | LED lamp | 1set |
| Long sleeve | 1pair | UVlamp | 1set |
| HEPA filtration system | 1set | Catalyst | 3 bag(200g) |
| Oxygen sensor | 1set | Detoxification | 3bag(200g) |
| Carbon dioxide sensor | 1set | Lubrication powder(sleeve) | 1 bottle |
| Multi-channel gas mixer | 1set | Internal power socket | 2set |
| Gas gradient circulation system | 1set | Power cord | 1set |
| UItrasonic humidification system | 1set | Operation manual | 1set |
| Dish frame | 8set | Installation tools | 1set |
