Melting point is the temperature of something turning to liquid from solid. Testing it is the main method to detect some characters such as purity etc.

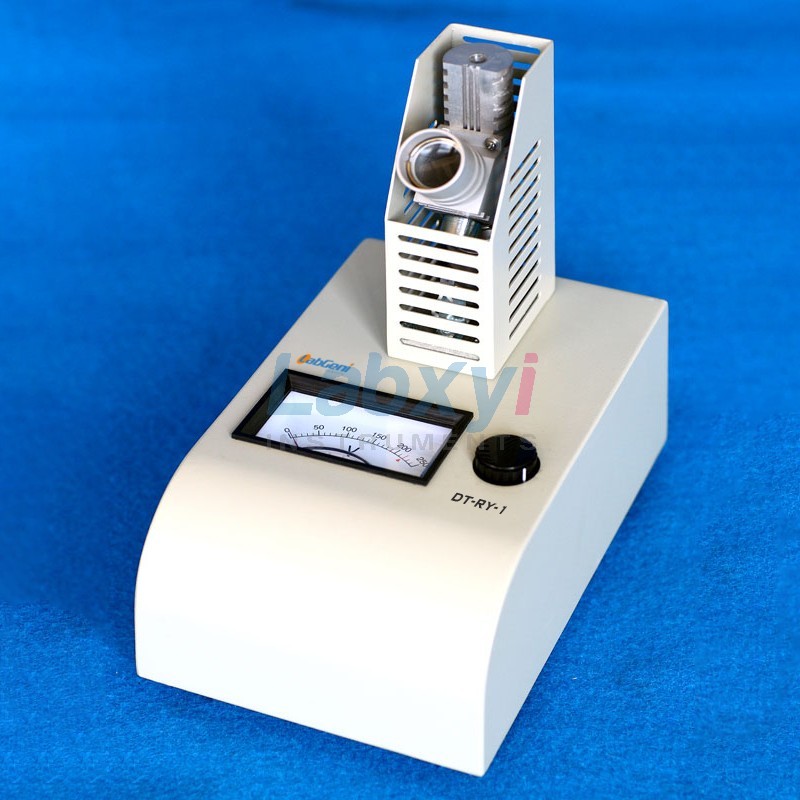

DT-RY series are suitable for testing Melting points of drug, spice and dye etc.
Applicable standard
Corporate standard(Thickness tester) Q/12XQ0185-2010
Features:
Test temperature with standard mercury thermometer.
Adjust heating voltage by a knob.
Display voltage with a analog voltmeter.
Observe Melting sample by a magnifier.
Test three samples at once.
Specifications:
Range of melting point (50～300)℃
Accuracy ±1.0℃
Usage temperature (15～35)℃
Rate (1.0、2.0、4.0、6.0)℃/min
Power of the heater 100W
Power 220V/ 50Hz/ 100W
Dimension (190*120*200)mm3
