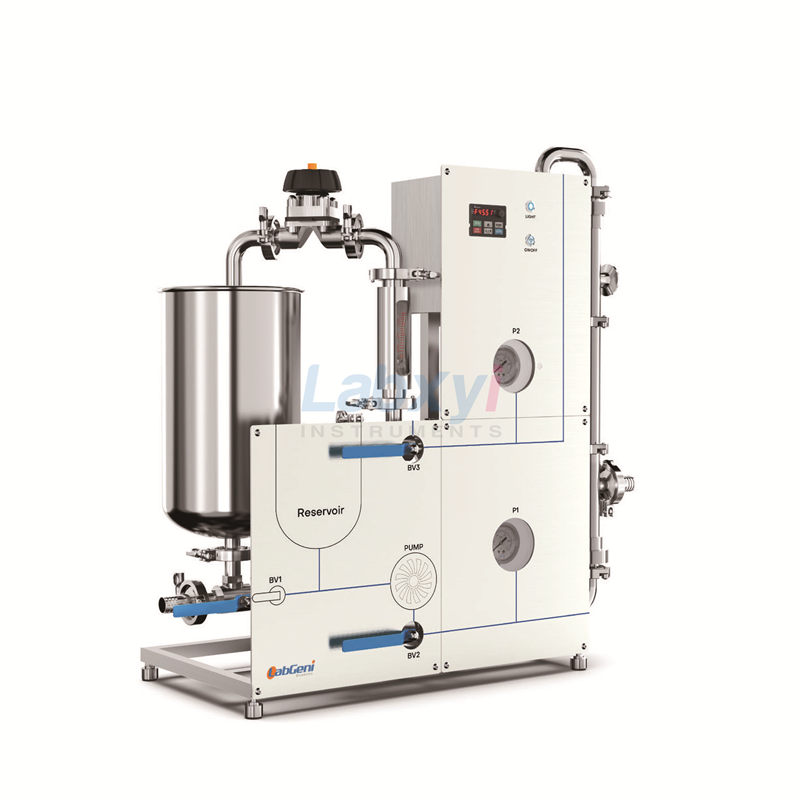

Desktop Ceramic Membrane Filtration System

MCS-MINI is a small manual desktop ceramic membrane MF/UF system. It adopts cross-flow filtration technology. The material generates two components on the surface of the ceramic membrane. One is the normal force perpendicular to the membrane surface, which allows small molecules to pass through the membrane surface. The other is the tangential force parallel to the membrane surface, which washes away the intercepted materials on the membrane surface. This system is suitable for separation, concentration, purification, clarification and pyrogen removal of laboratory samples.

SYSTEM ADVANTAGE

Minimalist pipeline design saves your samples

Reasonable flow channel layout, pursuit of extremely low circulation volume and retention volume Multi-channel valve body design makes harvesting and slag discharge operations simple

Intuitive workflow, visual instrumentation

Two pressure gauges installed at the feed end and the concentrate end allow you to observe and record pressure values, and calculate TMP (transmembrane pressure) and ΔP (pressure drop)
Rotameter at the concentrate end allows you to better control membrane channel flow rate and system flow

Hygienic design, in line with GMP and food machinery safety and sanitation requirements

Pipeline design strictly follows ASME BPE standards
TC connection for easy loading and unloading, making your effective cleaning easier
Circulation tank and pipeline internal polishing Ra≤0.4μm
Material contact surface uses 316L stainless steel, PTFE, EPDM, corrosion resistance, to ensure product safety

Main Parameters

MODEL	MCS-MINI
Project name	System parameters
Power unit	Centrifugal pump flow rate 0~4.4 m³/h
Membrane area	0.1㎡
Working pressure	0-6bar
Raw material tank	316L stainless steel circulation tank volume 12.5L
Operating temperature	0-70°C
Compressed air	6bar
Interface	1″ (TC connection)

MCS MINI Desktop Ceramic Membrane Filtration System
