Small battery adiabatic calorimeter is an adiabatic calorimeter developed on the basis of the classic ARC for small battery safety testing, integrating functions such as thermal abuse, electrical abuse, and mechanical abuse
Standard
ASTM E1981-98 SN/T3078.1
Product Introduction

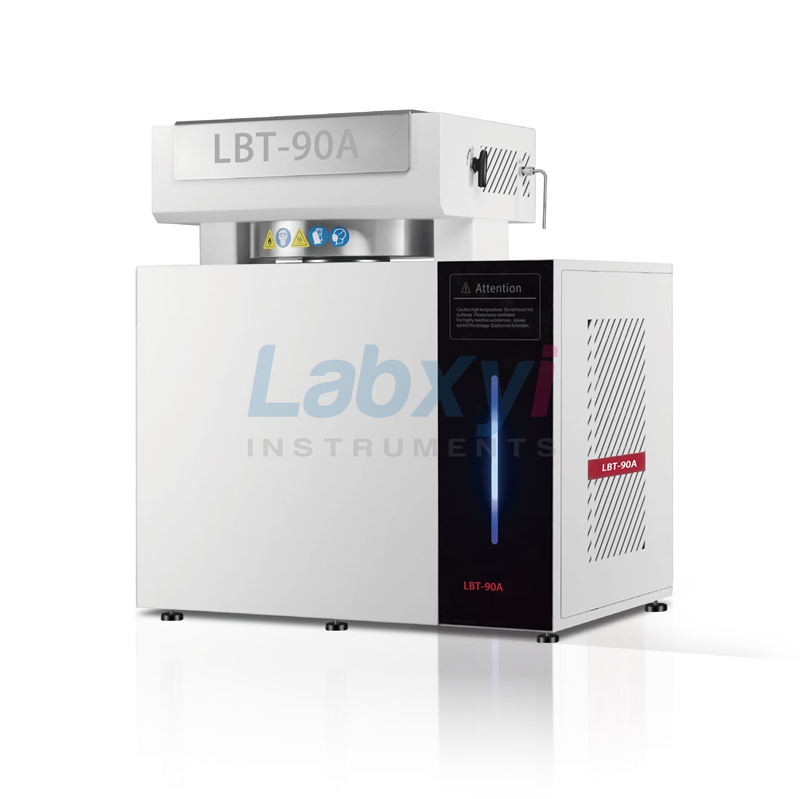

LBT-90A Small battery adiabatic calorimeter small battery adiabatic calorimeter can help battery and battery pack R&D and test personnel achieve a comprehensive safety performance evaluation by synchronously collecting battery voltage, current, power, temperature, pressure, and time data under various abuse conditions.
Features

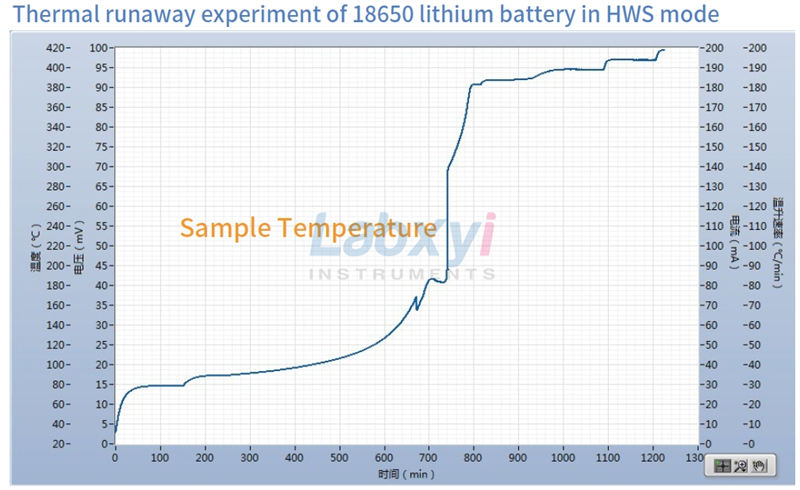

1) Simulating an ideal adiabatic environment can directly measure more accurate thermal behavior parameters such as battery thermal runaway starting temperature, maximum thermal runaway rate, and adiabatic temperature rise
2) Integrated battery charge and discharge module can realize charge and discharge mode switching, constant current/constant voltage charging mode setting, charge/discharge current setting, and real-time battery power calculation
3) Synchronous acquisition of battery voltage, current, temperature, and pressure data to analyze current/voltage changes during battery thermal runaway

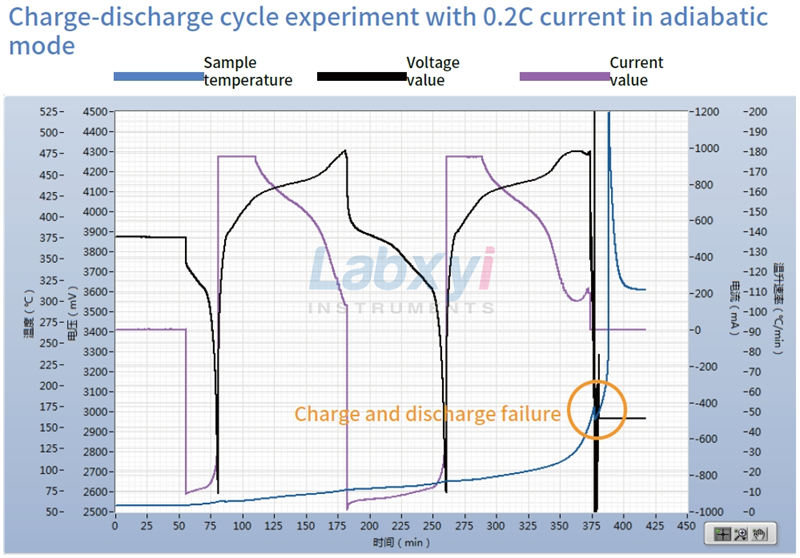

4) With adiabatic mode, it can accurately reflect the heat absorption and release and thermal runaway process of the battery during the charging and discharg ing process
5) With over-pressure and over-temperature alarm function, the furnace cover automatically rises and falls to ensure safety and convenient operation
Technical specifications
| MODEL | LBT-90A |
| working environment | (5～40)℃，<85%RH |
| Temperature control range | Room temperature～500℃ |
| Temperature control mode | Constant temperature, scanning, HWS, specific heat capacity constant power mode, specific heat capacity constant rate mode, charge and discharge heat release mode |
| Temperature detection threshold | (0.005～0.02)℃/min |
| Temperature tracking rate | (0.005～40)℃/min |
| Temperature display resolution | 0.001℃ |
| Furnace chamber size | Diameter 90mm, depth 110mm |
| interface | USB or RJ45 |
| power supply | 220V/50Hz |
| power | ≤3000W |
| Battery specific heat test module | |
| Test Methods | Support comparative testing |
| Test Mode | Support constant power and constant rate test modes |
| Calibration gauge block | With specific heat test calibration block, regular calibration is possible |
| Control and data analysis software functions | |
| All device data transmission methods | Realized through the network, remote control, to ensure the safety of experimenters |
| data record | Multi-dimensional data synchronous recording facilitates the study of thermal runaway mechanisms under various inducements |
| Specific heat capacity calculation function | have |
| Thermal analysis capabilities | With thermodynamic and thermodynamic calculation functions |
| Air pressure measurement and gas collection module | (optional) |
| Sealed can type | 18650, Small battery pressure sealed tank |
| Sealed tank pressure range | Better than 0~10bar |
| Pressure measurement range | 0～20000kPa |
| Pressure resolution | 1kPa |
| Pressure detection accuracy | ≤0.05% |
| Gas collection function | Can collect battery thermal runaway tail gas at different stages for component and explosion characteristics determination |

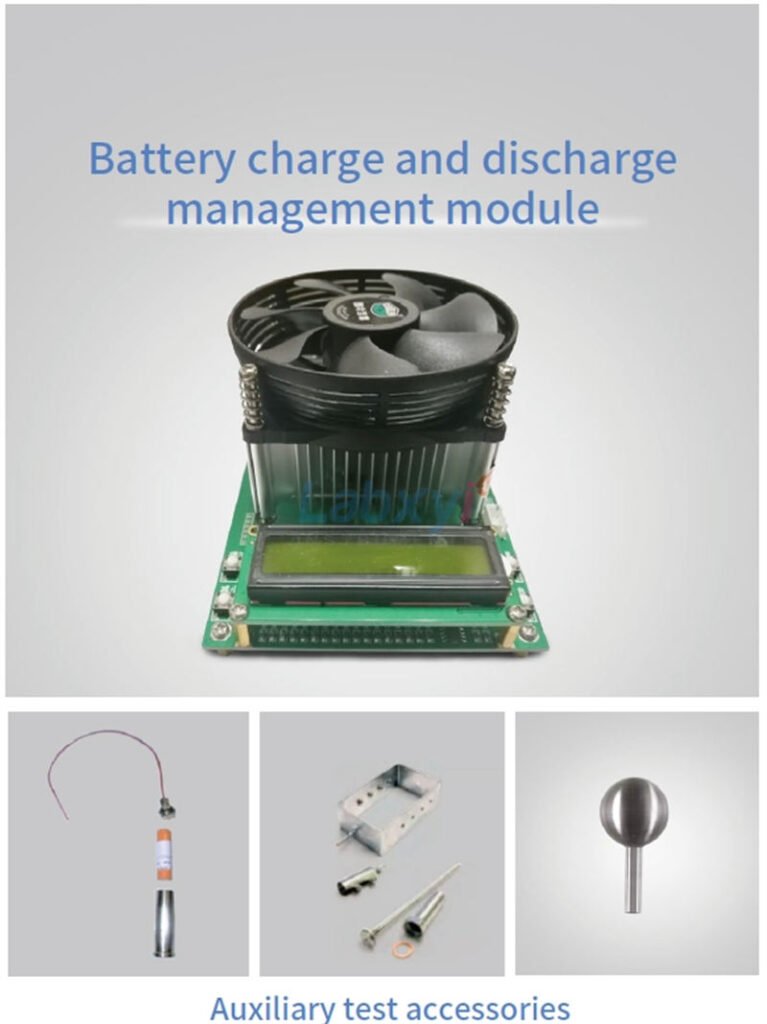

| Charge and discharge management module | (optional) |
| Charging voltage | Up to 5V |
| Charge and discharge current | Up to 20A |
| Test Channel | Can measure 8 channels simultaneously |
| Charge and discharge mode | Equipped with constant voltage and constant current charging and discharging modes |
| Voltage and current monitoring function | have |
| Voltage measurement accuracy | ±0.1%FS |
| Current measurement accuracy | ±0.1%FS |
| SOC calculation function | have |
| Equipment working mode setting and data acquisition interface | RJ45 |
