Large Battery Adiabatic Calorimeter complies with the “Adiabatic Temperature Rise Characteristics” experimental standard of 36276-2023 “Lithium-ion Batteries for Power Energy Storage”, and can meet the thermal safety test requirements of blade batteries within 1500mm and small modules; it conforms to the development trend of large-scale and high energy ratio of battery cells, and can make up for the industry’s inability to measure the thermal characteristic parameters of large blade batteries in an adiabatic environment.
Product Introduction

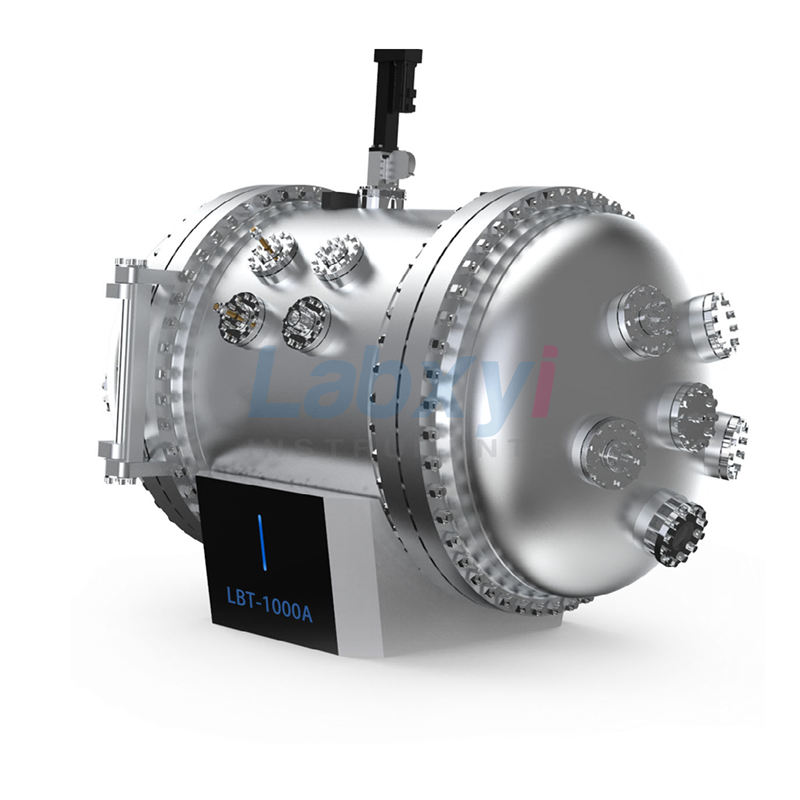

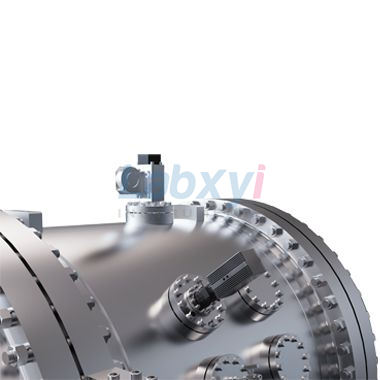

LBT-1000A Large Battery Adiabatic Calorimeter has a special test mode that complies with the “adiabatic temperature rise characteristics” experimental standard of 36276-2023 “Lithium-ion Batteries for Power Energy Storage”. It is an adiabatic calorimeter for studying large battery cells and small modules with a long side of 100mm~1500mm. It can realize battery thermal runaway test, battery gas production test, battery charge and discharge heat production test, battery specific heat capacity test, and accurately obtain the charge and discharge heat production and specific heat capacity of lithium batteries under low temperature conditions, thermal runaway starting temperature, maximum thermal runaway rate, adiabatic temperature rise characteristics, battery gas production and gas production rate and other parameters. The instrument can provide data support for the safety performance evaluation of lithium batteries and battery modules; and provide an evaluation basis for the low-temperature thermal management system of power batteries.
The instrument has the functions of adiabatic thermal runaway-gas production combined test, adiabatic thermal runaway, gas collection and pressure test, heating wire auxiliary heating, thermal/electrical/mechanical abuse, specific heat capacity test, charge and discharge heat generation test, low temperature test, multi-point temperature measurement, video monitoring, etc.
Guideline
36276-2023 Lithium-ion batteries for power storage
UL 9540A
ASTM E1981-98(2012)
Guidelines for the evaluation of thermal stability of chemicals Part 1: Accelerating rate calorimeter method
USABC SAND99-0497, July 1999: 3.2 Thermal Stability Tests
SAE J2464-R2009: 4.4.2 Thermal Stability Tests
Freedom CAR SAND 2005-3123: 4.1 Thermal stability
UL 1973
GB 38031-2020 Safety requirements for power batteries for electric vehicles
Features
- Accurate: The self-heating detection sensitivity is much better than the standard detection threshold of 0.02℃/min, with high insulation performance and small wall-sample temperature difference
- High efficiency: innovative heating wire auxiliary heating solution, experimental efficiency can be increased by up to 5 times
- Safety: Equipped with safety protection measures such as bursting discs and pressure relief valves, and professional alarm system design to fully protect the safety of personnel and equipment
- Innovation: It has innovative adiabatic thermal runaway-gas production joint analysis function to fully obtain the characteristic parameters of battery thermal runaway
Technical specifications
| MODEL | LBT-1000A |

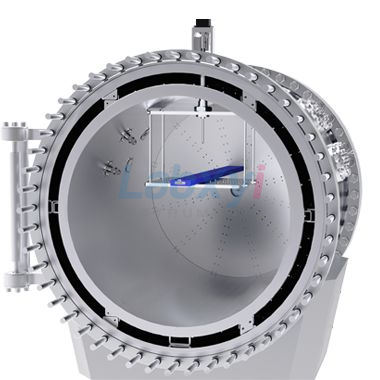

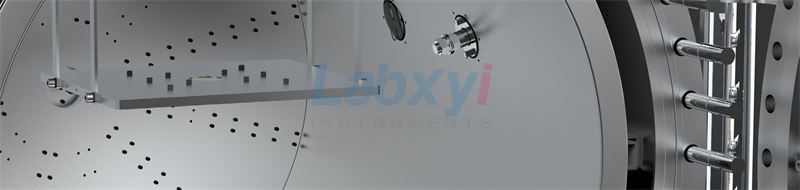

| Effective size of insulation cavity | Diameter 1000mm, depth 1200mm |
| Self-heating detection sensitivity | Better than 0.02 ℃ /min |
| Constant wall sample temperature difference | ≤1 ℃ |
| Temperature control range | RT~300°C, can reach -25 ℃with low temperature module |
| Working pressure range | 0~2MPa |
| Temperature tracking rate | 0.02~15 ℃ /min |
| Maximum acupuncture stroke | 200mm, stroke software adjustable |
| Overcurrent capacity of charge & discharge electrode column | -500A~500A |
