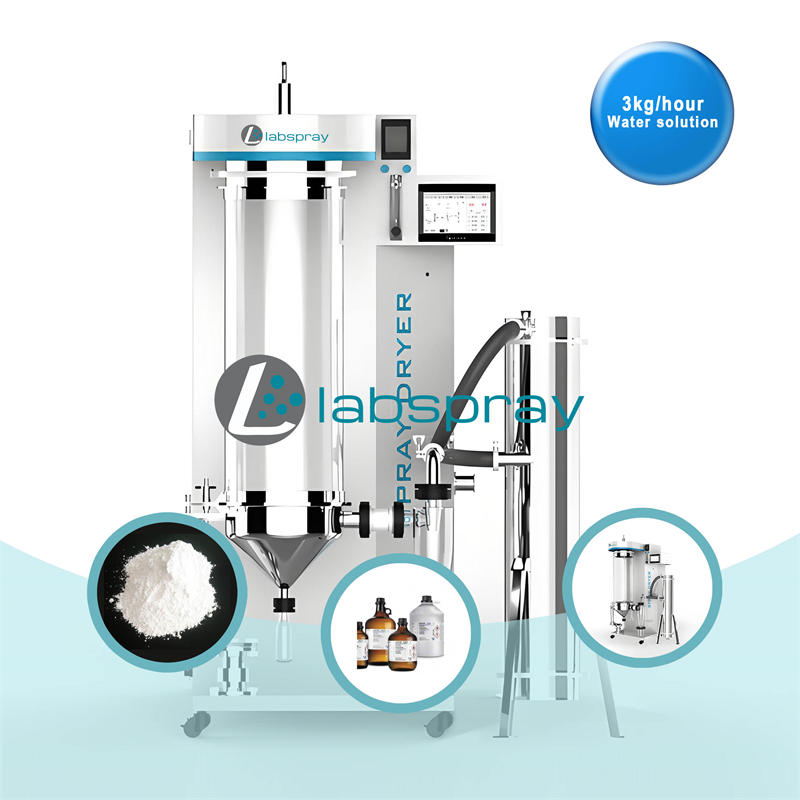

SD-03A Laboratory Pilot Spray Dryer Machine

SD-03A Laboratory Pilot Spray Dryer Machine is mainly suitable for the production of trace particle powders in laboratories of universities, research institutes and food, pharmaceutical and chemical enterprises. It has a wide spectrum of applicability to all solutions such as emulsions and suspensions.

SKU: SD-03A Category:

SD-03A Laboratory Pilot Spray Dryer Machine is mainly suitable for the production of trace particle powders in laboratories of universities, research institutes and food, pharmaceutical and chemical enterprises. It has a wide spectrum of applicability to all solutions such as emulsions and suspensions.

It is suitable for drying heat-sensitive substances such as biological products, biological pesticides, enzyme preparations, etc. Because the sprayed material is only exposed to high temperature when it is sprayed into mist-sized particles, it is only heated for a moment, which can keep the active ingredients of these active materials intact after drying.

Main Features

Excellent industrial design

  • A new generation of mobile pilot spray dryer, which can easily complete your operation in the laboratory
 Optional dust bag filter device

  • High exhaust gas filtration efficiency, can capture fine dust with a particle size greater than 1 micron, and the air purification efficiency can reach more than 99%
Schneider Electric standard production

  • From circuit breakers to contacts, from relay protectors to push button switches, regardless of the size of the electrical components, we use Schneider or other first-class brands to produce all electrical components
Multiple atomization systems

  • Use the top nozzle manufacturer in the industry – American Spray Company
SIEMENS PLC controller

  • Equipment uses the German Siemens PLC S-200 controller, a leading brand in the field of industrial control
Control interface

  • Touch screen uses Taiwan’s excellent brand WEINVIEW, with precise touch control and delicate picture performance
Brand-new fan design concept

  • Variable frequency + medium pressure fan: After repeated verification by engineers, the fan speed and wind pressure will affect the material spraying effect of different products and correspond to different product yields.

Main Specifications

MODEL SD-03A
Maximum water evaporation volume
  • 3000ml/h
Inlet air temperature
  • 30ºC ~ 250ºC
Outlet air temperature
  • 30ºC ~ 120ºC, ±1ºC
Fan
  • 2.5m3/min;
  • Delta variable frequency speed regulator, imported fan
Electric heater
  • 5KW/AC380V;
  • Material: 2520 special stainless steel
Inlet and outlet air temperature monitoring
  • Taiwan PT-100 platinum resistor
  • intelligent PID control
Spray system
  • Dual fluid atomization
Window
  • Round window, beautiful appearance with observation and cleaning functions
Average drying time
  • 1.0~1.5s
Automatic blockage removal device
  • Automatic needle passing frequency is adjustable
  • 0~60 seconds/time
Control system
  • German Siemens PLC automation control system
  • imported 7-inch color touch screen
Air supply system
  • Silent and oil-free
  • working pressure 2~6Bar
  • gas volume 180L/Min
Software version
  • Unique LF-control v2.0 control system, visual touch operation;
  • Display and control of inlet air temperature, outlet air temperature, frequency conversion, needle frequency, etc.;
  • Data recording and export, curve analysis function, alarm and overload protection
Electrical standard
  • Made by Schneider Electric standard
Quick release design
  • Thermometer, air pipeline, power supply, all use quick plug-in design
Options
  • Magnetic stirrer, weighing system, pulse dust removal device
Dimensions (W×D×H)
  • 805x805x1705mm (height)
Power supply voltage
  • AC380V, 50Hz
Complete machine weight
  • 170kg
