Characteristics
- MeetASTM D1003-61(2007).
- Parallelillumination, scattering hemisphere and integrating sphere optical receiving
- Usesilicon photovoltaic cells as signal
- Computeroperating system, automatic data processing system, no- knob operation and very easy to use.

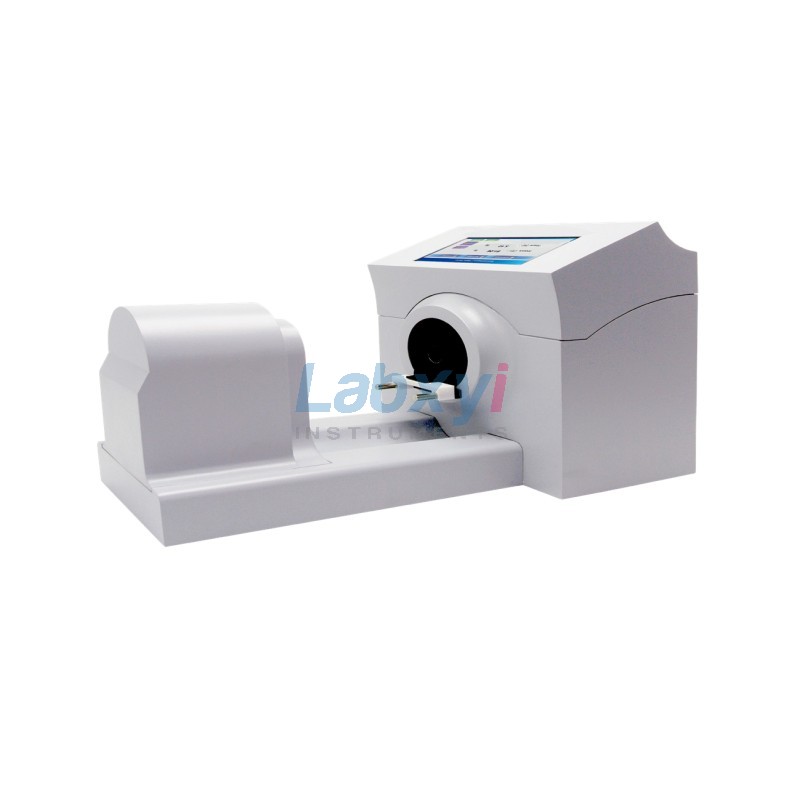

- Smartdesign with horizontal or vertical set-up.
- Reliableand precise transmittance and haze
- TheLED light source assures long-term stable results for many
Specifications
| Parameters/Model | HZM-806 |
| Illuminant | A light（2856K）、C light（6774k）、D65 light（6500K) |
| Light Source | LED |
| Measuring range | Transmittance: 0-100 %
Haze: 0-100% |
| Resolution | 0.01%(transmittance); 0.01%(haze) |
| Accuracy | Transmittance: ≤±1 %(Standard neutral density filter);
Haze: ≤±5 % |
| Repeatability | Transmittance: ≤0.1%
Haze: ≤0.1 |
| Sample window size | 25mm(incident window)
21mm(exit window) |
| Display | Large LCD touch screen |
| Interface | USB，U disk |
| Power supply | 220V±22V，50Hz±1Hz，100w |
| Overall dimensions | 740mm×515mm ×486mm |
| Weight (Gross) | 18kg |
