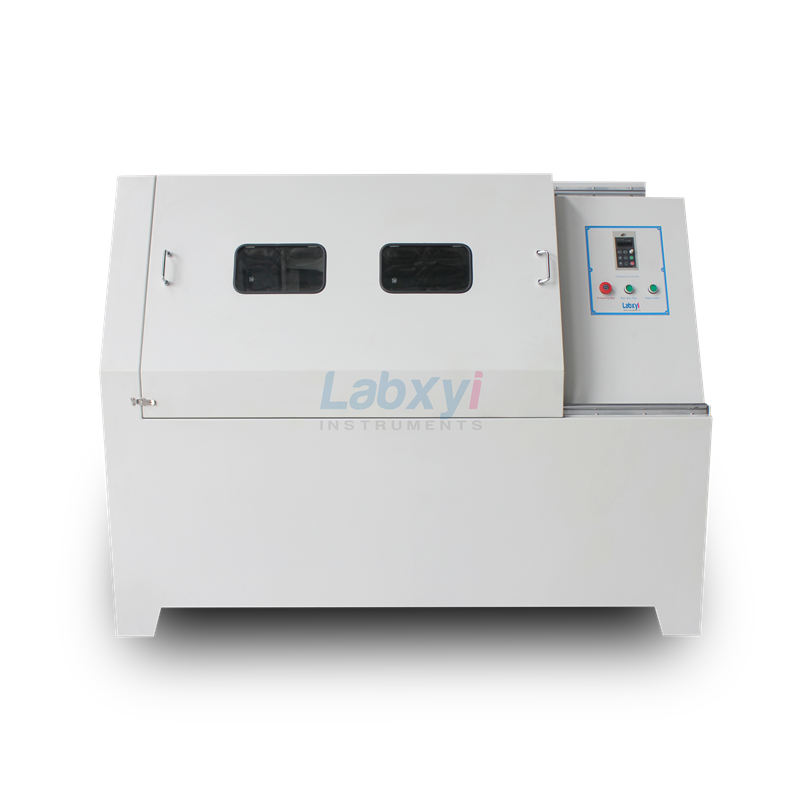

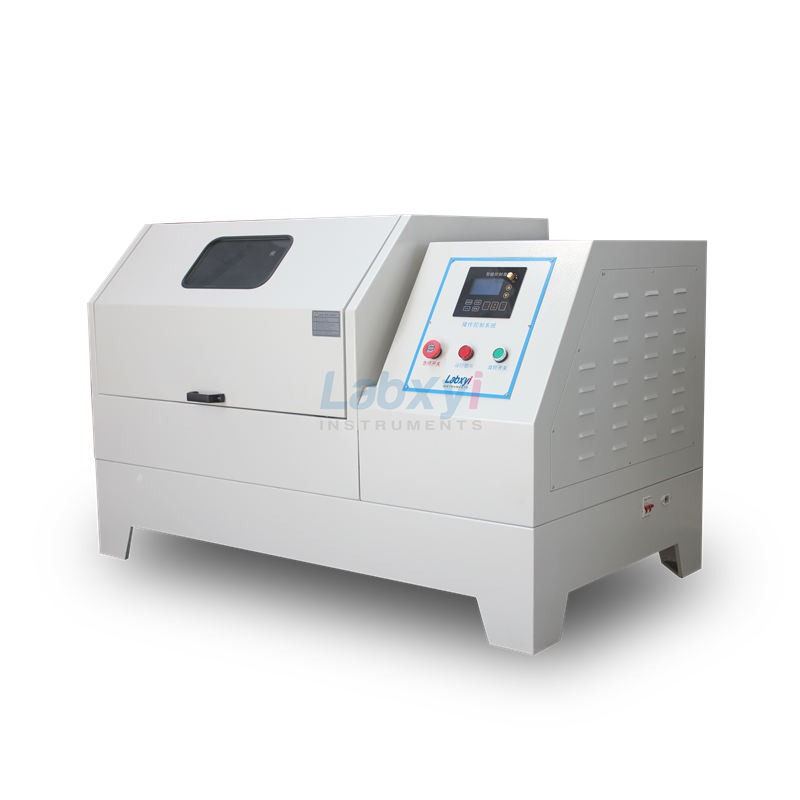

PBM-F Series 0.4~20L Full-Directional Planetary Ball Mill

SKU: PBM-F Series Category:

PBM-F series Full-Directional planetary ball mill is the requisite equipment for mixing, fine grinding, small sample preparing, new product development and small volume high-tech material production. The product has small volume, complete function, high efficiency and low noise. It is the ideal facility to acquire research samples for research institutes, universities as well as enterprise laboratories (can acquire four samples in one experiment).





Overview

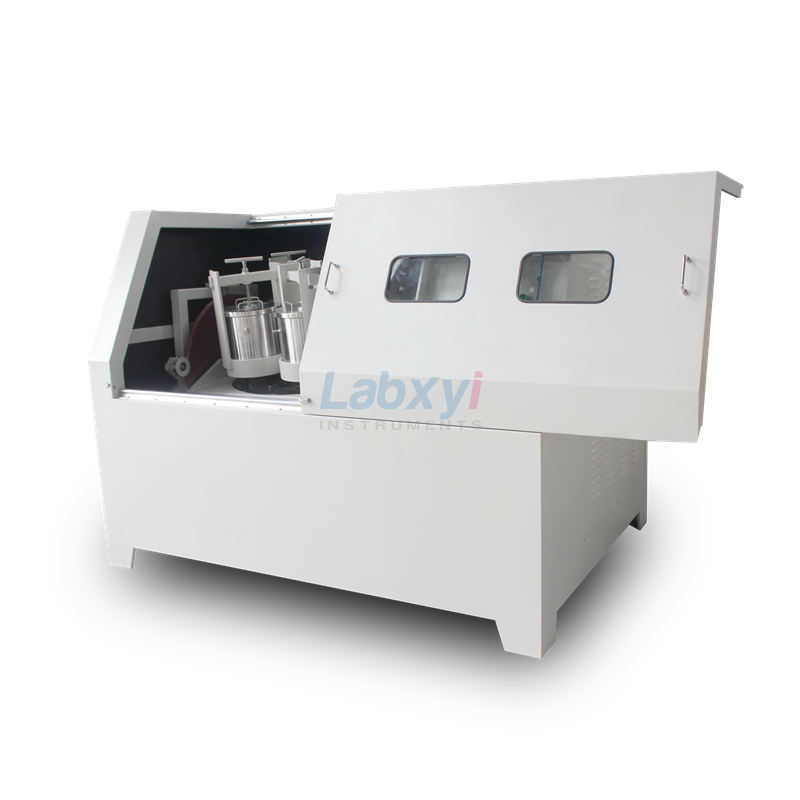

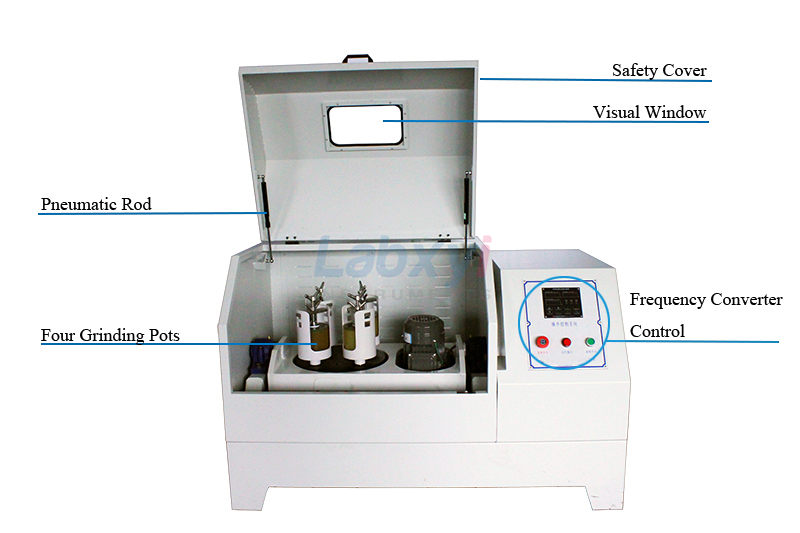

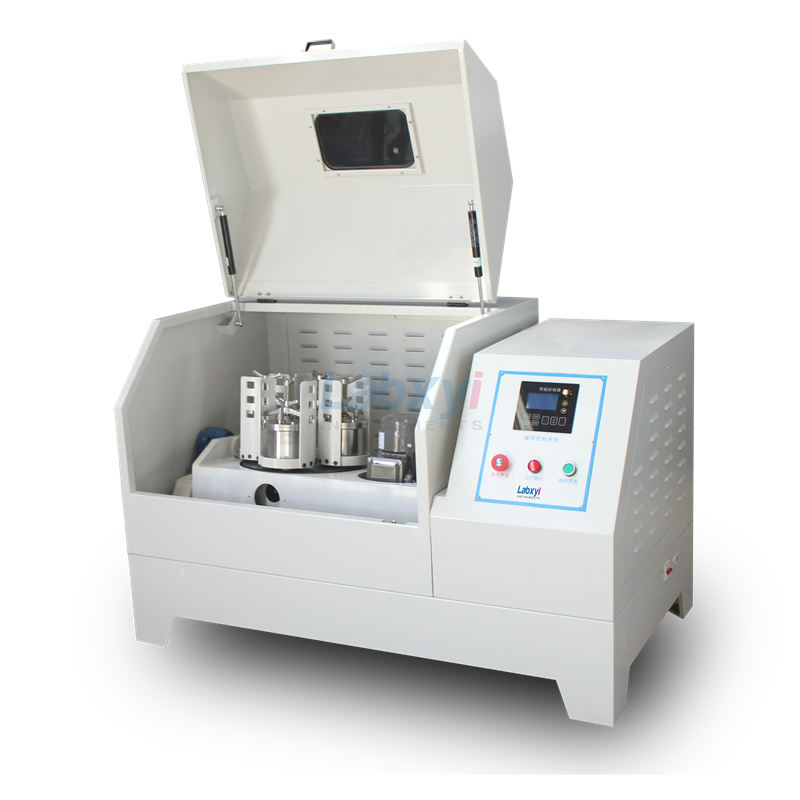

PBM-F series Full-Directional planetary ball mill has four ball grinding tanks installed on one disc. When the turn disc rotates, the mill pots revolve on their own axis and make 360 degree rotation. And the balls in the tanks grind and mix samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of ground samples can be as small as 0.1 micron meter. It is widely used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.



Working Principle

PBM-F series Full-Directional planetary ball mill has four ball grinding tanks installed on one disc. When the turn disc rotates, the mill pots revolve on their own axis and make 360 degree rotation. And the balls in the tanks grind and mix samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of ground samples can be as small as 0.1 micron meter. It is widely used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.





Features:

  1. The machine makes 360 degree planetary movement without any dead corner, so the ground powder is much smaller and more even
  2. Gear transmission ensures to keep consistency and repeatability of experiment.
  3. You may get four different powder samples at one time.
  4. Variable frequency controlled and program controlled.
  5. It solves the problems of materials sinking and sticking to the pot.

Advantages:
A wide range of powder can be ground by our planetary ball mill with different mill jars and balls, such as ore powder, fluorescent powder, glass powder, pigment powder and so on. Following are some powder samples for your reference.



Technical Parameter
Besides the planetary ball mill machine, our factory provides all kinds of mill pots,like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.



Technical Features of Full-directional Planetary Ball Mill
Drive Mode Gear drive
Operate Mode Two or four grinding jars working together
Maximum Loading Capacity 2/3 of the total volume of milling jars
Feeding Size Soil material≤10mm,other materials≤3mm
Output Granularity Smallest granule reaches 0.1μm
Rotational Speed Ratio 1:2
Max.Continuous Operating Time 48 Hours
Materials of Jar stainless steel.agate,nylon,corundum,zirconia,etc
Main Parameters of Full-Directional Planetary Ball mill
Type Power
(KW)
Voltage Dimension
(mm)
Revolution Speed
(rpm)
Rotation Speed
(rpm)
Total Timing
(min)
Alternating Run
Time of Forward &
Reversal Rotation
(min)
PBM-F0.4 0.75 220V-50Hz 1100*750*825 35-335 70-670 1-9999 1-999
PBM-F1 0.75 220V-50Hz 1100*750*825 35-335 70-670 1-9999 1-999
PBM-F2 0.75 220V-50Hz 1100*750*825 35-335 70-670 1-9999 1-999
PBM-F4 0.75 220V-50Hz 1100*750*825 35-335 70-670 1-9999 1-999
PBM-F6 0.75 220V-50Hz 1100*750*825 35-335 70-670 1-9999 1-999
PBM-F8 1.5 220V-50Hz 1220*900*960 35-290 70-580 1-9999 1-999
PBM-F10 1.5 220V-50Hz 1290*900*960 35-290 70-580 1-9999 1-999
PBM-F12 1.5 220V-50Hz 1220*900*960 35-290 70-580 1-9999 1-999
PBM-F16 3 380V-50Hz 1530*1070*1220 30-225 60-510 1-9999 1-999
PBM-F20 4 380V-50Hz 1700*1100*1200 25-215 50-430 1-9999 1-999
