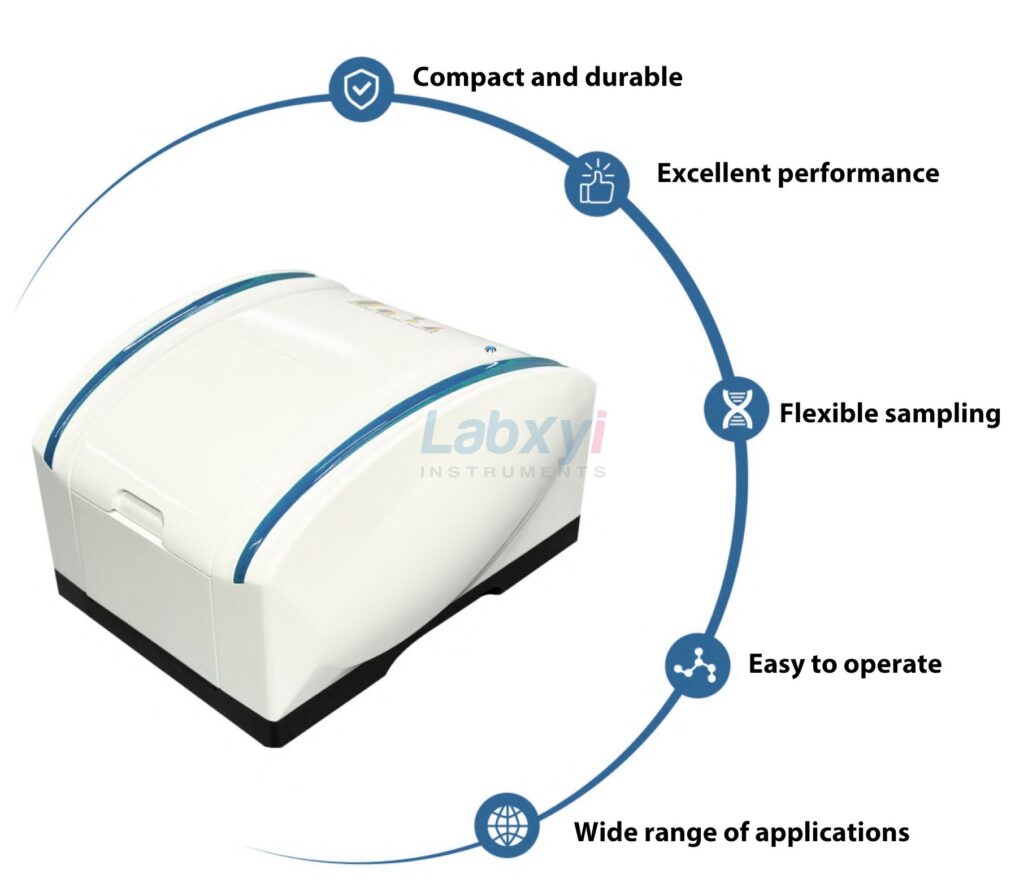

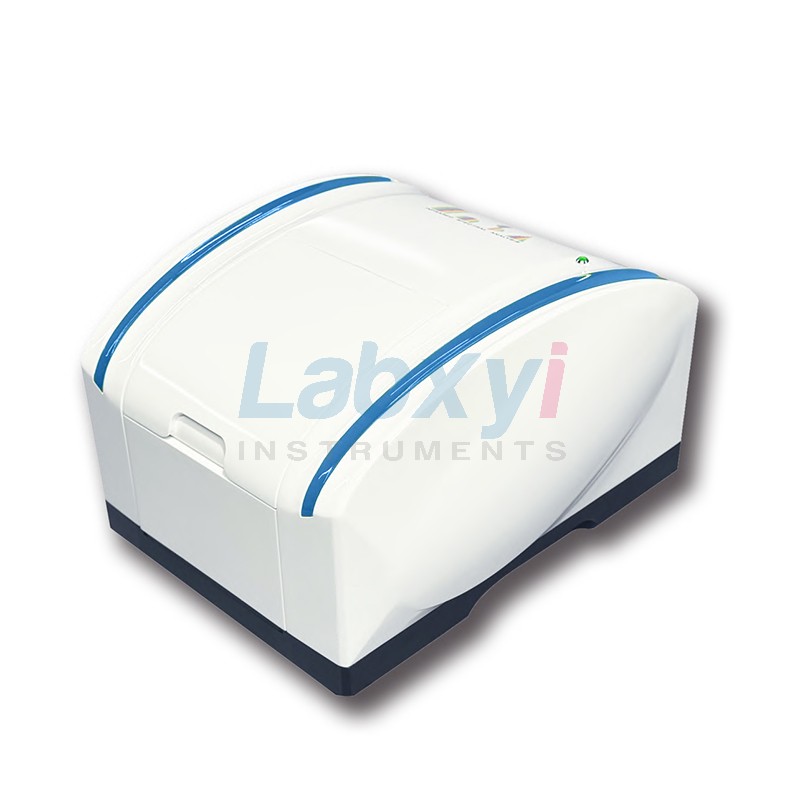

The FT-IR5000 Fourier Transform Infrared Spectrometer combines a compact size, a reasonable price, and superior performance, making it a worthwhile entry-level spectrometer.
Compact size A combination of reasonable price and superior performance ,make FT-IR5000 Fourier Transform Infrared (FTIR) The FT – IR spectrometer has excellent performance. It is a worthwhile entry-level spectrometer.
Durable design
- The FT-IR5000FTIR Fourier Transform Infrared Spectrometer This allows it to operate without failure in harsh environments.
- Diode lasers can ensure trouble-free operation for many years.
- Users can replace parts themselves. Reduce maintenance costs
- Wide range of temperature and humidity adaptability conditions
- Permanent collimating interferometers offer excellent mechanical properties To ensure earthquake resistance , high temperature resistance
Easy to maintain

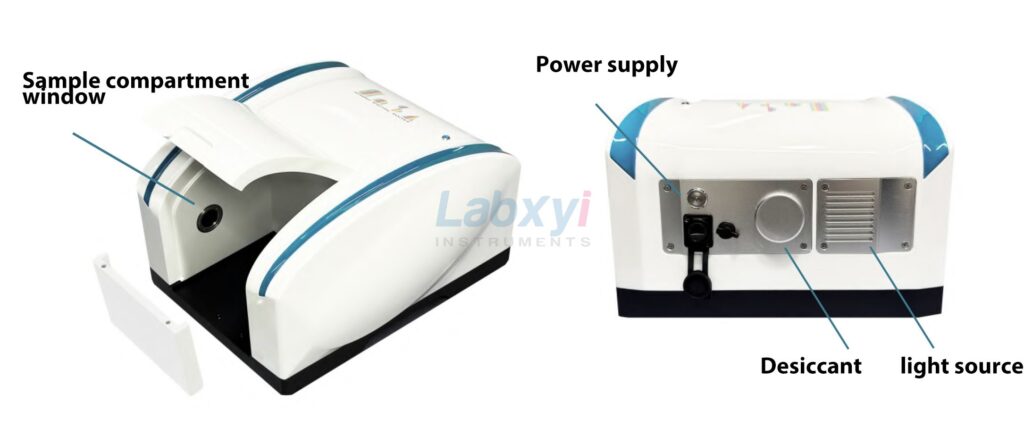

- User-replaceable parts :light source Desiccant , power supply Sample compartment window
- Spectrometer Replacing the IR source or desiccant does not require opening the optical stage. No professional repair personnel required
Application industries

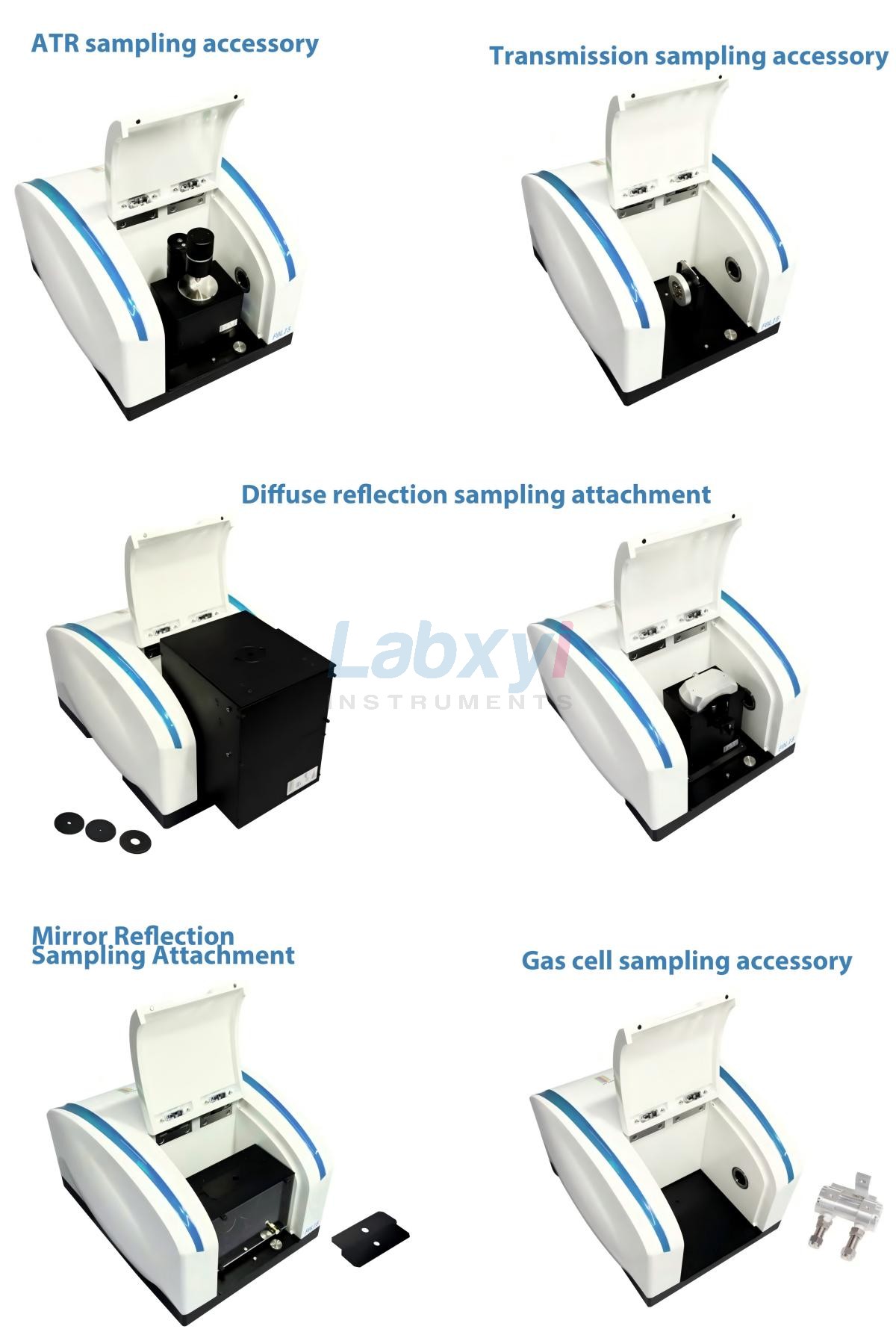

Applicable Attachments
SPECIFICATIONS
| Humidity | Sealed design to resist ambient moisture |
| interface | Network interface |
| beam splitter | Germanium-plated KBr beam splitter Specifically designed for the mid-infrared region (zinc selenide moisture-proof version optional). |
| laser | Long-life solid-state diode laser |
| Verification function | Meets the requirements of the Chinese Pharmacopoeia |
| power supply | 100-240V; 50-60 Hz |
| length | 357 mm |
| width | 395 mm |
| high | 243 mm |
| light source | High-energy mid-infrared silicon nitride light source; Users can replace it themselves. |
| Spectral range | 8000-350 cm – 1 |
| Detector type | Fast-response pyroelectric detector |
Test Report

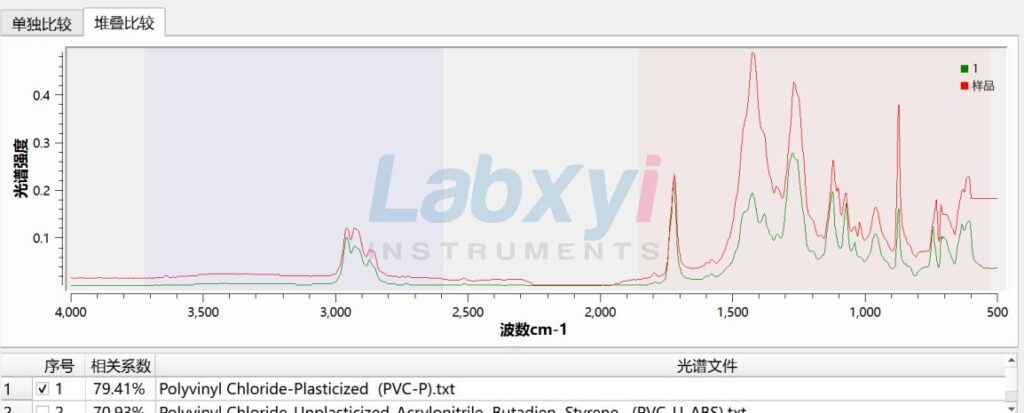

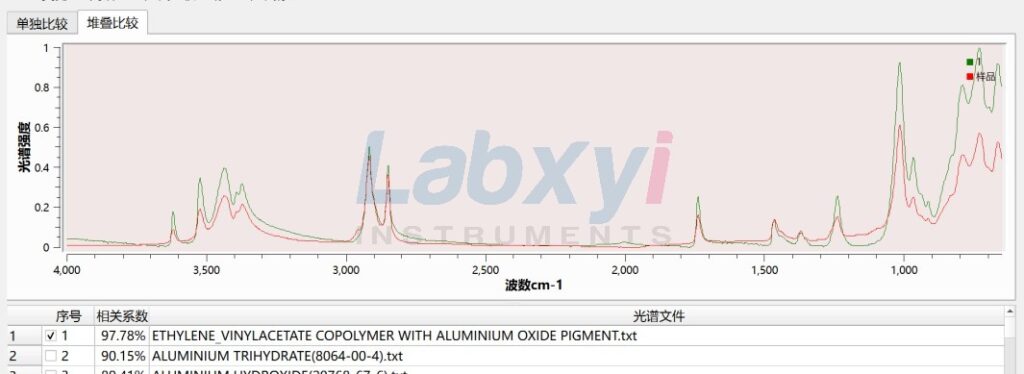

Figure 1 : Spectral library identification of black cables

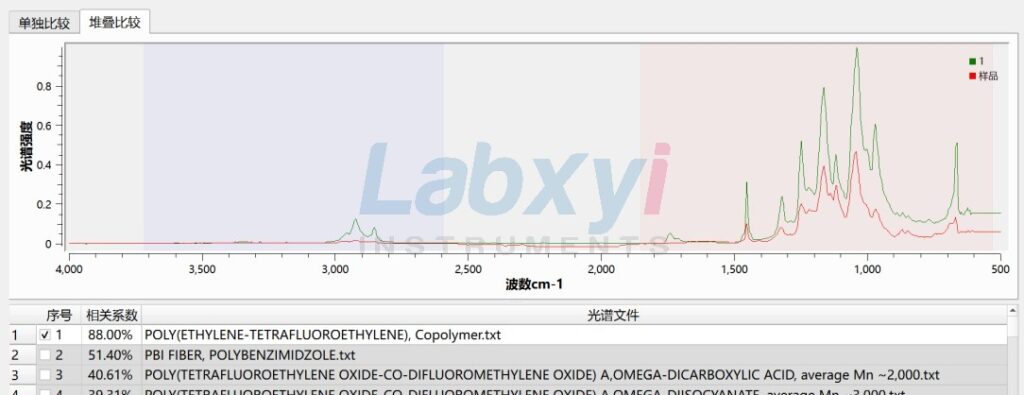

Figure 2 : Red cable spectral library identification

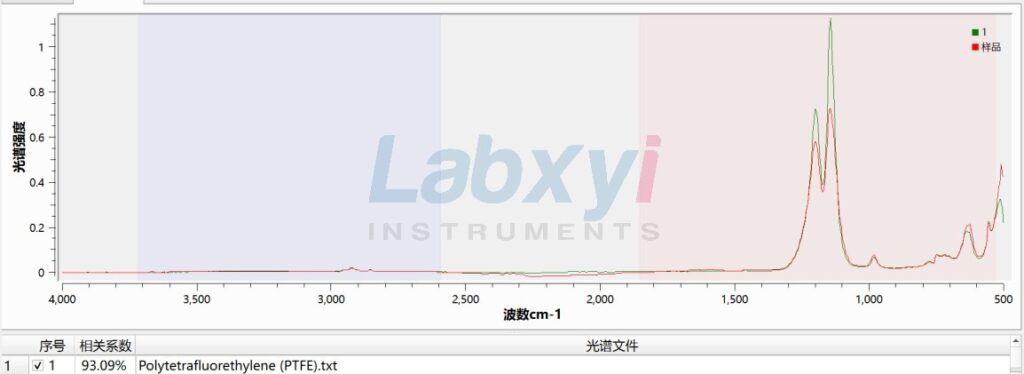

Figure 3 : Orange cable spectral library identification
Figure 4 : Blue Cable Spectrum Library Identification
Technical Specifications
| MODEL | FT-IR5000 Fourier transform infrared spectrometer |
| Spectral range | 5,000~500 cm -1 ( moisture-proof) ZnSe version );
Configurable 7,800~350 cm⁻¹ ( standard) (KBr version) |
| Spectral resolution | ≤0.9 cm-1 |
| Signal-to-noise ratio | Superior 50,000:1 ( peak – to- peak, 1-minute test ) |
| Wavenumber accuracy | ≤0.005 cm⁻¹ |
| Interferometer | A highly stable solid angle mirror interferometer, requiring no tracking adjustment, with permanently collimated optical path, and the mirrors in the optical path are fully coated.
Gold mirror finish, lifespan greater than 5 years |
| beam splitter | Germanium plating KBr beam splitter, optimized for the mid-infrared region (zinc selenide moisture-proof version optional). |
| detector | Use moisture-proof, highly sensitive DLaTGS detector, built-in 32 -bit ADC |
| Infrared light source | Long-life mid-infrared ceramic light source, operating temperature 1550K, service life greater than 5 years. |
| laser | Solid-state lasers with a lifespan greater than 10 years |
| Networking | The infrared host and the computer are connected via a network cable , without any restrictions.
” plug and play ” in the network ; |
| show | Real-time display of temperature, humidity and current values of key components |
