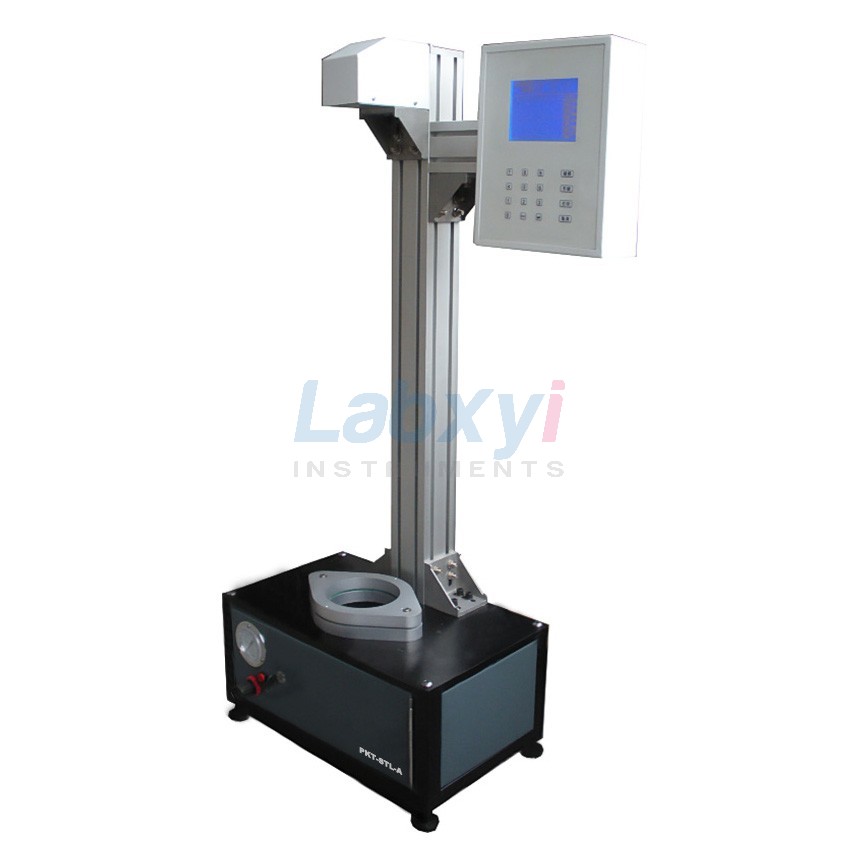

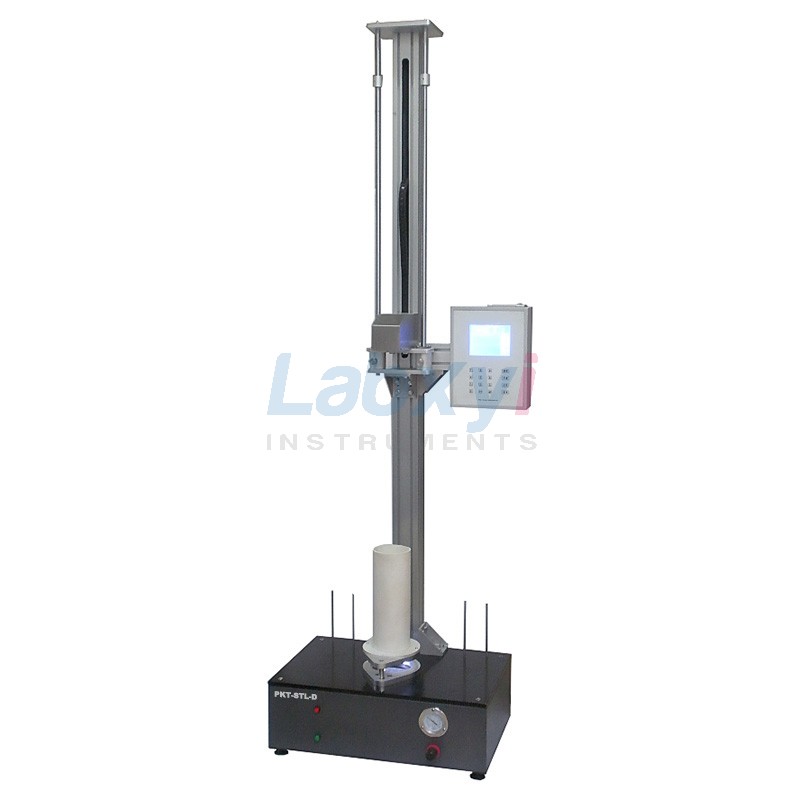

PKT-STL-A/D Falling Dart Impact Tester

This instrument tests the impact resistance of plastic film and thin sheet.

SKU: PKT-STL-A/D Category:

This instrument tests the impact resistance of plastic film and thin sheet.

Working Principle
The dart freely falls and impact test sample; measure the weight needed to damage 50% of the number of samples to evaluate impact resistance.

Standards
GB/T 9639.1, ISO7765-1, ASTM D1709

Features

  • LCD display test data.
  • Easy operation, auto process data.
  • Pneumatic clips.
  • Auto clip and release dart.
  • Built-in printer, can print report.
  • Two test modes: Mode A and Mode B.

Configuration
Falling Dart Impact Tester, clips, weights, power cable
User provide: compressed air

Specifications

Test mode

Mode A, Mode B, optional

Test range

Mode A 50~2000g; Mode B 300~2000g

Test precision

1g

Dart weight

Mode A 30g; Mode B 260g

Dart size

Mode A Φ38mm; Mode B Φ50mm

Weights

5g, 15g, 30g, 45g, 80g, 90g, 8pcs for each

Size of weights

Mode A Φ30mm; Mode B Φ45mm

Impact height

Mode A 66cm; Mode B 150cm
Size of clips outer Φ150mm, inner Φ125mm
Sample size 180×180mm

Gas source

compressed air, 0.6~0.8Mpa

Gas port

Φ8mm gas pipe

Instrument size

62×40×121/204cm
