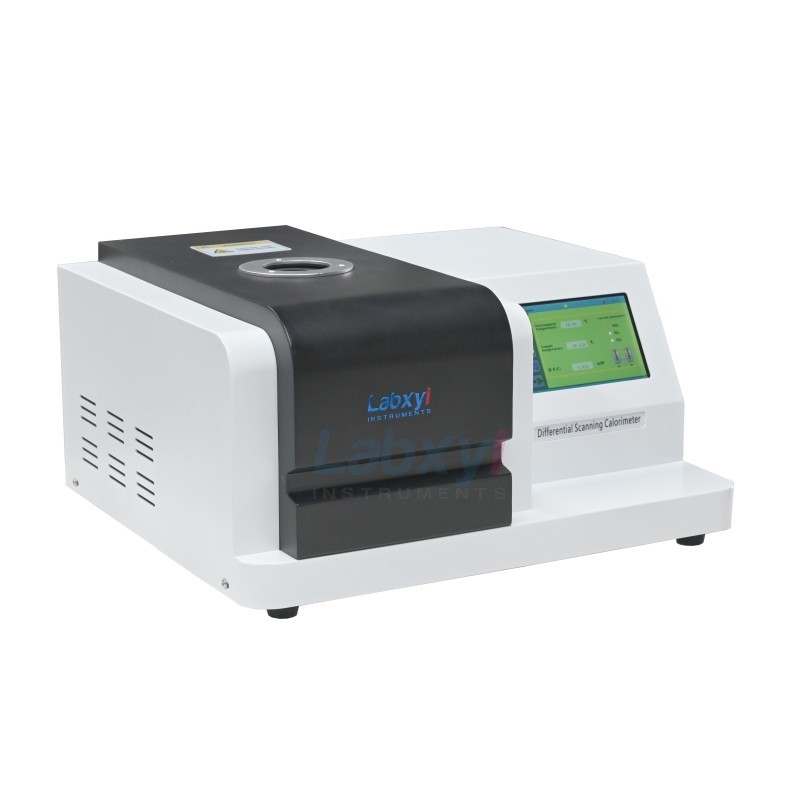

Cooling Differential Scanning Calorimeter DSC

DSC3000C Cooling Differential Scanning Calorimeter is a differential indicator with the highest precision introduced by the company. The sensor adopts imported E couple with high sensitivity. The signal acquisition circuit is shielded and protected, with strong anti-interference and high baseline stability. The differential scanning calorimeter is a touch screen type, which can perform glass transition temperature test, phase transition test, melting and enthalpy test, product stability, oxidation induction period test. Wide range of applications

Technical features

Industrial-grade 7-inch touch screen, rich in display information.
Brand-new metal furnace body structure, with better baseline and higher accuracy. The heating adopts indirect conduction method, which has high uniformity and stability, reduces pulse radiation, and is better than traditional heating mode.
The USB communication interface has strong versatility, reliable and uninterrupted communication, and supports self-recovery connection function.
Automatically switch the two-channel atmosphere flow, with fast switching speed and short stabilization time. At the same time, a protective gas input is added.
The software is simple and easy to operate.

Cooling Differential Scanning Calorimeter Technical Parameters

MODEL	DSC3000C	DSC3000U
Temperature range	-40°C~ 600°C	-70°C~ 600°C
Temperature resolution	0.01°C	0.01°C
Temperature fluctuation	±0.01°C	±0.01°C
Temperature repeatability	±0.1°C	±0.1°C
Heating rate	0.1~100°C/min	0.1~100°C/min
Cooling rate	0.1~20°C/min	0.1~40°C/min
Constant temperature time	program setting ≤24h	program setting ≤24h
Temperature control method	heating scan, constant temperature multi-stage, cooling scan (automatic program control)	heating scan, constant temperature multi-stage, cooling scan (automatic program control)
DSC range	0~±800mW	0~±800mW
DSC resolution	0.01uW	0.01uW
DSC accuracy	0.001mW	0.001mW
Power supply	AC220V/50Hz or customized	AC220V/50Hz or customized
Atmosphere control gas	nitrogen, oxygen (automatically switches)	nitrogen, oxygen (automatically switches)
Gas flow	0-300mL/min	0-300mL/min
Gas pressure	0.3MPa	0.3MPa
Display mode	24bit color, 7-inch LCD touch screen display
Data interface	standard USB interface
Parameter standard	equipped with standard materials (indium, tin, lead), users can calibrate the temperature
Note	The instrument has multiple sets of thermocouples, one set of test sample temperature, and one set of test instrument internal ambient temperature.
