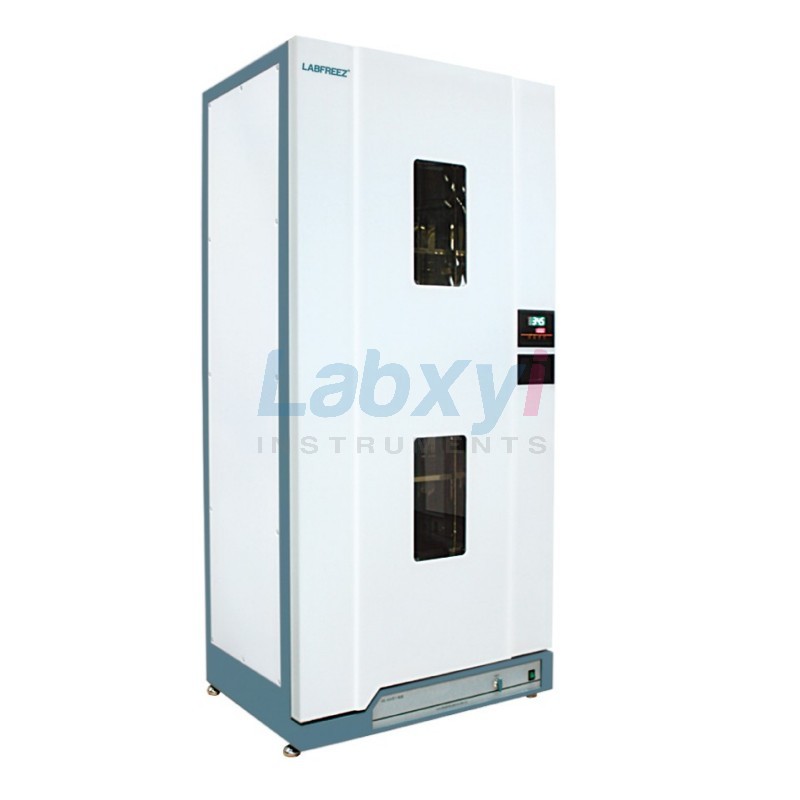

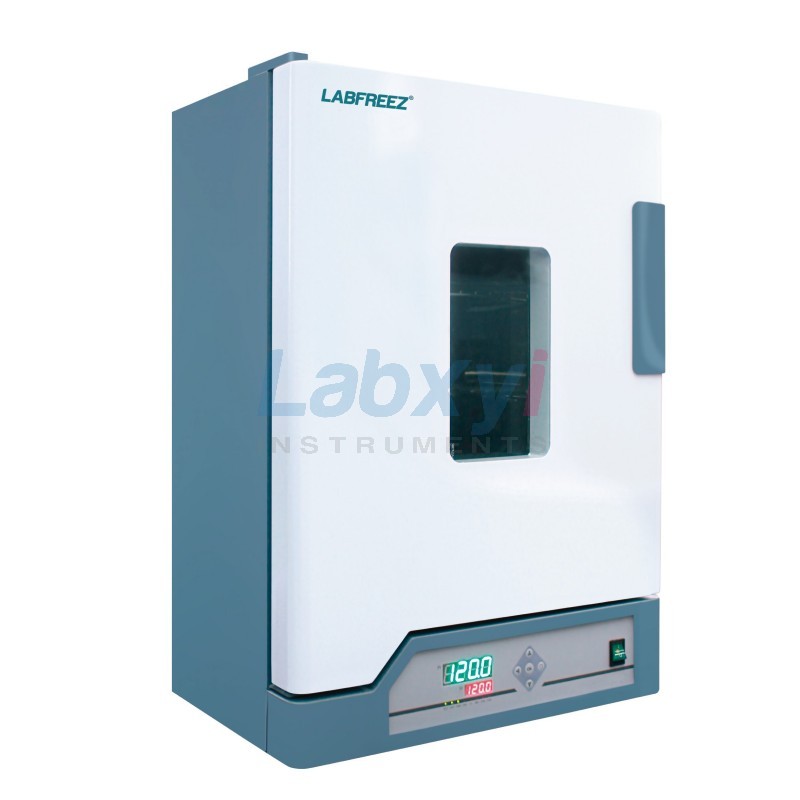

DO-GFL Series Blast Dry Oven is suitable for electrical, electronics, instrumentation, materials, medicine, scientific research, production units; mainly used for drying items, baking, heat treatment, sterilization, curing, thermal insulation.

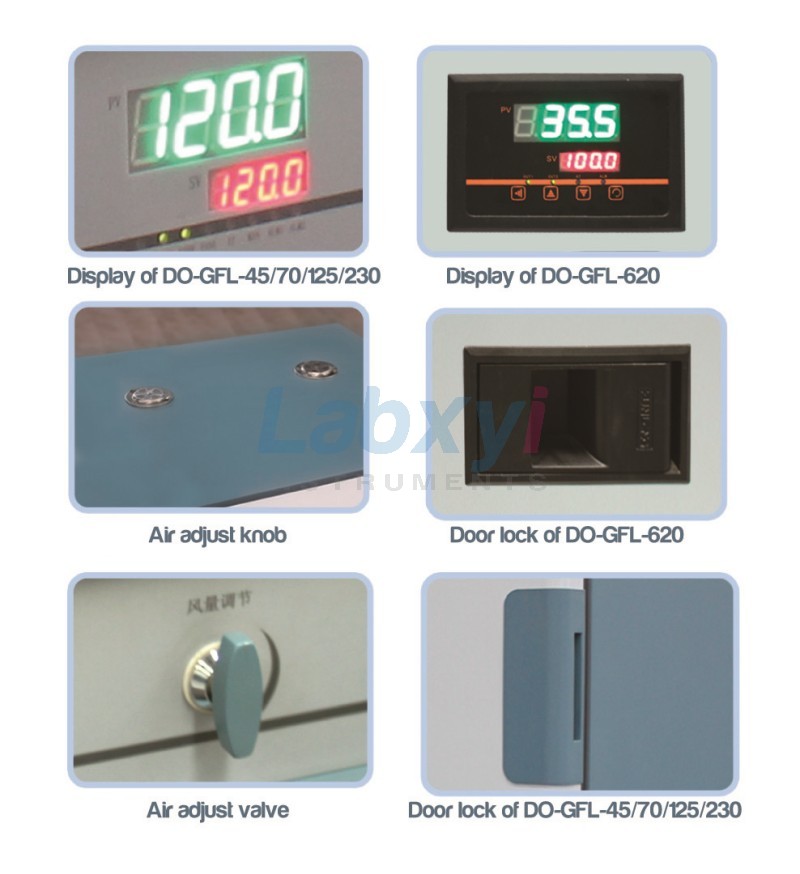

Features:
1, Vertical style streamlined shape lateral, laboratory space saving;
2, High-quality stainless steel mirror chamber;
3, Double layer glass windows;
4, Unique fan speed control function;
5, Backside Horizontal air supply;
6, Stainless steel heating pipe to improve efficiency;
7, High-clear digital display;
8, Touch elastic adjustable invisible door lock;
9, PID microcomputer control system, reservation power on/off;
10, Timer, parameter memory, sound and light alarm over-temperature and etc.
Main Parameters:
| Model |
DO-GFL-45 |
DO-GFL-70 |
DO-GFL-125 |
DO-GFL-230 |
DO-GFL-620 |
| Power supply |
220V/50HZ |
||||
| Temp. range (℃) |
RT+5-300 |
||||
| Temp. resolution (℃) |
0．1 |
||||
| Temp. fluctuation (℃) |
±1 |
||||
| Heating power（KW） |
1 |
1．55 |
2 |
3 |
4 |
| Chamber size (mm) |
350*300*400 |
420*350*460 |
500*400*630 |
600*500*750 |
800*500*1555 |
| Dimensions (mm) |
480*525*695 |
550*575*755 |
630*625*925 |
730*750*1100 |
965*750*1870 |
| Packing size (mm) |
595*600*810 |
665*650*870 |
745*700*1040 |
855*860*1230 |
1080*820*2050 |
| Shelf/load |
2pcs, 15kg/pc |
||||
| Timer |
1-9999 min |
||||
| Ambient temperature |
5 ~ 40℃ |
||||
| NW/GW (kg) |
36/42 |
47/54 |
60/68 |
87/118 |
210/254 |
Note: DO-GFL-230/620 has damper adjust knob, DO-GFL-45/70/125 is Wind cap regulation
Optional:
| Items | Function |
| LCD display | |
| Independent temperature limit controller | Temperature controlling& alarm when main controller fault. |
| RS485 interface | To be connected with computer |
| Bench-top printer | |
| Multi stage programmed temperature control |
