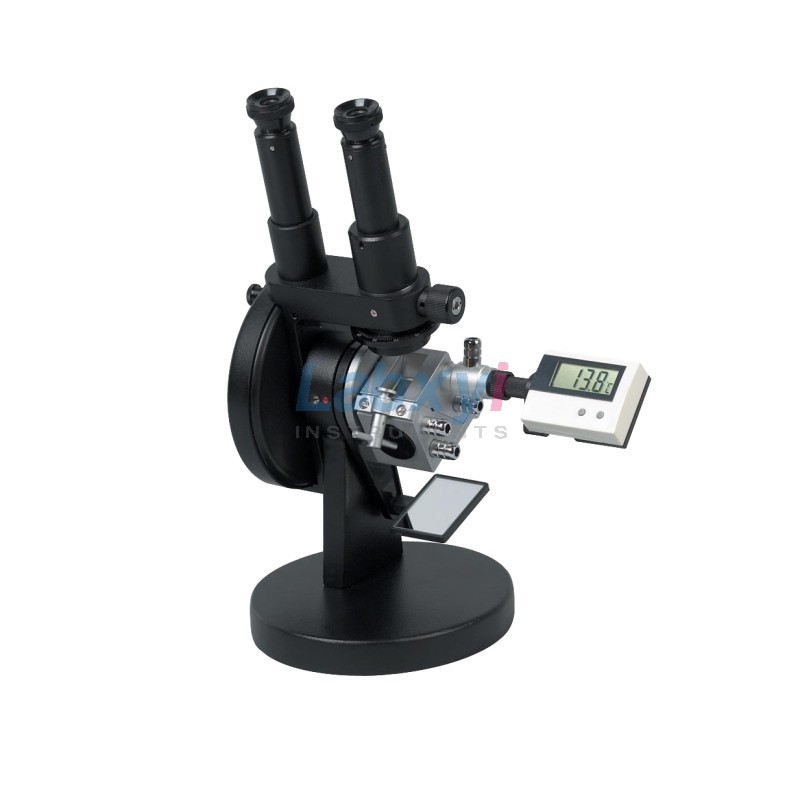

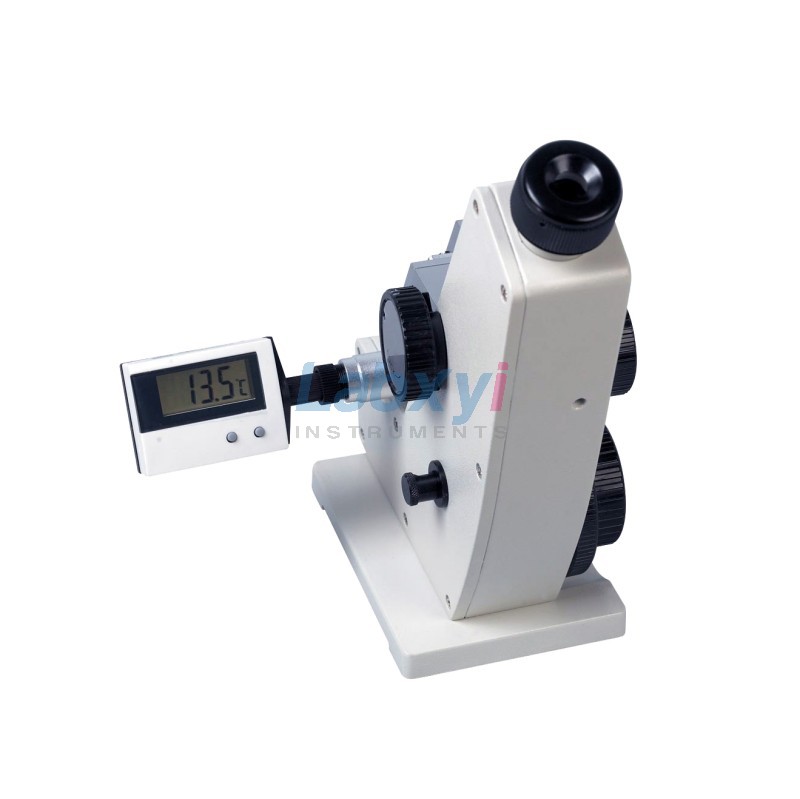

AR AR-2W
Characteristics
- Measurementof refractive index nD, average dispersion nF-nc of transparent or translucent liquid and solid substances, and mass fraction (Brix) of cane sugar solution.
- Widelyused in the field of sugar, pharmaceutical, beverage, petroleum, food, chemical industries as well as research institutes and educational
- Prismis made of hard glass, abrasion
- Visualaim, optical index-plate
- Easyand
Specifications
| Parameters/Model | AR | AR-2W |
| Measuring range | Refractive index (nD): 1.3000-1.7000
Brix: 0-95% |
|
| Accuracy(nD) | ±0.0002(Estimate Reading) | ±0.0003（Estimate Reading) |
| Average dispersion indication | ±0.0005 | |
| Temperature display | Digital thermometer | |
| Observation mode | Monocular | Binocular |
| Weight (Gross) | 3kg | 4kg |
| Overall Dimensions | 270mm×180mm×370mm | 240mm×200mm ×390mm |
