Basic concepts

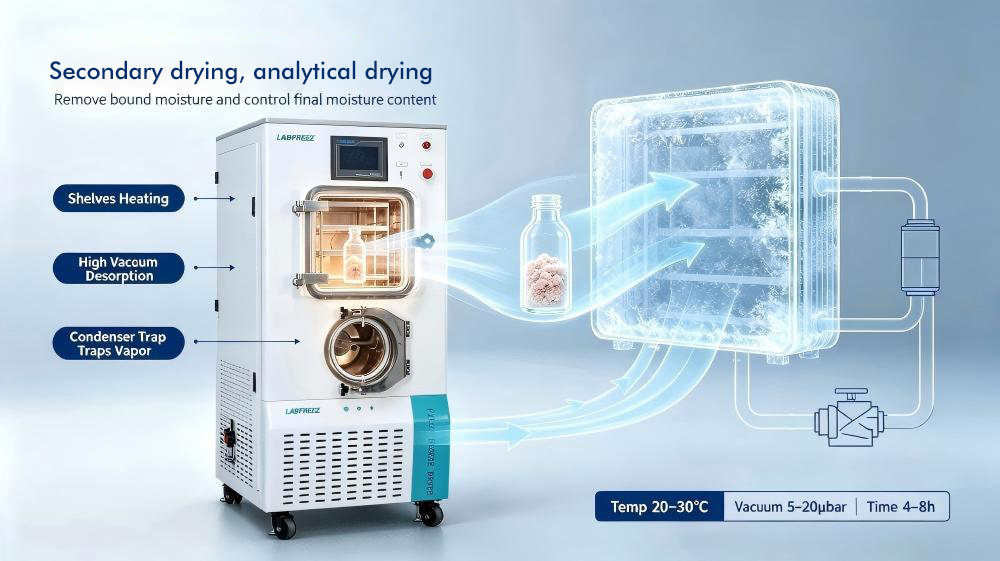

Primary drying: removes free ice from the material; Secondary drying = analytical drying, removes bound water, adsorbed water, and capillary bound water from the material, determining the moisture content of the finished product (generally required to be 1% to 3%).
The drying process ends when the material temperature returns to the set temperature of the shelf, the condenser load decreases significantly, and the vacuum level stabilizes without continuous venting.
First, pre-drying determination (conditions for entering secondary drying).
- Single drying endpoint confirmation
- Material probe temperature = shelf temperature (temperature difference < 1-2℃, maintain for 30-60 minutes)
- The vacuum curve is flat, with no periodic gas evolution.
- The condenser temperature stabilized with no increase, and the ice collection rate no longer increased significantly .
- System status: Vacuum unit (oil-sealed pump + Roots /molecular pump) is normal, condenser temperature is stable (generally ≤-60℃), and freeze dryer has no leaks.
- Step-by-step standard process flow
Step 1: Setting the shelf heating program ( most crucial step)
Rapid, one-time high-temperature heating is prohibited; a stepped heating method should be used.
1) Low temperature transition section: The shelf is slowly raised from the initial drying low temperature (generally -20℃ to 0℃) to 0℃ to 10℃, and kept at this temperature for 30 to 90 minutes.
2) Mid-stage heating: Raise to 20-30℃ (the general temperature for most drugs, culture media, and biological samples)
3) High-temperature maintenance period: 30-35℃ for heat-sensitive materials; no more than 40℃ for heat-resistant formulations.
Principle: Heating is provided by the shelf, which breaks the hydrogen bond adsorption between water molecules and material molecules, causing water molecules to desorb and turn into water vapor.
Step 2: Vacuum Control Mode (Two Commonly Used Modes)
- High vacuum constant vacuum mode (preferred for pharmaceutical/aseptic freeze drying)
The entire process maintains an extremely high vacuum (5–20 μbar), and the low-pressure environment significantly reduces the saturated vapor pressure of water, making it easier for bound water to evaporate and precipitate; no gas is added throughout the process.
- Partial pressure drying (for trace amounts of high-purity samples)
A small amount of dry, high-purity nitrogen gas (dew point < -70℃) is introduced to 100-300 μbar. The gas conducts heat to improve the uniformity of material heating and prevent local overheating and agglomeration. The nitrogen carries water vapor which is captured by the condenser.
Step 3: Analysis of water vapor migration and capture
Water vapor released from the material → is conveyed under vacuum inside the chamber → and then sublimates and solidifies into ice on the surface of the cryogenic condenser; the vacuum pump only removes non- condensable gases (air, trace amounts of inert gas), and hardly handles water vapor, thus protecting the pump oil.
The condenser is kept at ≤-55℃ throughout the process to ensure 100% water vapor capture and prevent backflow that could contaminate the product.
Step 4: Secondary drying and constant temperature insulation stage ( duration depends on the amount of material packed)
sheet
| Sample loading status | Secondary drying at a constant temperature (25-30℃) |
| Thin-layer samples, vials of thin-layer solutions | 2-4 hours |
| Conventional vial preparations and dry powder culture media | 4～8h |
| Thick-layer materials, palletized mass production, block-shaped freeze-dried products | 8～16h |
Step 5: Determining the endpoint of secondary drying (using a combination of three methods).
- Vacuum decay method (most commonly used)
Close the valve between the freeze-drying chamber and the vacuum pump, let it stand for 5 to 10 minutes, and if the vacuum rise rate inside the chamber is <3 to 5 μbar/min, it is determined that the bound water has been basically completely desorbed.
- Online water vapor detection: Water vapor partial pressure values approach 0 and remain unchanged for a long time.
- Experience + Sampling Evidence: Insulation Duration Corresponding to Historical Moisture Content Standards for the Same Process
Step 6: After the secondary drying is completed, break the vacuum and remove the product from the box.
- Cool the shelves to room temperature (20-25°C) to prevent the hot finished products from absorbing moisture from the air.
- Sterile dry nitrogen was introduced to break the vacuum, and the pressure inside the chamber was restored to normal.
- The vacuum valve is closed, isolating the freeze dryer from the condenser and vacuum pump unit.
- Discharge by opening the door and sealing by pressing the stopper ( for freeze-drying vials , the stopper is fully pressed inside the chamber, eliminating the need to open the door to allow air exposure).
III. Key Process Control Points (Applicable to Culture Media/Biological Products)
- Heating rate: ≤0.5～1℃/min. Too rapid a rate will cause material to collapse and dry product to disintegrate.
- The secondary drying temperature should not be too high: protein and live bacteria culture media are easily inactivated and deteriorated above 40℃.
- The entire system must meet the leakage rate requirements; leaks will introduce moisture from the air, resulting in excessive moisture content in the finished product.
- the first drying step is not thorough enough, and the second drying step is performed : the ice layer blocks the heat, the second drying process is extremely inefficient, and the moisture content will never meet the requirements.
- Summary of a simplified, complete workflow
Initial drying endpoint confirmation → Stepped heating of shelf → Maintaining high vacuum to decompose water → Water vapor captured by condenser → Constant temperature long-term decomposition and heat preservation → Vacuum decay test to determine endpoint → Shelf cooling → Vacuum breaking with sterile nitrogen → Discharge/Inner chamber pressure sealing
