CTI-FRE Series Ceramic Flatness, Right Angle, Edge Straightness Ceramic Comprehensive Tester conforms to the requirements of GB/T3810.2-2016 “Ceramic Tiles – Inspection of Dimensions and Surface Quality”. It is an ideal testing instrument for ceramic tile manufacturers and quality inspection departments.
Overview
CTI-FRE Series Ceramic Flatness, Right Angle, Edge Straightness Ceramic Comprehensive Tester is used to determine the dimensions and shape characteristics of various wall tiles and floor tiles. The parameters it measures include edge straightness, right angle, flatness, and other indicators. During testing, only the test piece needs to be placed once to quickly and accurately measure the data for these six indicators.
This product conforms to the requirements of the ceramic tile standard GB/T3810.2-2016 “Ceramic Tiles – Inspection of Dimensions and Surface Quality”. It is an ideal testing instrument for ceramic tile manufacturers and quality inspection departments.
Main Technical Parameters
1. Measurement Accuracy : ±0.01 mm
2. Measurement Range :
40 ～ 600×600 mm ,
40 ～ 800×800 mm,
40 ～ 1000×1000 mm ;
3. Standard plate optional;
4. Digital display meter can be selected according to user requirements.
Principle and Structure

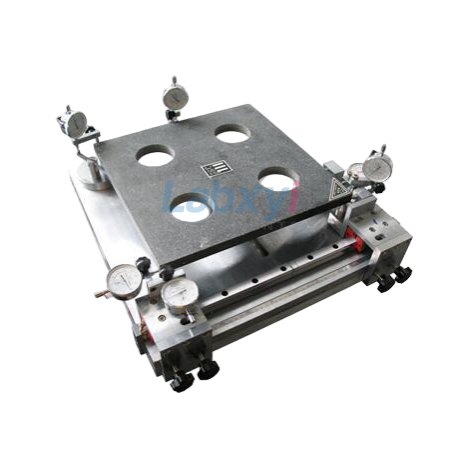

CTI-FRE Series Ceramic Flatness, Right Angle, Edge Straightness Ceramic Comprehensive Tester consists of a support plate, movable left and right supports forming a rectangular coordinate system. Three support pins of equal height on the plate, resembling a standard plate with a similar shape and ideal dimensions to the ceramic tile, are used for detection. The instrument reading is adjusted to the appropriate position and recorded. Then, the ceramic tile being tested is used instead of the standard plate, and six parameters are measured without moving the measuring points. The left, right, and central measuring supports can be moved parallel to each other on the plate to form spatial coordinates at different positions, accommodating the measurement of ceramic tiles of different sizes.
Standard plates for ceramic tile testing (optional)
Specifications and features:
1000×1000, 800×800, 600×600, 300×600, 500×500, 400×400, 300×300, 200×200, 300×200, 300×152, 250×250, 152×152, 240×60 (mm)
can be customized according to customer requirements.
The above-mentioned standard plate has an accuracy better than 0.1mm and comes with a metrological verification certificate.
