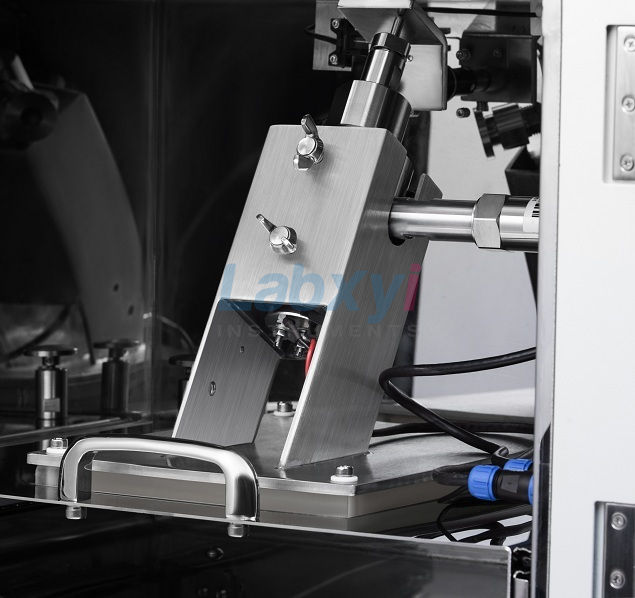

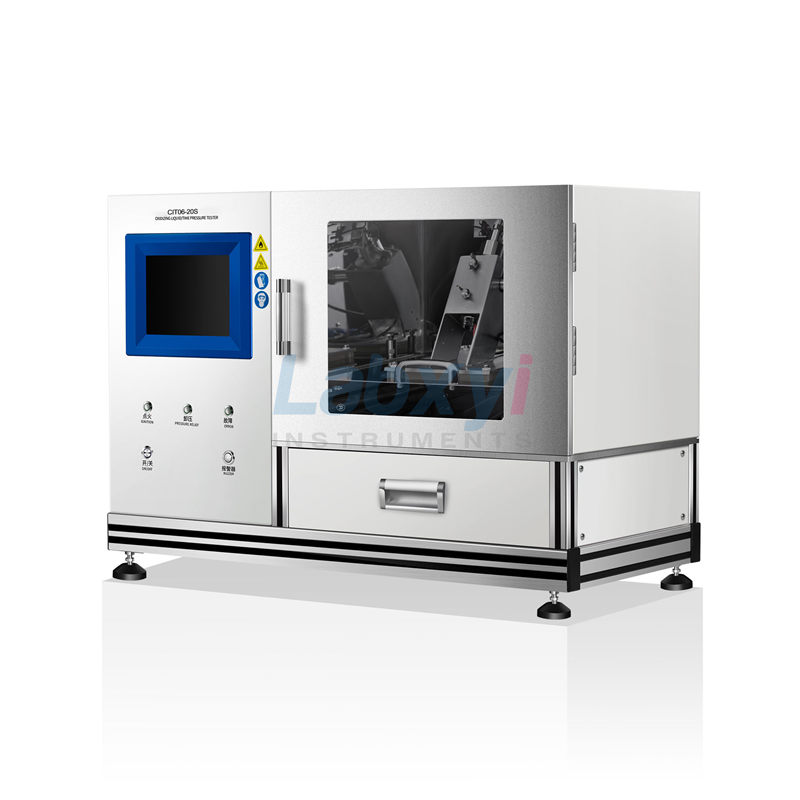

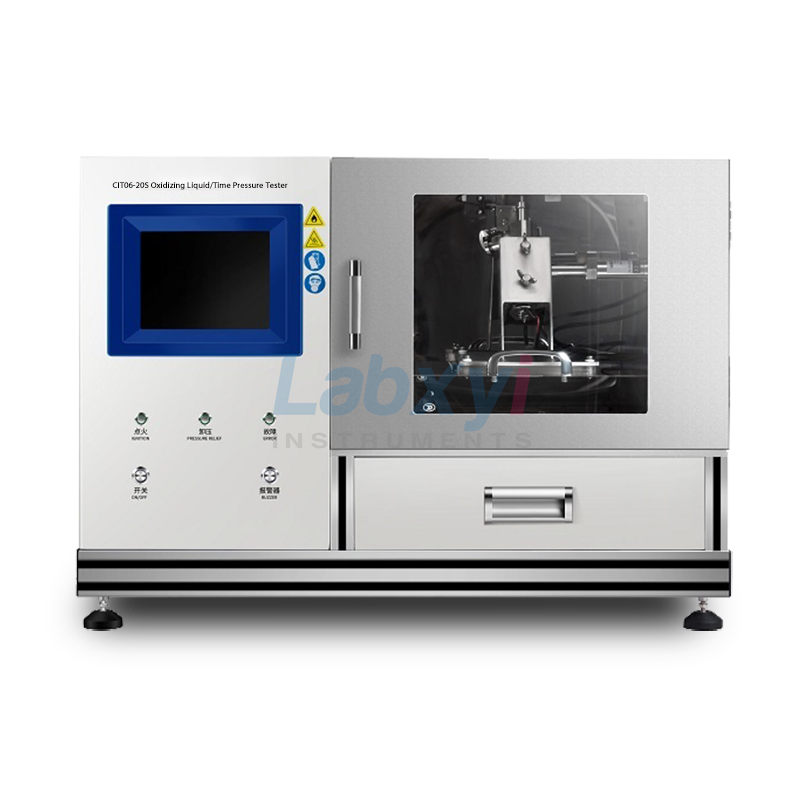

CIT06-20S Oxidizing liquid and time pressure tester is used to determine the potential of a liquid substance to increase the burning rate or burning intensity of a combustible substance when it is completely mixed with the combustible substance; it can also be used to determine the effect of a substance on ignition under closed conditions in order to determine whether the substance will be used in normal commerce. Whether ignition at the pressures likely to be achieved in the package results in a deflagration of explosive violence.
CIT06-20S Oxidizing liquid and time pressure tester Comply with 34.4.2 Test O.2 of the United Nations Recommendations on the Transport of Dangerous Goods, Manual of Tests and Criteria: Test of oxidizing liquids and “Dangerous Goods – Test Methods for Oxidizing Liquids”;
CIT06-20S Oxidizing liquid and time pressure tester Comply with the United Nations Recommendations on the Transport of Dangerous Goods, Manual of Tests and Criteria, 11.6.1 Test 1(c)(1): Time/Pressure test, 12.6.1 Test 2(c)(1): Time/Pressure test, 23.4.1 Test C.1: Time/pressure test and “Dangerous Goods Time/Pressure Test Method”.
Product Features
- Using embedded processor, Windows CE operating system
- 8-inch LCD touch screen, which can display test status in real time
- Automatic detection function of pressure vessel air tightness (by detecting the initial pressure drop rate)
- With ignition sound and light alarm function
- The stainless steel seamless welded inner tank, pressure vessel, and pressure sensor are corrosion-resistant, high-temperature-resistant, and high-pressure-resistant.
- Automatic timing and high-precision pressure detection system to detect and display pressure changes in real time
- It has an automatic pressure relief device. After the test, it will automatically pierce the explosion-proof disc and release the pressure.
- Automatically draw pressure curves
- It has the function of collecting reaction residues and preventing splash liquid to avoid external contamination of samples.
- Remote control ignition to ensure the safety of experimenters
- Test process is fully automated, without manual intervention, and supports parameter setting, data storage, report viewing and other functions.
Product parameters
| MODEL | CIT06-20S CIT06-20S Oxidizing liquid and time pressure tester |
| Working environment | -5 °C ~ 45 °C, <95% RH |
| Pressure Sensor response capability | within 5ms response from 0MPa-3MPa
vessel lumen pressure changes |
| Pressure measuring range | 0-5MPa |
| Pressure measurement accuracy | ± 0.1% FS |
| heating | Electronic ignition |
| the disk burst pressure | 2.5MPa ± 5% |
| standard time range | 0 ~ 60s |
| Timing accuracy | ± 1ms |
