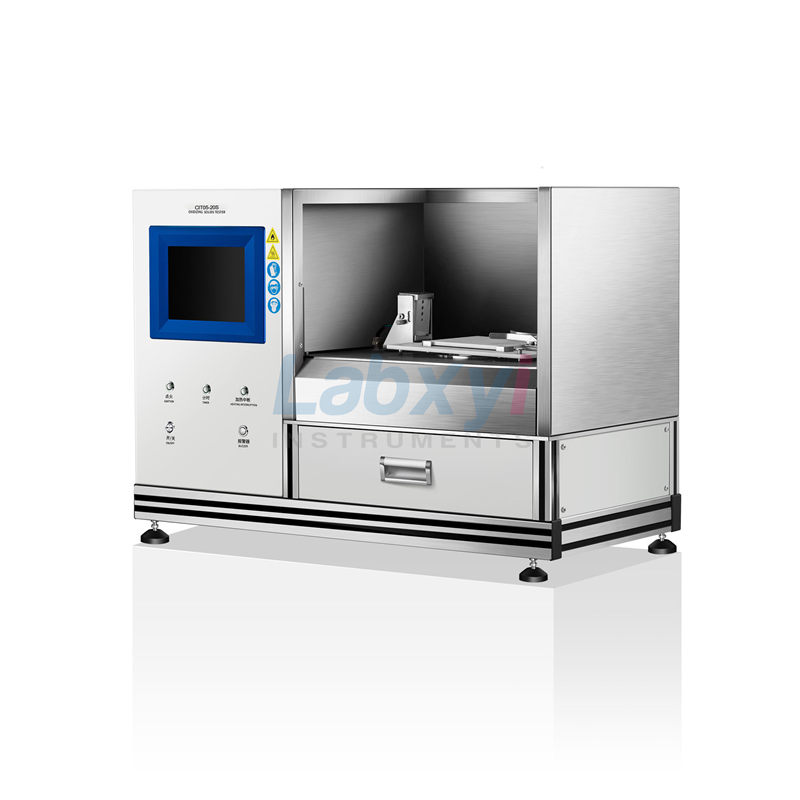

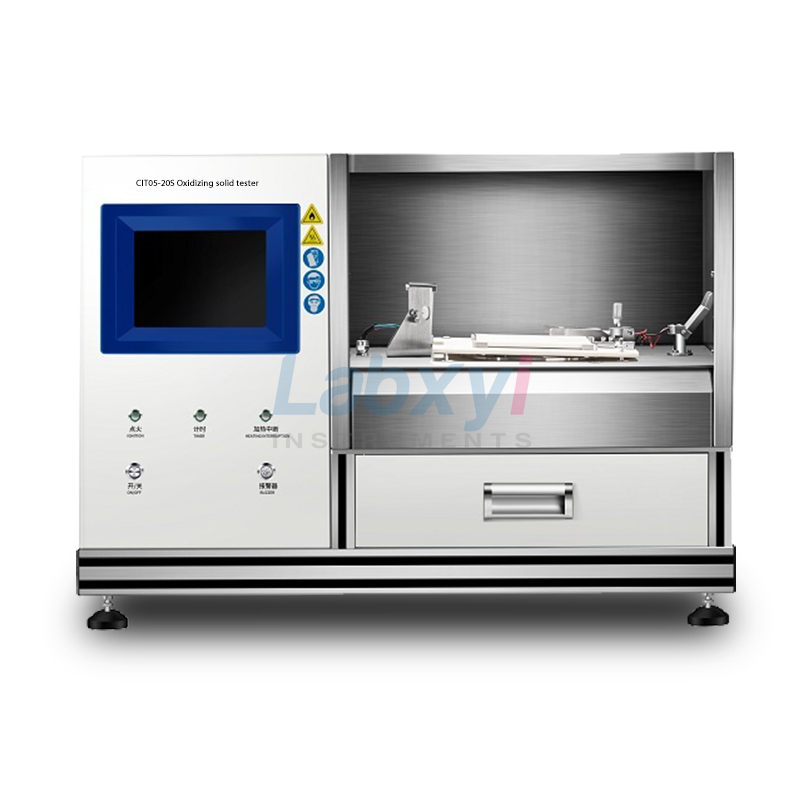

CIT05-20S Oxidizing Solids Tester on the Transport of Dangerous Goods

CIT05-20S oxidizing solids tester is measuring the potential of the sample which completely mixed with some kind of combustible material to increase burning rate of combustible substances or intensity of combustion, compare the combustion test time and the standard mixture, and then confirm the packing group, suitable for the solid material.

CIT05-20S oxidizing solids tester in line with GB / T 21617-2008 “dangerous oxidizing solid test method”; test O.3: United Nations “on the Recommendations on the Transport of Dangerous Goods, Tests and Criteria Manual” 34.4.1 Test O.1 accord : alternative test oxidizing solids (TDG and the GHS oxidizing solid test and standard revised proposal).

 Product Features

• embedded processor, Windows CE operating system;
• 8-inch LCD touch screen, display the test status in real time;
• compatible with existing standards and O.3 O.1 new standards proposals;

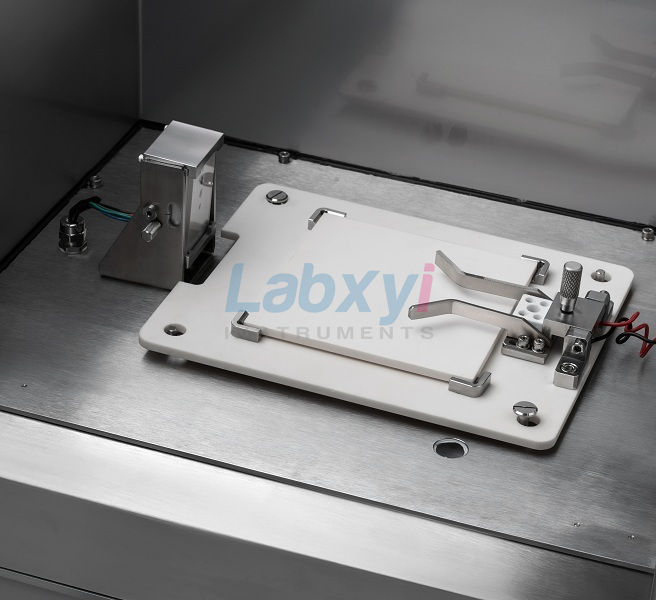

• Automatic photoelectric detection technology, reliable detection of combustion phenomena;
• Fully automatic weighing scales detection, mass loss recorded automatically burn;

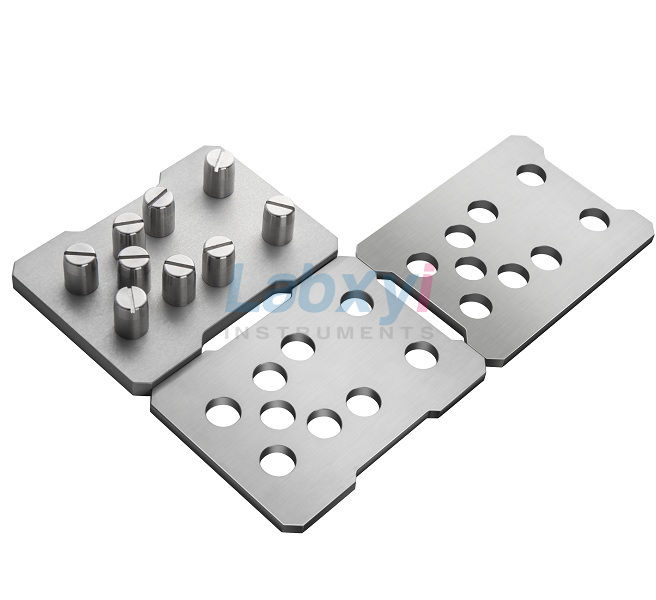

• with standard wire making molds;
• automatically detects wire fuse and provide sound and light alarm;
• High temperature and humidity detection, effective collection of temperature and humidity;
• during the test, real-time display run time, test animation image;
• testing process fully automated, without human intervention, support parameter setting, data storage, viewing reports.
• equipped with temperature and humidity module, real-time monitoring of temperature test, humidity.

  Product parameters
